Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork Zoom
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano STePS BTE6010 418Wh, Capacity: 418Wh -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061, size: 46cm, Internal cable routing, hydro-formed tubes, heat-treated
Suspension Fork
Zoom 187D AMS HLO, Travel: 65mm, lock-out
Drivetrain
Rear Derailleur
Shimano RDM310, 8 speed
Shift Levers
Shimano Revo Shift SLR45, 1×8
Crank
Shimano FCE5010 , Chainring: 44t, length: 175mm
Chain
KMC Z8, 8 speed
Pedals
Wellgo C169T DU,
Wheels
Front Hub
Formula DC20 , QR, 100mm
Rear Hub
Formula DC22, QR, 135mm
Rims
Remerx Dragon 719 , 32h
Tires
Impac SmartPac+RT, 28×1.6?
Brakes
Brakes
Clarks Clout, Disc brakes: 160/160mm
Cockpit
Stem
HBC, Length: 90mm, 31.8mm
Handlebar
HBC, Width: 660mm, bended, 31.8mm
Headset
Neco 386E,
Seat
Saddle
HBC, Rails: Cr-Mo
Seatpost
HBC, Length: 350mm, 31.6mm
Motor & Battery
Motor
Shimano STePS DUE5000 , Power 250W, max torque: 40Nm, max support up to 200%
Battery
Shimano STePS BTE6010 418Wh, Capacity: 418Wh
Fit data

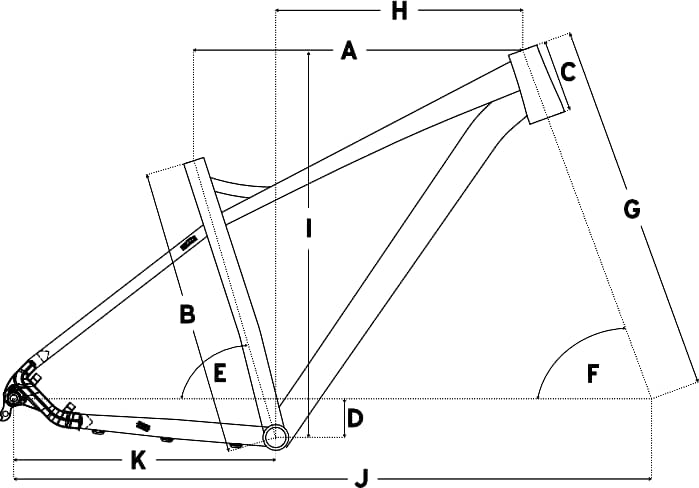

Geometry
Numbers for sizing and ride feel.
| Size | 46cm |
|---|---|
| Wheels | 700 |
| Rider Min Height | 120 cm |
Model Overview
E-City is part of the Head E E City model. HEAD released 1 e-bike variation of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
E-City components
Fork
The Zoom is included from the factory. It has a travel distance of 65mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the E-City model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. HEAD E-City has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
