Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork Zoom
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano STePS BTE6010 418Wh, Capacity: 418Wh -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061, size: 46cm, Internal cable routing, hydro-formed tubes, heat-treated
Suspension Fork
Zoom 187D AMS HLO, Travel: 65mm, lock-out
Drivetrain
Rear Derailleur
Shimano RDM310, 8 speed
Shift Levers
Shimano Revo Shift SLR45, 1×8
Crank
Shimano FCE5010 , Chainring: 44t, length: 175mm
Chain
KMC Z8, 8 speed
Pedals
Wellgo C169T DU,
Wheels
Front Hub
Formula DC20 , QR, 100mm
Rear Hub
Formula DC22, QR, 135mm
Rims
Remerx Dragon 719 , 32h
Tires
Impac SmartPac+RT, 28×1.6?
Brakes
Brakes
Clarks Clout, Disc brakes: 160/160mm
Cockpit
Stem
HBC, Length: 90mm, 31.8mm
Handlebar
HBC, Width: 660mm, bended, 31.8mm
Headset
Neco 386E,
Seat
Saddle
HBC, Rails: Cr-Mo
Seatpost
HBC, Length: 350mm, 31.6mm
Motor & Battery
Motor
Shimano STePS DUE5000 , Power 250W, max torque: 40Nm, max support up to 200%
Battery
Shimano STePS BTE6010 418Wh, Capacity: 418Wh
Fit data

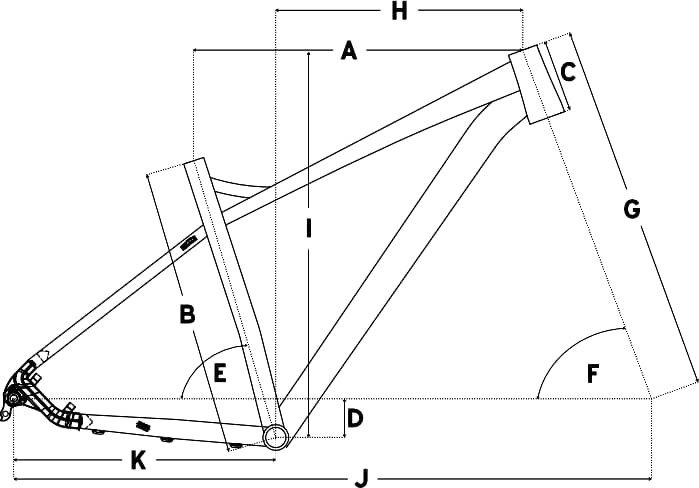

Geometry
Numbers for sizing and ride feel.
| Size | 46cm |
|---|---|
| Wheels | 700 |
| Rider Min Height | 120 cm |
Model Overview
E-City is a Head E E City model. There are 2 e-bikes that carry this model name.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the Zoom model. The travel on this model is 65mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the E-City model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
