Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 80mm -
Fork Zoom
-
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061, size: 34cm, Internal cable routing, hydro-formed tubes, heat-treated
Suspension Fork
Zoom HL CH-565D AMS, Travel: 80mm
Drivetrain
Rear Derailleur
S-Ride RD-M200 , 8 speed
Shift Levers
S-Ride SLR45, 1×8
Crank
Prowheel A10XPP , Chainring: 32, length: 152mm
Chain
KMC Z8, 8 speed
Pedals
Wellgo LU 895T DU,
Wheels
Front Hub
Formula DC20, QR, 100mm
Rear Hub
Formula DC22, QR, 135mm
Rims
Remerx 719-L, 36h
Tires
CST C-1040N, 24×2.1”
Brakes
Brakes
Tektro M280, Disc brakes: 160/160mm, mechanical
Cockpit
Stem
HBC, Length: 70mm, 31.8mm
Handlebar
HBC, Width: 560mm, 31.8mm
Headset
Neco H142, semi-integrated
Seat
Saddle
HBC VL-5130, Rails: Cr-Mo
Seatpost
HBC, Length: 350mm, 27.2mm
Fit data

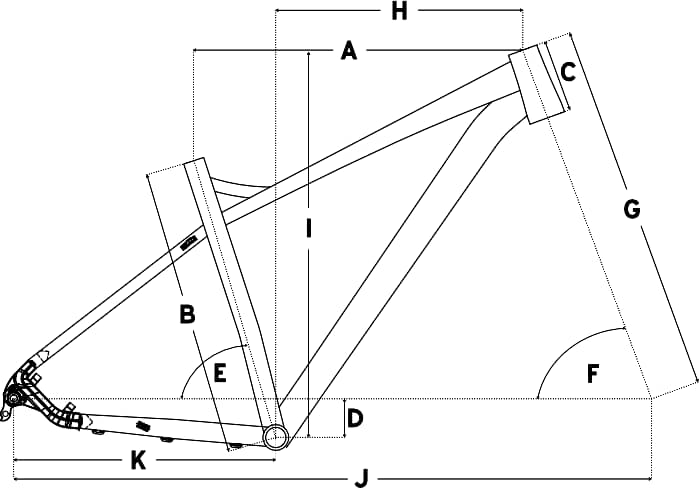

Geometry
Numbers for sizing and ride feel.
| Size | 34cm |
|---|---|
| Wheels | 24" |
