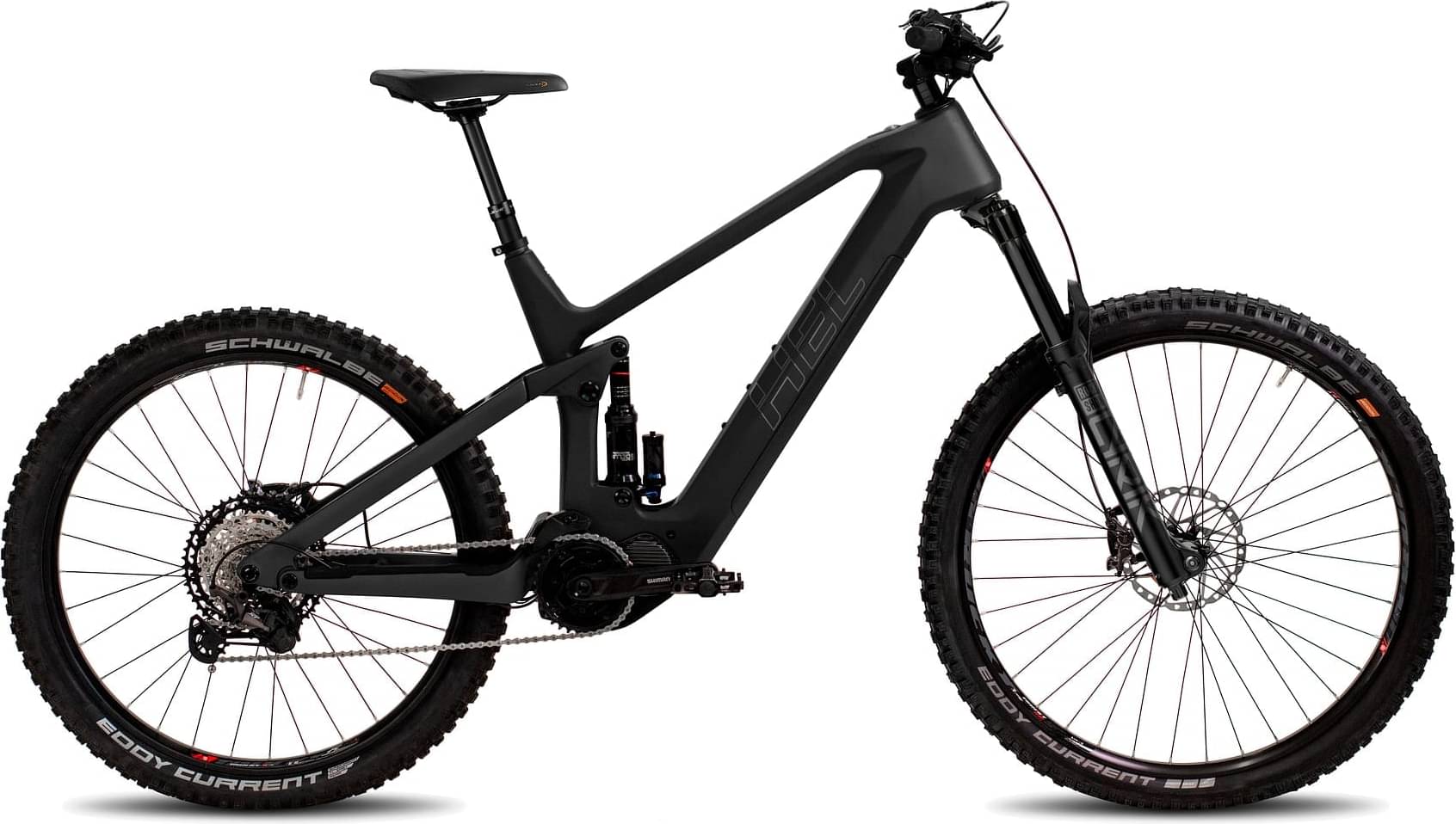

helkama Carbon X 12sp 29/27.5” EP801 2025
2025 E-bike
Estimate price |
7,910$
Weight | 27 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Fork RockShox Lyrik Select
-
Groupset XT -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Shimano EN806 -
Brakes Shimano XT Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
Rockshox Lyrik Select Charger RC 160mm
Drivetrain
Shift Levers
Shimano Deore XT SL-M8100
Crank
FSA CK-752 165mm / 34H
Chain
Sunrace CN12E
Wheels
Rims
Mach1 Trucky 30-622 36R black / 40-584 36R black
Tires
Schwalbe Eddy Current
Brakes
Brakes
Shimano XT BR-M8120/BL-T8100 4-Piston 203mm
Brake Levers
Shimano
Cockpit
Stem
Fixed 35 mm
Handlebar
Aluminium 35/780 mm
Seat
Saddle
Selle Royal
Motor & Battery
Motor
Shimano
Battery
Shimano EN806
Charger
Shimano E8004
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.324 mm |
| Bottom Bracket Height | 349 mm | 349 mm |
| Front Center | 790 mm | 830 mm |
| Rake | 46 mm | 46 mm |
| Trail | 124 mm | 124 mm |
| Stack | 624.5 mm | 647.2 mm |
| Reach | 459.3 mm | 489 mm |
| Top Tube Length | 610 mm | 650.4 mm |
| Seat Tube Angle | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 457 mm |
| Head Tube Angle | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 135 mm |
| Chainstay Length | 455 mm | 455 mm |
| Wheelbase | 1243 mm | 1284 mm |
| Bottom Bracket Drop | 25 mm | 25 mm |
| Wheels | 29" | 29" |
