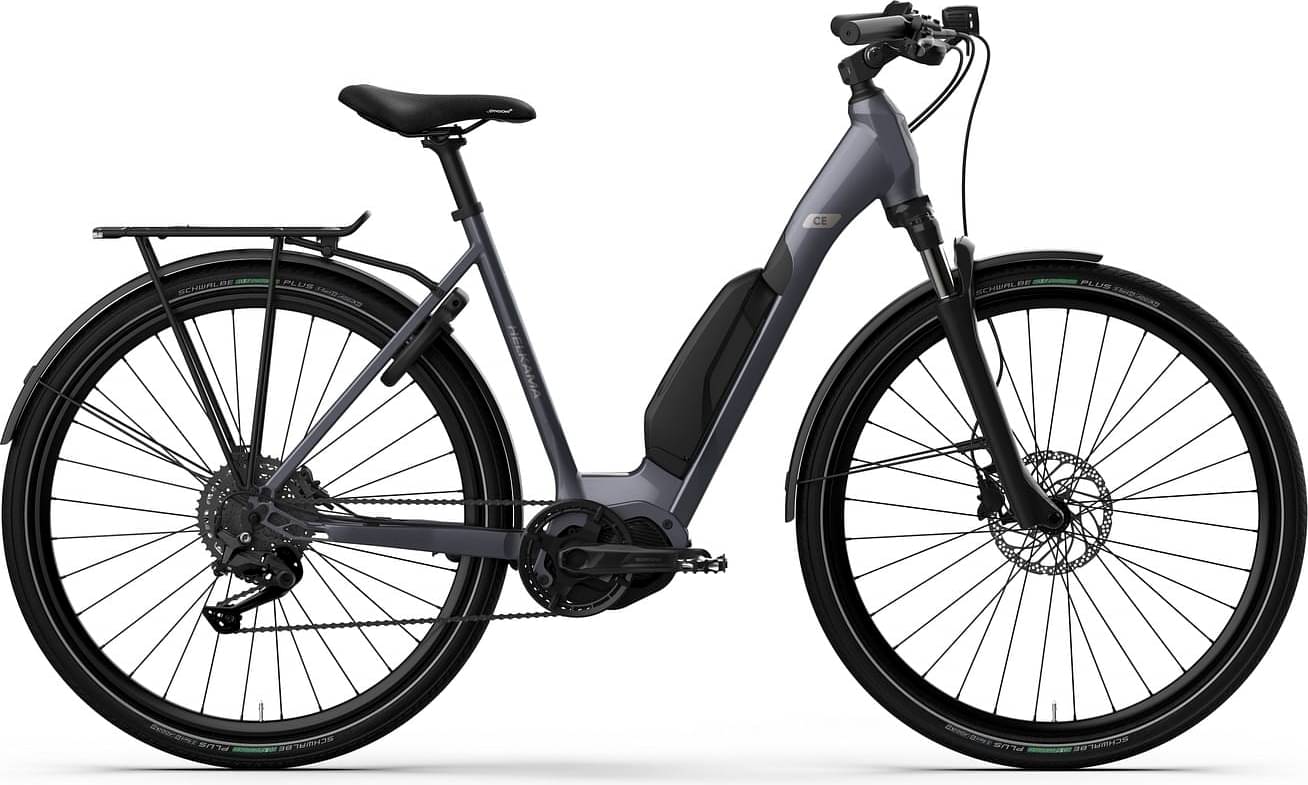

helkama CE 9sp 28” 2025
2025 E-bike
Estimate price |
3,663$
Weight | 24.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset CUES -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Shimano EN605 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Paragon Gold 65 mm
Drivetrain
Shift Levers
Shimano CUES RD-U4010 9v Linkglide
Chain
Shimano CN-LG500 Linkglide
Wheels
Rims
28"
Tires
Schwalbe Energizer plus with reflective sidewall
Brakes
Brakes
Shimano MT200 hydraulic disc brake 180 mm
Brake Levers
Shimano MT201
Cockpit
Stem
Ergotec Sepia XL, alu. adjustable 100 mm
Seat
Saddle
Selle Royal Shadow Plus
Seatpost
30,9 x 300 mm
Motor & Battery
Motor
Shimano
Battery
Shimano EN605
Charger
Shimano E6002
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm |
|---|---|---|
| Stack Reach Ratio | 1.549 mm | 1.526 mm |
| Front Center | 657 mm | 672 mm |
| Rake | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm |
| Stack | 635 mm | 644 mm |
| Reach | 410 mm | 422 mm |
| Top Tube Length | 605 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° |
| Head Tube Length | 145 mm | 155 mm |
| Chainstay Length | 460 mm | 460 mm |
| Wheelbase | 1109 mm | 1124 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Wheels | 700 | 700 |
