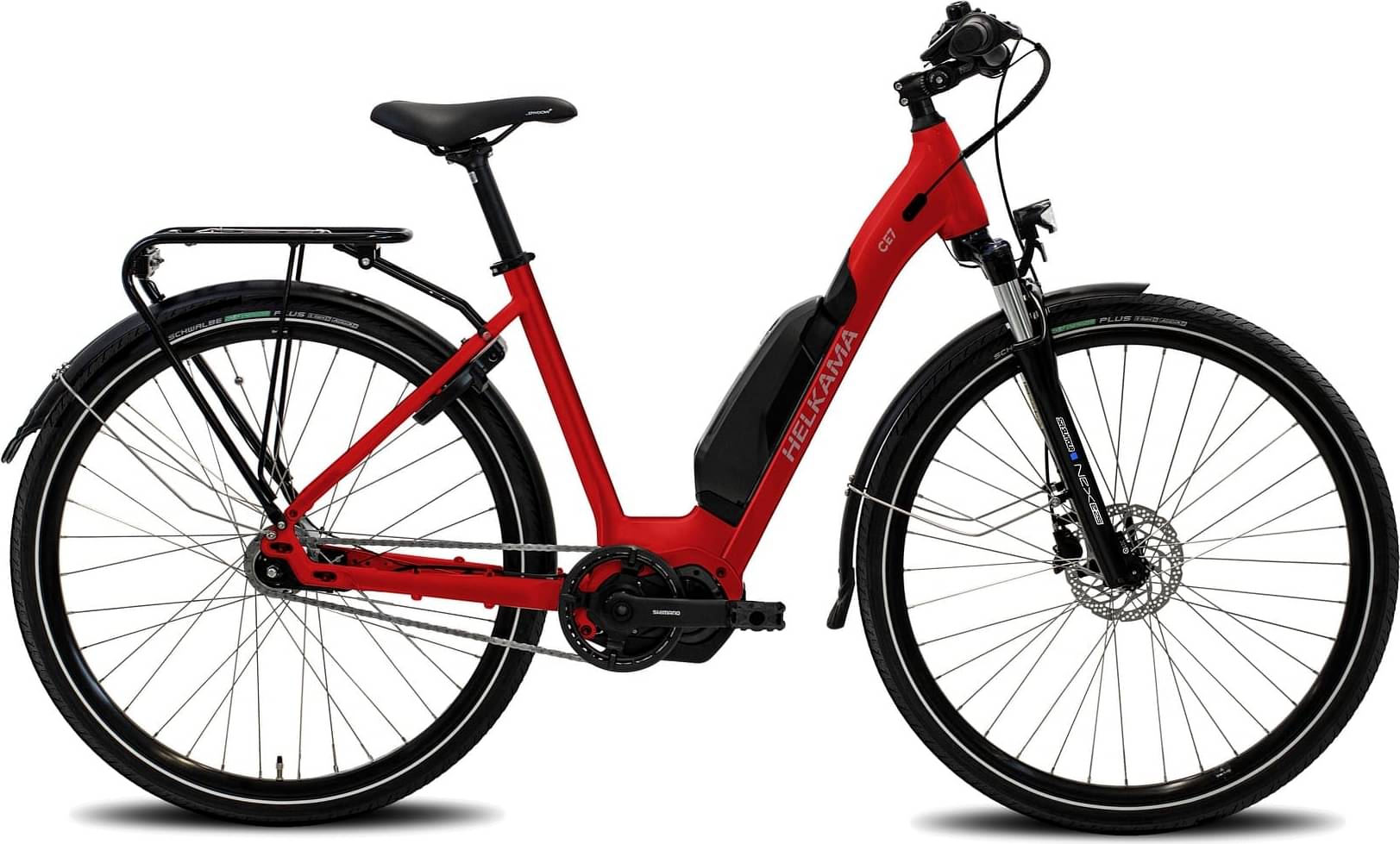

helkama CE7 7sp 28” 2025
2025 E-bike
Estimate price |
3,373$
Weight | 27 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Shimano E8010 -
Drivetrain Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntour NEX E25, 75 mm
Drivetrain
Shift Levers
Shimano Nexus 7 revo shift
Crank
Shimano FC-E6100 38H, 170 mm
Chain
KMC
Wheels
Rims
Mach1 21-622 36R black
Tires
Schwalbe Energizer Plus black
Brakes
Brakes
Shimano MT200 hydraulic disc brake
Brake Levers
Shimano MT201
Cockpit
Stem
Adjustable 110 mm
Handlebar
Aluminium 31,8/640 mm
Seat
Saddle
Selle Royal Shadow Plus
Seatpost
30,9 x 350 mm
Motor & Battery
Motor
Shimano
Battery
Shimano E8010
Charger
Shimano E8004
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm |
|---|---|---|
| Stack Reach Ratio | 1.499 mm | 1.48 mm |
| Front Center | 657 mm | 673 mm |
| Rake | 44 mm | 45 mm |
| Trail | 74 mm | 73 mm |
| Stack | 622 mm | 632 mm |
| Reach | 415 mm | 427 mm |
| Top Tube Length | 605 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° |
| Head Tube Length | 145 mm | 155 mm |
| Chainstay Length | 460 mm | 460 mm |
| Wheelbase | 1109 mm | 1125 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Wheels | 700 | 700 |
