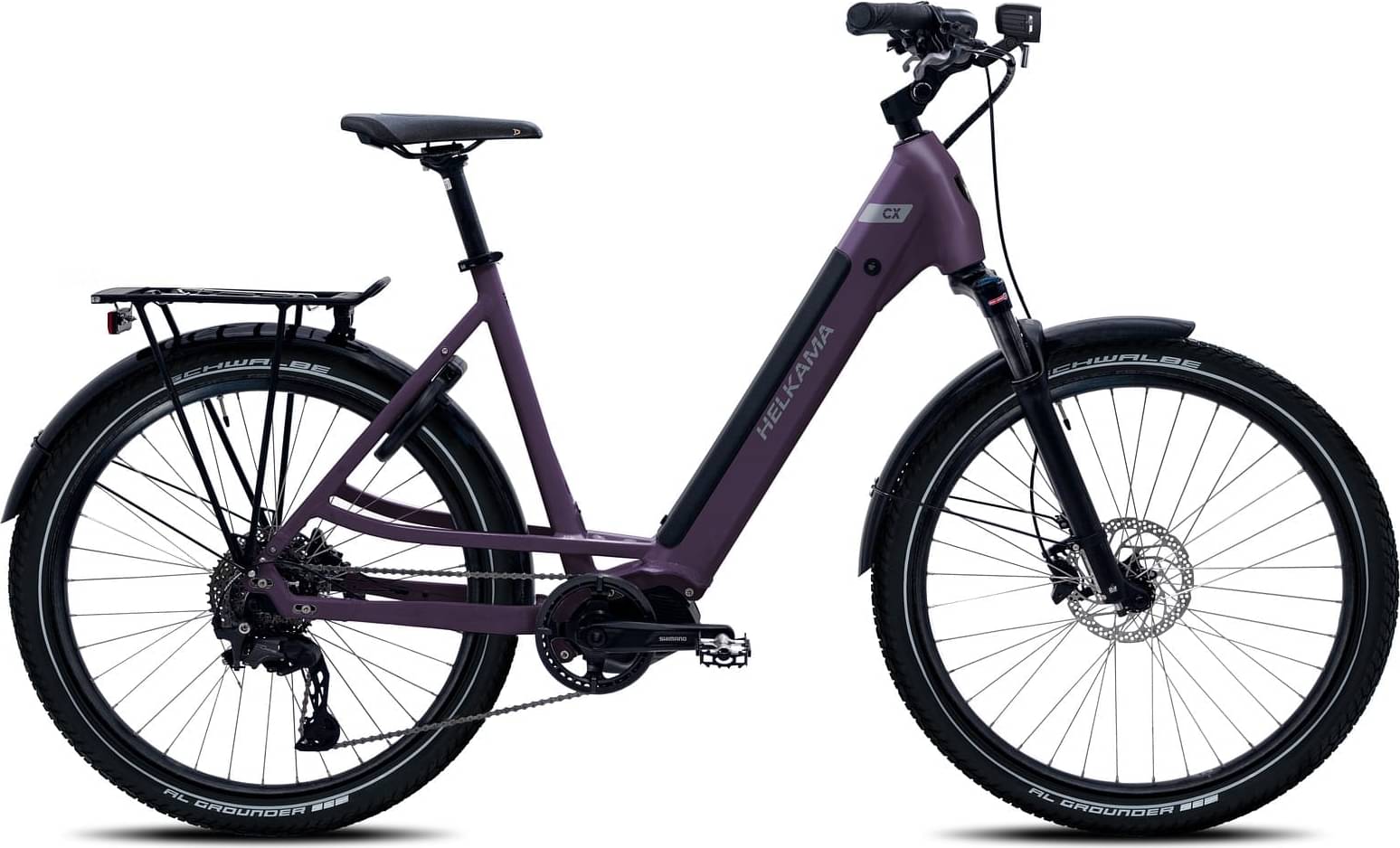

helkama CX 10sp 27.5″ 2025
2025 E-bike
Estimate price |
4,652$
Weight | 27.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Shimano EN805L -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntour XCR32 AIR, 80mm
Drivetrain
Shift Levers
Shimano Deore SL- M5130
Crank
Shimano FC-EM600 170mm, 38T
Chain
Shimano CN-LG500 Linkglide
Wheels
Rims
Mach 1 Trucky 30-584 32H, musta
Tires
Schwalbe Al Grounder with reflective sidewall
Brakes
Brakes
Shimano MT410 hydraulic disc brake 180mm
Brake Levers
Shimano MT-401
Cockpit
Stem
Ergotec Sepia XL, alu. adjustable 100 mm
Handlebar
Ergotec Lady Town 31,8/640mm
Seat
Saddle
Selle Royal Lookin Evo Athletic
Seatpost
30,9 x 350 mm
Motor & Battery
Motor
Shimano
Battery
Shimano EN805L
Charger
Shimano E8004
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm |
|---|---|---|
| Stack Reach Ratio | 1.506 mm | 1.485 mm |
| Front Center | 711 mm | 727 mm |
| Rake | 45 mm | 46 mm |
| Trail | 78 mm | 77 mm |
| Stack | 652 mm | 661 mm |
| Reach | 433 mm | 445 mm |
| Top Tube Length | 620 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 500 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 175 mm | 185 mm |
| Chainstay Length | 465 mm | 465 mm |
| Wheelbase | 1170 mm | 1186 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 650 | 650 |
