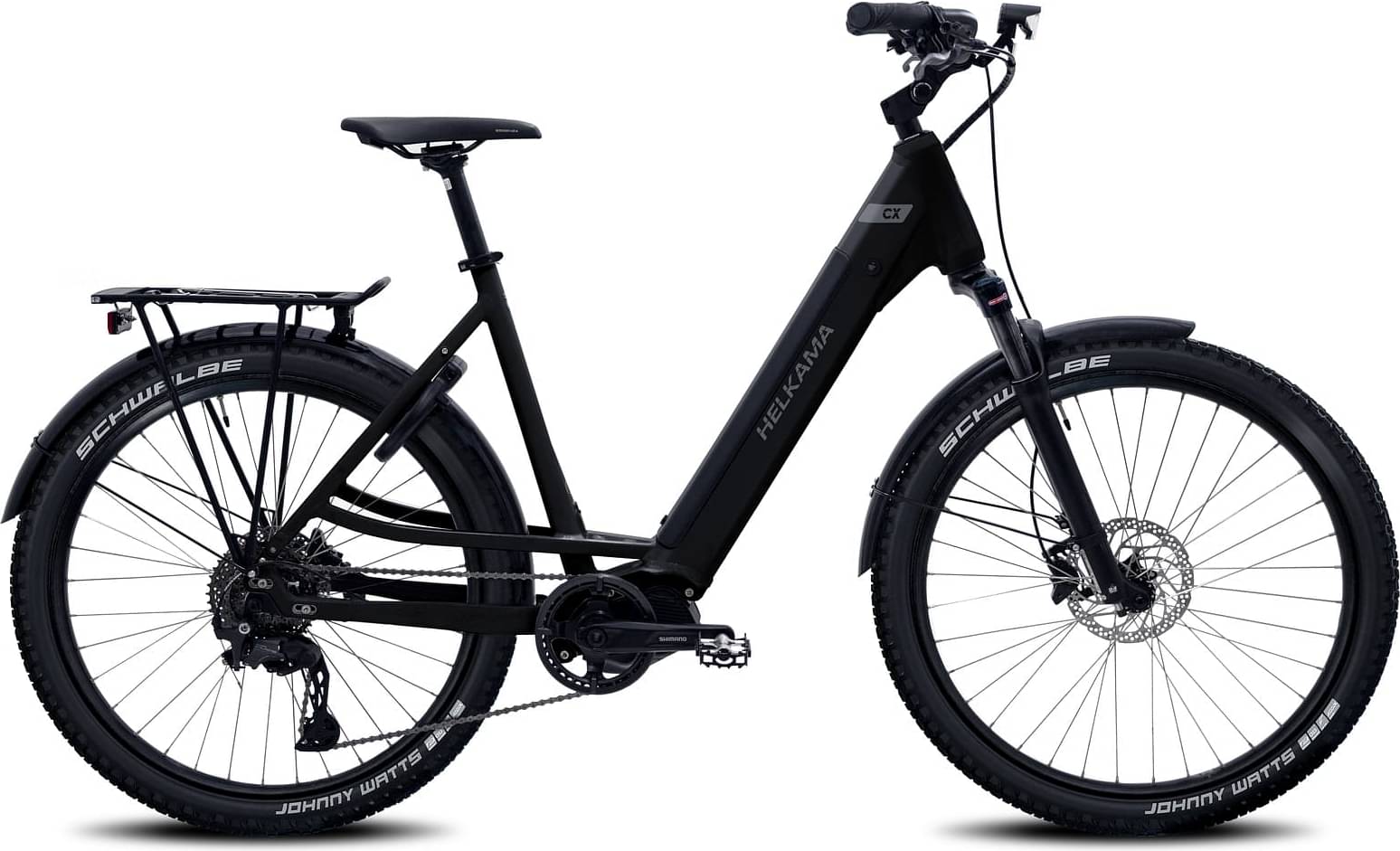

helkama CX 10sp 28” 2025
2025 E-bike
Estimate price |
4,536$
Weight | 28 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Groupset CUES -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Shimano EN805L -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntor XCR32 AIR, 80mm
Drivetrain
Shift Levers
Shimano SL-U6000-10
Crank
Shimano FC-EM600 170mm/CR-ET600 38T
Chain
Shimano CN-LG500 Linkglide
Wheels
Rims
Mach1 25-584 36R
Tires
Schwalbe Johnny Watts
Brakes
Brakes
Shimano MT410 hydraulic disc brake 180mm
Brake Levers
Shimano MT4100
Cockpit
Stem
Ergotec Sepia XL, alu. adjustable 100 mm
Handlebar
Ergotec Lady Town 31.8/ 640mm
Seat
Saddle
Selle Royal Essenza Athletic
Seatpost
30,9 x 350 mm
Motor & Battery
Motor
Shimano
Battery
Shimano EN805L
Charger
Shimano E8004
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm |
|---|---|---|
| Stack Reach Ratio | 1.506 mm | 1.487 mm |
| Front Center | 712 mm | 727 mm |
| Rake | 46 mm | 46 mm |
| Trail | 77 mm | 77 mm |
| Stack | 652 mm | 661.5 mm |
| Reach | 433 mm | 445 mm |
| Top Tube Length | 620 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 500 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 175 mm | 185 mm |
| Chainstay Length | 465 mm | 465 mm |
| Wheelbase | 1171 mm | 1186 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 650 | 650 |
