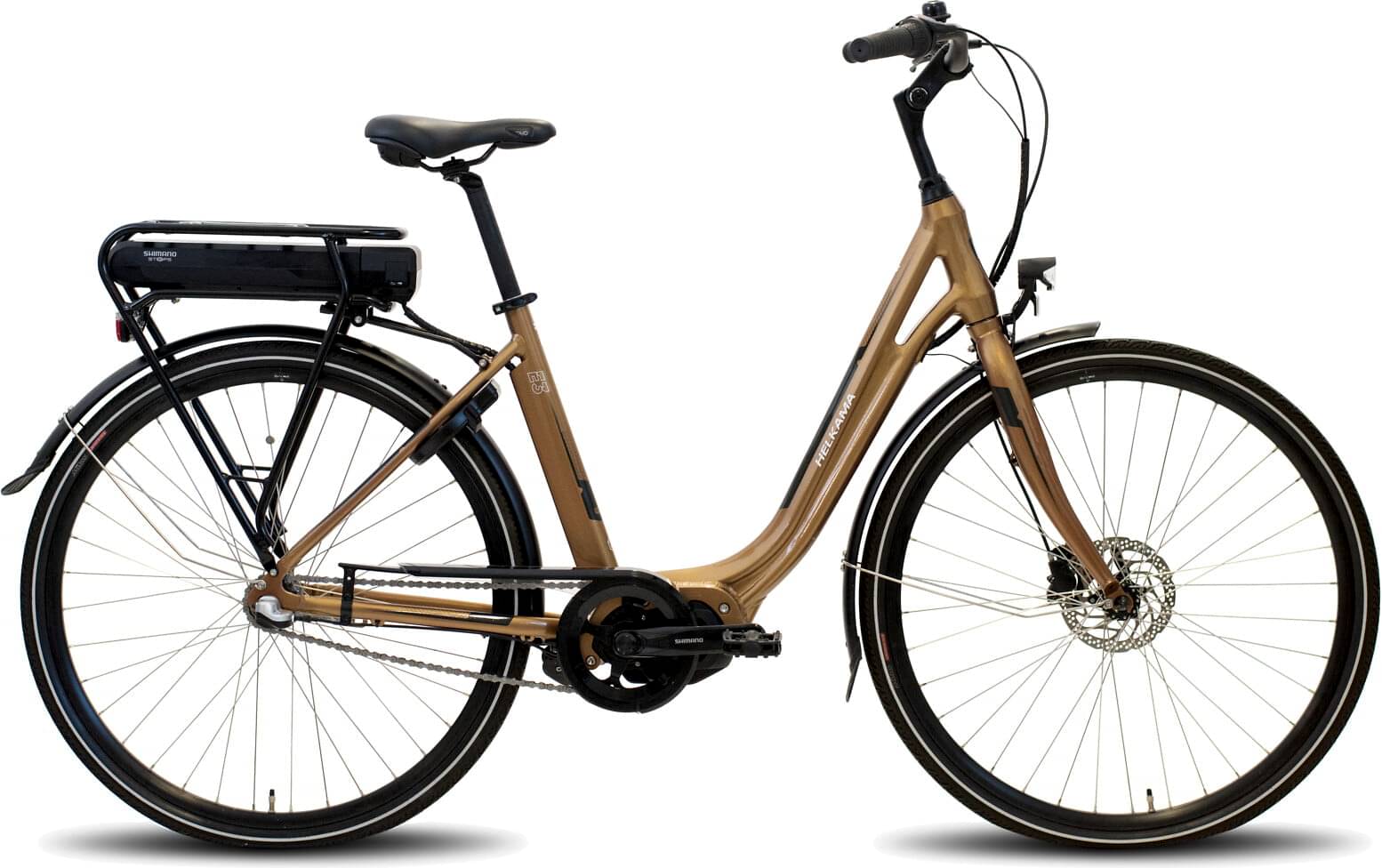

helkama E3 3sp 28” 2025
2025 E-bike
Estimate price |
2,733$
Weight | 27 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor Shimano hub-drive -
Drivetrain Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Steel
Drivetrain
Shift Levers
Shimano Nexus 3v revo shift
Crank
Shimano FC-E5010 170mm black, 38H
Chain
KMC
Wheels
Rims
Mach1 21-622 36R black
Tires
Rubena Hook
Brakes
Brakes
Shimano MT200 hydraulic disc brake 160 mm
Brake Levers
Shimano
Cockpit
Stem
Aluminum, adjustable 90 mm
Handlebar
City Cruiser 31,8/640 mm
Seat
Saddle
Selle Royal Rio Plus
Seatpost
27,2 x 300 mm
Motor & Battery
Motor
Shimano
Charger
Shimano E6002
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 54cm |
|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.405 mm |
| Front Center | 665 mm | 665 mm |
| Rake | 44 mm | 44 mm |
| Trail | 80 mm | 80 mm |
| Stack | 590 mm | 590 mm |
| Reach | 420 mm | 420 mm |
| Top Tube Length | 622 mm | 622 mm |
| Seat Tube Angle | 71 ° | 71 ° |
| Seat Tube Length | 480 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 170 mm |
| Chainstay Length | 485 mm | 485 mm |
| Wheelbase | 1146 mm | 1146 mm |
| Bottom Bracket Drop | 50 mm | 50 mm |
| Wheels | 700 | 700 |
