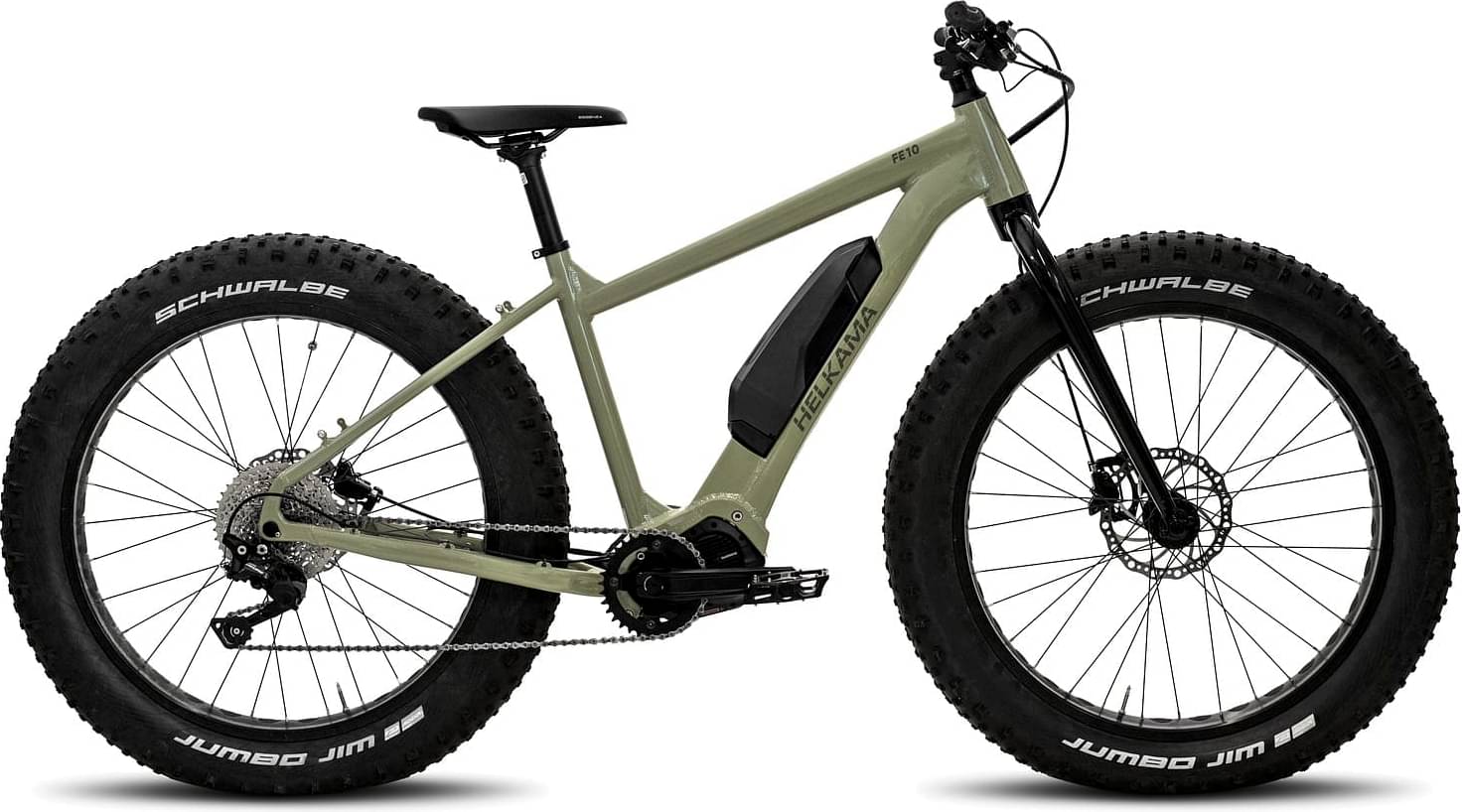

helkama FE10 10sp 2025
2025 E-bike
Estimate price |
3,489$
Weight | 27 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Motor Shimano hub-drive -
Battery Shimano E8010 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Steel
Drivetrain
Shift Levers
Shimano SL-M6000 Deore
Crank
Samox e-Fat 34H, 170 mm
Chain
KMC
Wheels
Rims
Weinnman HL801 80-559
Tires
Schwalbe Jumbo Jim black
Brakes
Brakes
Shimano MT200 hydraulic disc brake 180 mm
Brake Levers
Shimano
Cockpit
Stem
Fixed 35 mm
Handlebar
Aluminium 35/780 mm
Seat
Saddle
Selle Royal Essenza Athletic
Seatpost
30,9 x 350 mm
Motor & Battery
Motor
Shimano
Battery
Shimano E8010
Charger
Shimano E6002
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 18" | 20" |
|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.502 mm |
| Bottom Bracket Height | 276 mm | 276 mm |
| Front Center | 682 mm | 685 mm |
| Rake | 51 mm | 51 mm |
| Trail | 77 mm | 77 mm |
| Stack | 623 mm | 622 mm |
| Reach | 410 mm | 414 mm |
| Top Tube Length | 600 mm | 605 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 457 mm | 508 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 135 mm | 135 mm |
| Chainstay Length | 495 mm | 495 mm |
| Wheelbase | 1169 mm | 1172 mm |
| Bottom Bracket Drop | 67 mm | 67 mm |
| Wheels | 26" | 26" |
