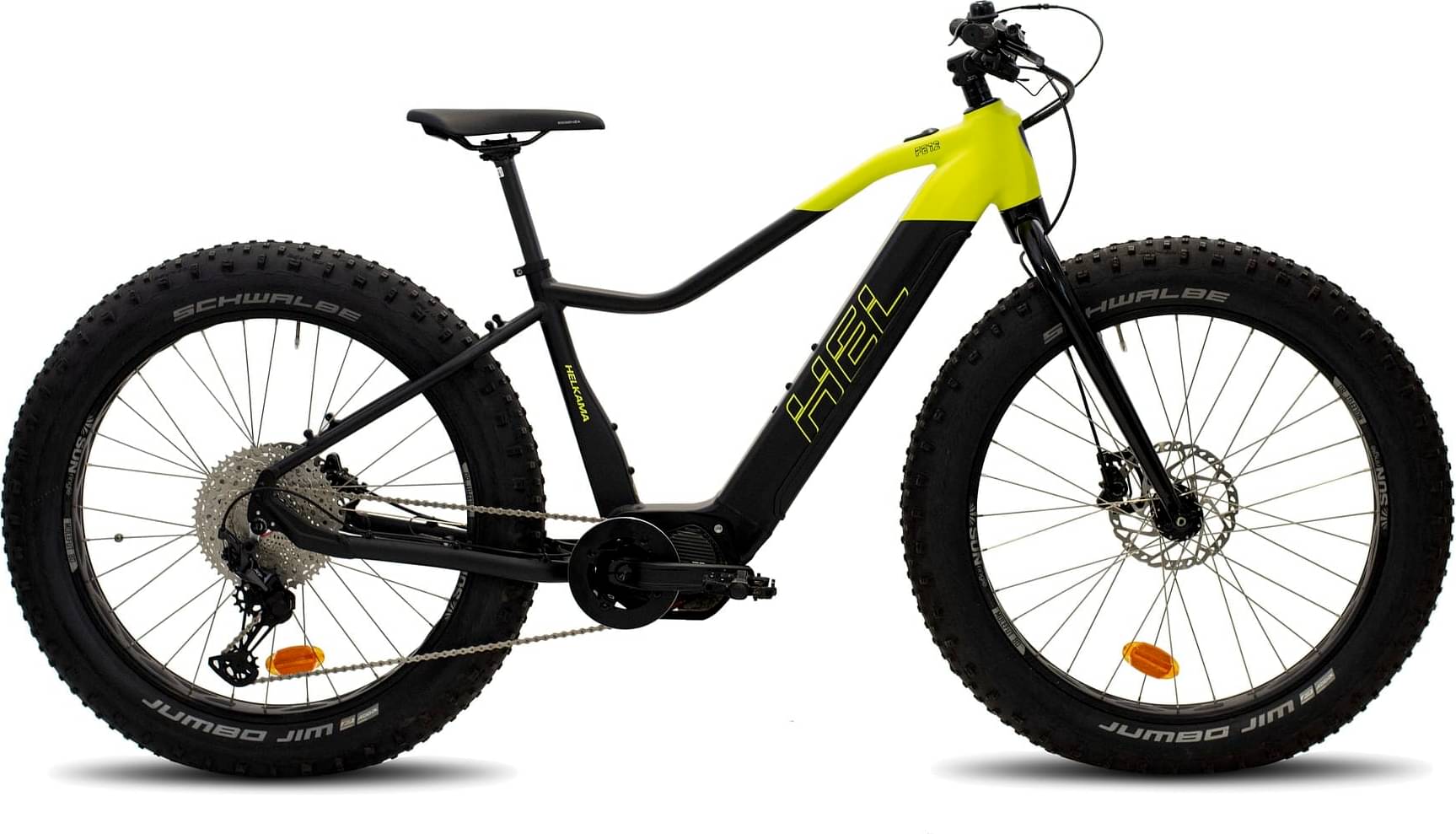

helkama FE12 12sp 2025
2025 E-bike
Estimate price |
5,350$
Weight | 26.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset SLX -
Suspension Rigid -
Motor Shimano hub-drive -
Battery Shimano E8036 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Steel
Drivetrain
Shift Levers
Shimano SLX SL-M7100
Crank
Samox e-Fat 160 mm, 34H
Chain
Sunrace CN12E
Wheels
Rims
Sunringle Mulefut 80-559 32R
Tires
Schwalbe Jumbo Jim
Brakes
Brakes
Shimano MT410 hydraulic disc brake 180 mm
Brake Levers
Shimano
Cockpit
Stem
Fixed 35 mm
Handlebar
Aluminium 35/780 mm
Seat
Saddle
Selle Royal Essenza Athletic
Motor & Battery
Motor
Shimano
Battery
Shimano E8036
Charger
Shimano E8004
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 20" |
|---|---|---|---|
| Stack Reach Ratio | 1.324 mm | 1.297 mm | 1.271 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm |
| Front Center | 742 mm | 752 mm | 762 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 83 mm | 83 mm | 83 mm |
| Stack | 629 mm | 629 mm | 629 mm |
| Reach | 475 mm | 485 mm | 495 mm |
| Top Tube Length | 667 mm | 677 mm | 687 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 508 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 140 mm | 140 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1229 mm | 1239 mm | 1249 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Wheels | 26" | 26" | 26" |
