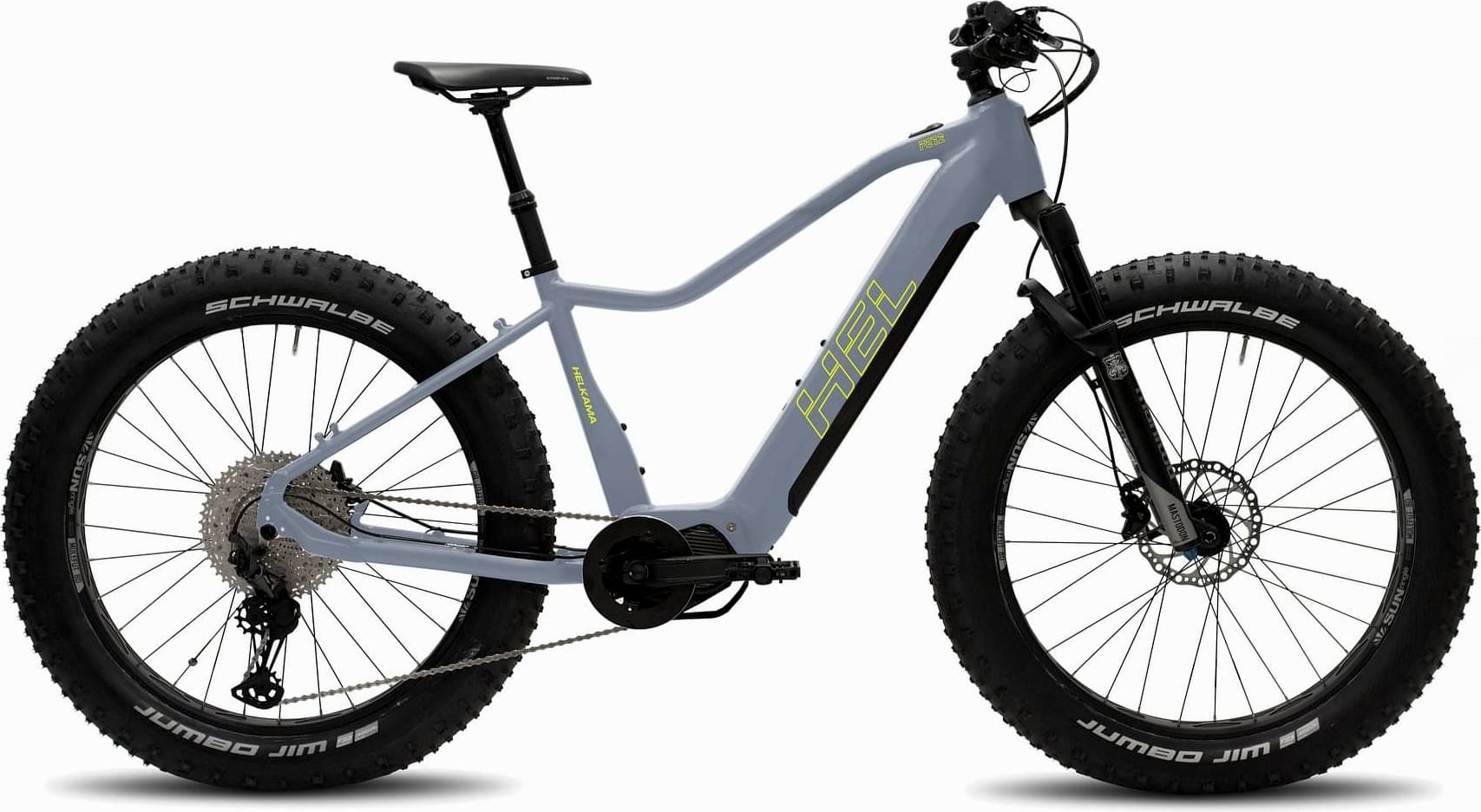

helkama FE12 12sp 708Wh 2025
2025 E-bike
Estimate price |
5,160$
Weight | 27.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Manitou Mastodon Comp
-
Groupset SLX -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Darfon E4COM -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Manitou Mastodon Comp 100 mm
Drivetrain
Shift Levers
Shimano SLX SL-M7100
Crank
Samox e-Fat 160 mm, 34H
Chain
Sunrace CN12E
Wheels
Rims
Sunringle Mulefut 80-559 32R
Tires
Schwalbe Jumbo Jim
Brakes
Brakes
Shimano MT520 hydraulic disc brake 180 mm
Brake Levers
Shimano
Cockpit
Stem
Fixed 35 mm
Handlebar
Aluminium 35/780 mm
Seat
Saddle
Selle Royal Essenza Athletic
Motor & Battery
Motor
Shimano
Battery
Darfon E4COM
Charger
Darfon Smart 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 175 | 20" |
|---|---|---|---|
| Stack Reach Ratio | 1.412 mm | 1.383 mm | 1.374 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm |
| Front Center | 758 mm | 768 mm | 781 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 83 mm | 83 mm | 83 mm |
| Stack | 670.9 mm | 670.9 mm | 680.3 mm |
| Reach | 475 mm | 485 mm | 495 mm |
| Top Tube Length | 680.1 mm | 690.1 mm | 703 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 444.5 mm | 508 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1245 mm | 1255 mm | 1268 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Wheels | 26" | 26" | 26" |
