helkama FE8 8sp 26” 2025

2025 E-bike
Estimate price | 2,326$
E-bike
Open compare Use advisor

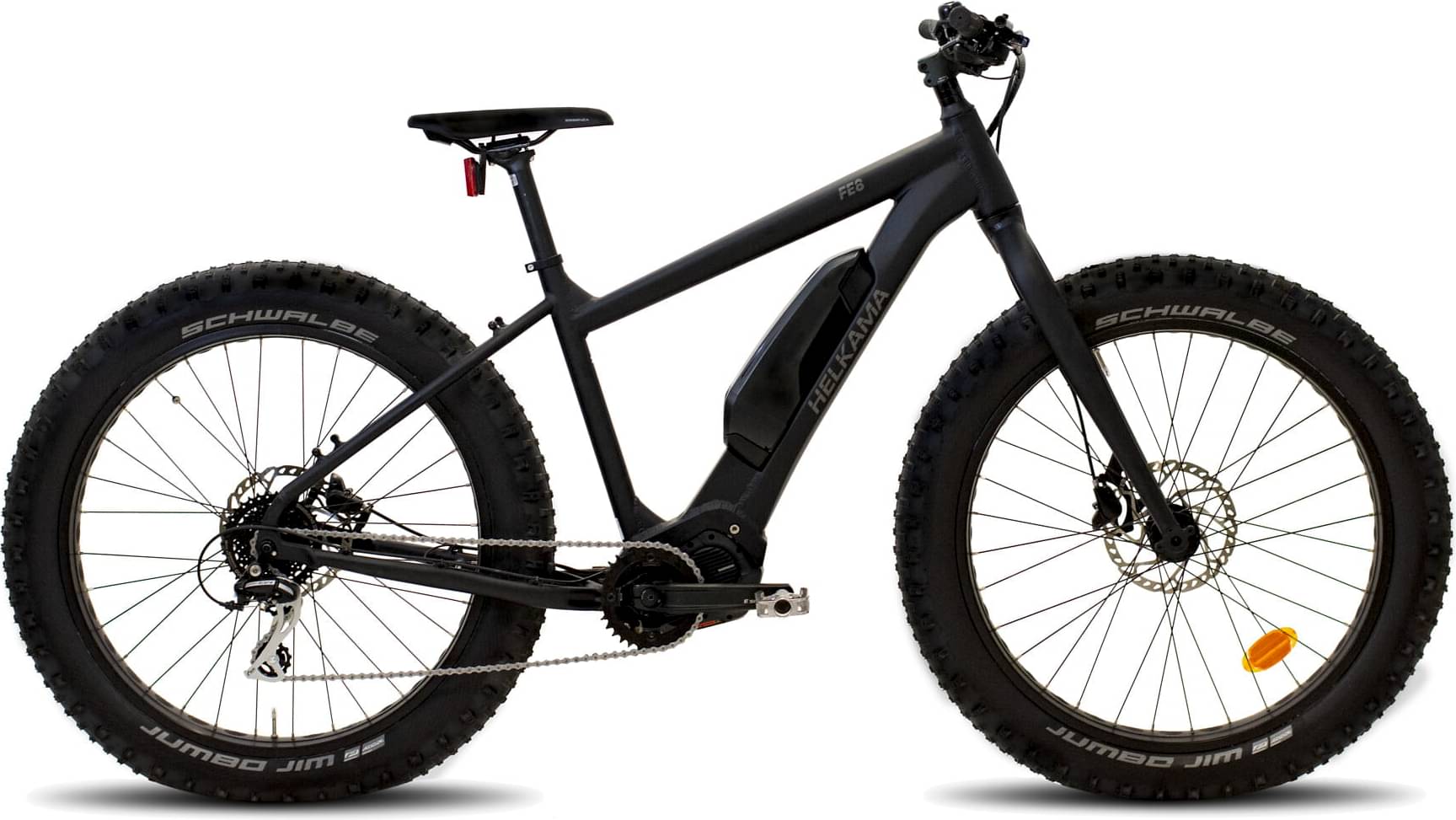

Helkama Fe8 8sp 26 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Groupset Acera
  • Suspension Rigid
  • Motor Shimano hub-drive
  • Brakes Shimano Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Aluminum

Suspension Fork

Steel

Drivetrain

Shift Levers

Shimano Acera 8s

Crank

Samox e-Fat 170 mm

Chain

KMC

Wheels

Rims

Weinmann 80-559 32R

Tires

Schwalbe Jumbo Jim

Brakes

Brakes

Shimano MT200 hydraulic disc brake 180mm

Brake Levers

Shimano

Cockpit

Stem

Fixed 35 mm

Handlebar

Aluminium 35/780 mm

Seat

Saddle

Selle Royal Essenza Athletic

Seatpost

30,9 x 350 mm

Motor & Battery

Motor

Shimano

Charger

Shimano E6002

Fit data

Geometry

Numbers for sizing and ride feel.

Size26"
Stack Reach Ratio
1.52 mm
Bottom Bracket Height
276 mm
Front Center
682 mm
Rake
51 mm
Trail
77 mm
Stack
623 mm
Reach
410 mm
Top Tube Length
600 mm
Seat Tube Angle
73 °
Seat Tube Length
457 mm
Head Tube Angle
69 °
Head Tube Length
135 mm
Chainstay Length
495 mm
Wheelbase
1169 mm
Bottom Bracket Drop
67 mm
Wheels26"
