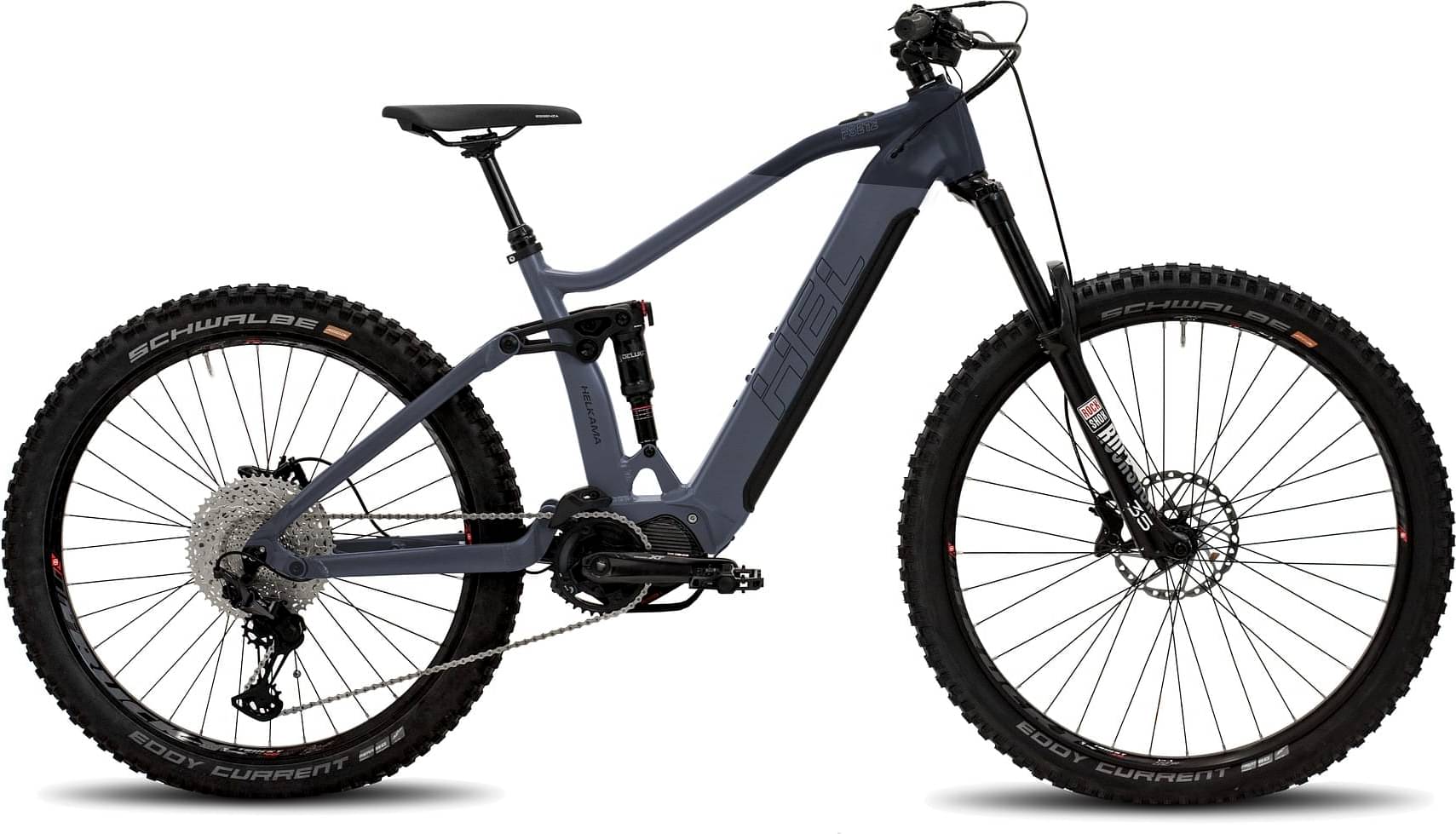

helkama FSE12 12sp 29/27.5” EP801 2025
2025 E-bike
Estimate price |
6,572$
Weight | 26.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Fork RockShox 35 Gold RL
-
Groupset XT -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Shimano EN806 -
Brakes Tektro Orion Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox 35 Gold 160 mm boost
Drivetrain
Shift Levers
Shimano Deore XT SL-M8100
Crank
FSA CK-752 165mm / 34H
Chain
Sunrace CN12E
Wheels
Rims
Mach1 30-622 36R black / 40-584 36R black
Tires
Schwalbe Eddy Current
Brakes
Brakes
Tektro HD-M750 4-P 900mm 180mm
Brake Levers
Tektro HD-750
Cockpit
Stem
Fixed 35 mm
Handlebar
Aluminium 35/780 mm
Seat
Saddle
Selle Royal Essenza Athletic
Motor & Battery
Motor
Shimano
Battery
Shimano EN806
Charger
Shimano E8004
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 18" | 20" |
|---|---|---|
| Stack Reach Ratio | 1.422 mm | 1.412 mm |
| Bottom Bracket Height | 359 mm | 359 mm |
| Front Center | 770 mm | 785 mm |
| Rake | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm |
| Stack | 640 mm | 649.5 mm |
| Reach | 450 mm | 460 mm |
| Top Tube Length | 634 mm | 648 mm |
| Seat Tube Angle | 67.7 ° | 67.7 ° |
| Seat Tube Length | 457 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 140 mm | 150 mm |
| Chainstay Length | 460 mm | 460 mm |
| Wheelbase | 1230 mm | 1244 mm |
| Bottom Bracket Drop | 15 mm | 15 mm |
| Wheels | 29" | 29" |
