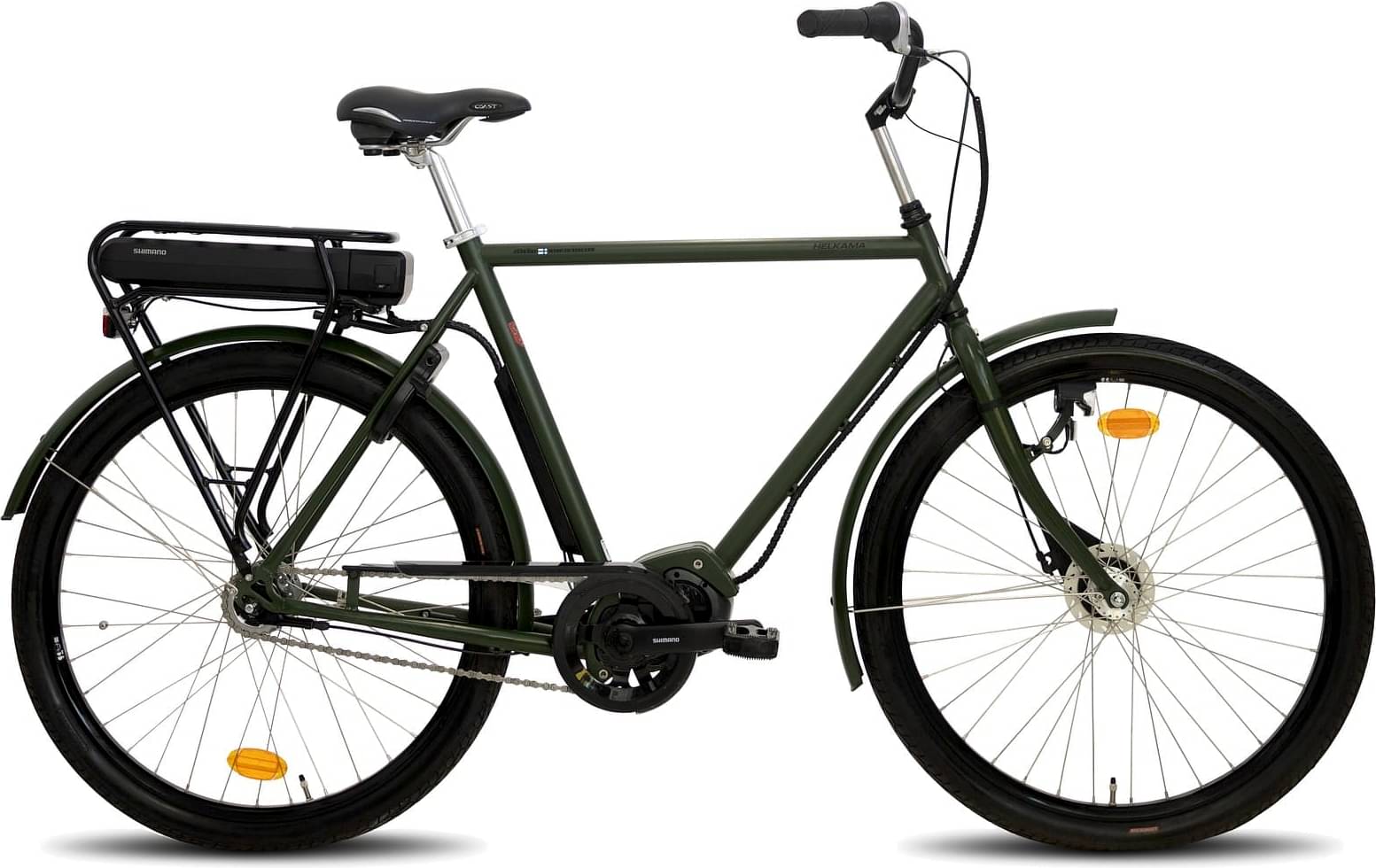

helkama Jääkäri e-bike 7sp 2025
2025 E-bike
Estimate price |
3,210$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Nexus -
Suspension Rigid -
Motor Shimano hub-drive -
Battery Shimano E6000 -
Drivetrain Internally Geared Hub -
Brakes Drum
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
Steel
Drivetrain
Shift Levers
Shimano Nexus 7 revo shift
Crank
Shimano FC-E6100 black 170 mm
Chain
KMC
Wheels
Rims
Mach1 30-584 36R black
Tires
Rubena Walrus black
Brakes
Brakes
Drum brake
Brake Levers
Tektro
Cockpit
Stem
Fixed 40 mm
Handlebar
Steel 25,4/625 mm
Seat
Saddle
Selle Royal
Seatpost
27,2 x 300 mm
Motor & Battery
Motor
Shimano
Battery
Shimano E6000
Charger
Shimano E6002
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | HELKAMA JÄÄKÄRI E-BIKE 7SP |
|---|---|
| Stack Reach Ratio | 1.362 mm |
| Front Center | 644 mm |
| Rake | 44 mm |
| Trail | 81 mm |
| Stack | 542 mm |
| Reach | 398 mm |
| Top Tube Length | 617 mm |
| Seat Tube Angle | 68 ° |
| Seat Tube Length | 580 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 125 mm |
| Chainstay Length | 510 mm |
| Wheelbase | 1148 mm |
| Bottom Bracket Drop | 57 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
