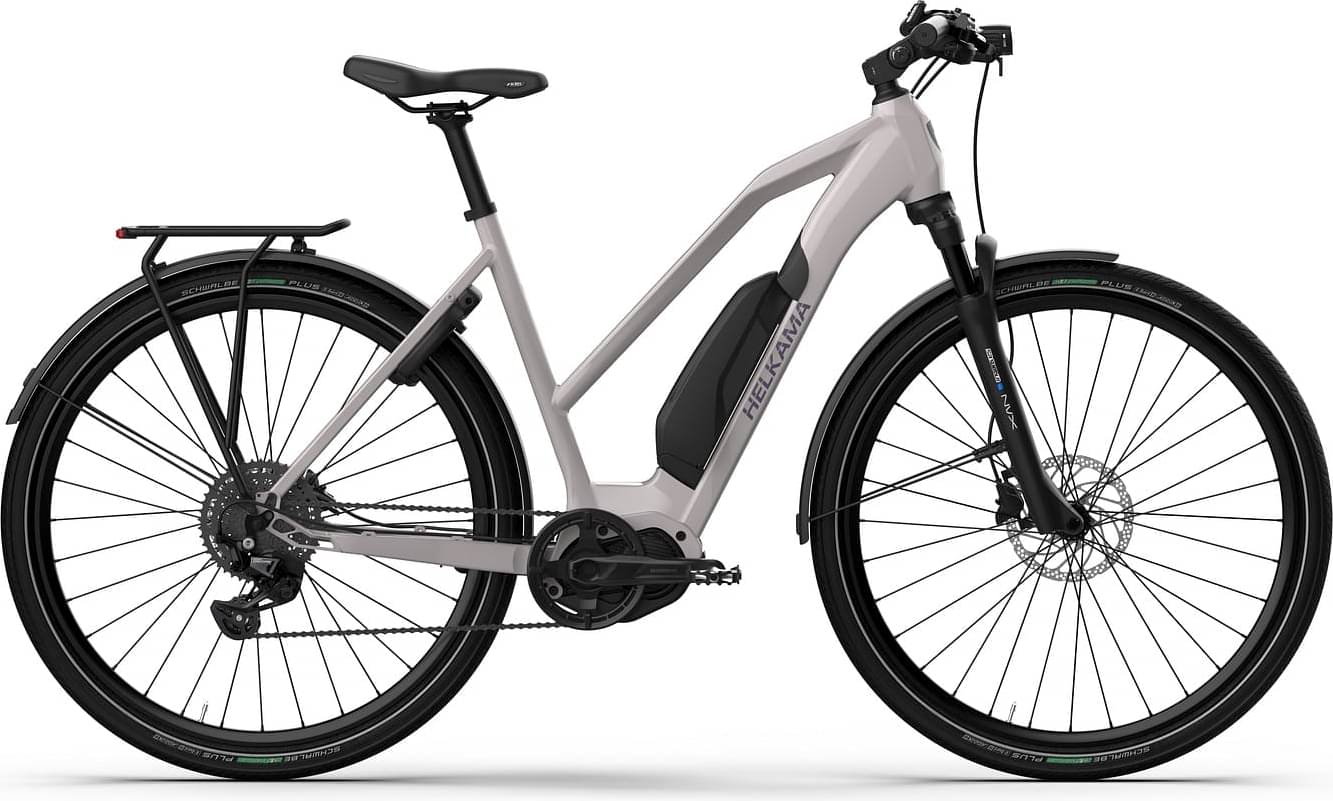

helkama SE 10sp 28″ 2025
2025 E-bike
Estimate price |
4,303$
Weight | 26.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NVX
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Shimano EN605 -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntour SF23-NVX32 Boost NLO 63mm
Drivetrain
Shift Levers
Shimano Deore SL-M5130 10sp Linkglide
Crank
Shimano FC-EM600 170mm/CR-ET600 38T
Chain
Shimano CN-LG500 Linkglide
Wheels
Rims
Mach 1 640 21-622 32H
Tires
Schwalbe Energizer plus with reflective sidewall
Brakes
Brakes
Shimano MT200 hydraulic disc brake 180mm
Brake Levers
Shimano MT201
Cockpit
Stem
Ergotec Sepia XL, alu. adjustable 100 mm
Handlebar
Alumiini 660mm//31,8mm
Seat
Saddle
Selle Royal Ariel Skingel Athletic
Seatpost
30,9 x 300 mm
Motor & Battery
Motor
Shimano
Battery
Shimano EN605
Charger
Shimano E6002
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm |
|---|---|---|---|
| Stack Reach Ratio | 1.566 mm | 1.54 mm | 1.5 mm |
| Front Center | 660 mm | 676 mm | 697 mm |
| Rake | 45 mm | 45 mm | 46 mm |
| Trail | 73 mm | 73 mm | 72 mm |
| Stack | 642 mm | 651 mm | 660 mm |
| Reach | 410 mm | 422.8 mm | 440 mm |
| Top Tube Length | 606 mm | 622 mm | 642 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 135 mm | 145 mm | 155 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1112 mm | 1128 mm | 1149 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 |
