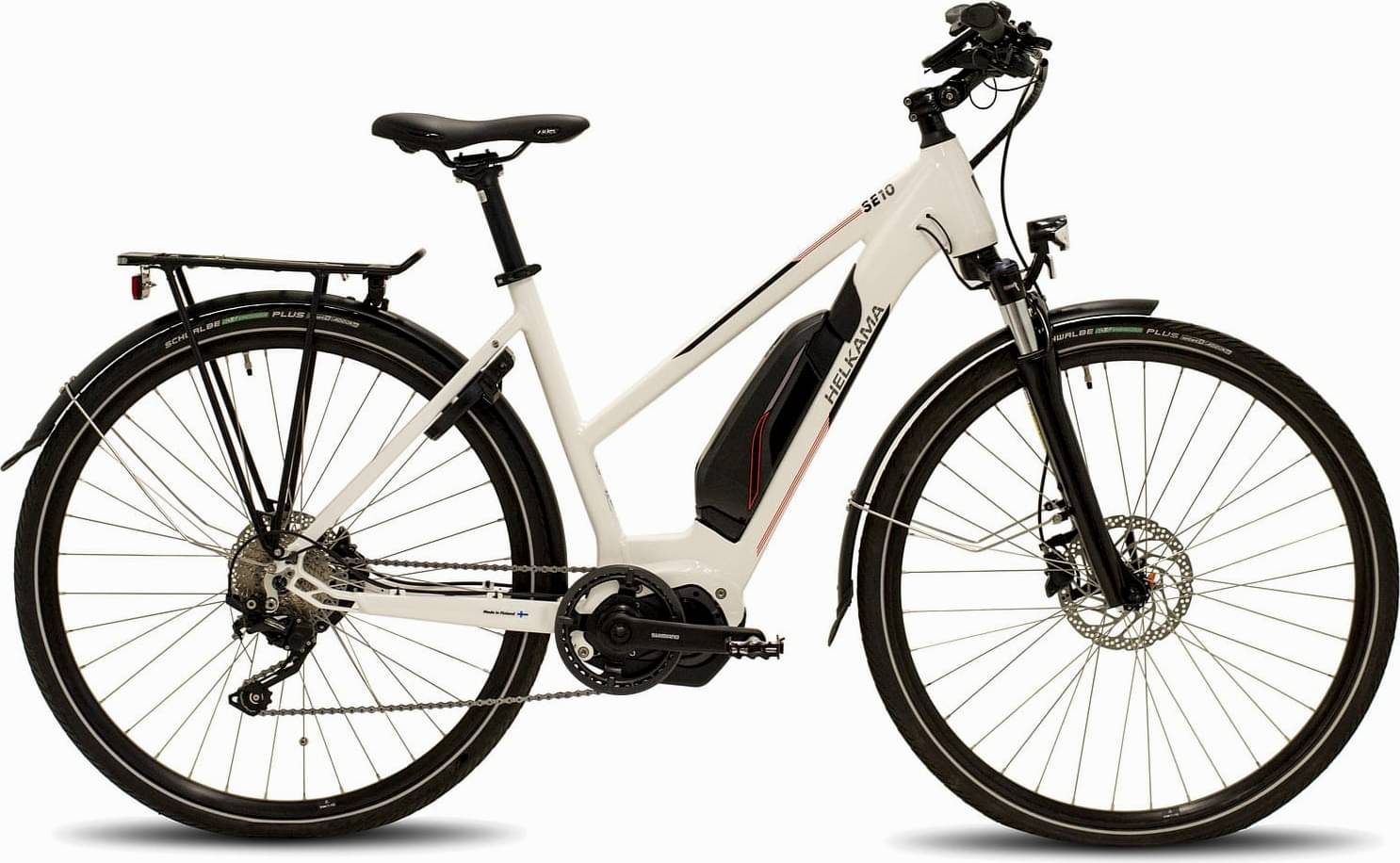

helkama SE10L 10sp 28” EP6 2025
2025 E-bike
Estimate price |
3,722$
Weight | 24.28 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Shimano EN605 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntour NEX E25, 63mm
Drivetrain
Shift Levers
Shimano Deore SL-T610
Crank
Shimano FC-EM600 38H, 170mm
Chain
KMC
Wheels
Rims
Mach1 21-622 36R black
Tires
Schwalbe Energizer Plus black
Brakes
Brakes
Shimano MT200 hydraulic disc brake 180 mm
Brake Levers
Shimano
Cockpit
Stem
Adjustable 110 mm
Handlebar
Aluminium 31,8/660 mm
Seat
Saddle
Selle Royal Ariel Skingel Athletic
Seatpost
30,9 x 350 mm
Motor & Battery
Motor
Shimano
Battery
Shimano EN605
Charger
Shimano E8004
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm |
|---|---|---|
| Stack Reach Ratio | 1.499 mm | 1.484 mm |
| Front Center | 658 mm | 673 mm |
| Rake | 45 mm | 46 mm |
| Trail | 73 mm | 72 mm |
| Stack | 622 mm | 632 mm |
| Reach | 415 mm | 426 mm |
| Top Tube Length | 605 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° |
| Head Tube Length | 145 mm | 155 mm |
| Chainstay Length | 440 mm | 440 mm |
| Wheelbase | 1090 mm | 1105 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Wheels | 700 | 700 |
