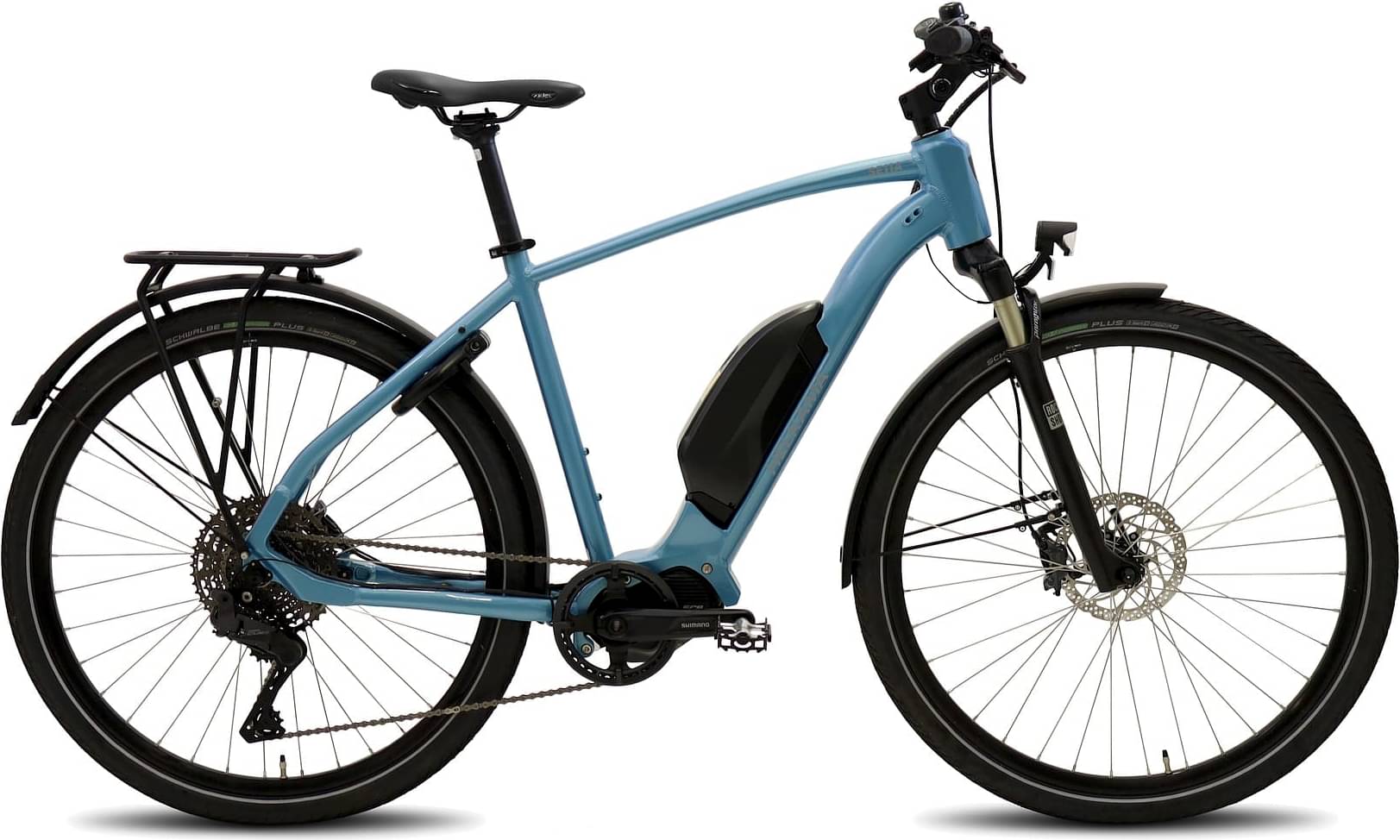

helkama SE11A 11sp 28” Autoshift 2025
2025 E-bike
Estimate price |
4,885$
Weight | 25.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Shimano EN606 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Paragon Gold 65 mm
Drivetrain
Shift Levers
Shimano SW-EN600R (electric gear)
Crank
Shimano FC-EM600 38H, 170mm
Chain
Shimano CN-LG500
Wheels
Rims
Mach1 21-622 36R black
Tires
Schwalbe Energizer Plus performance
Brakes
Brakes
Shimano CUES BL-U8000/8020 180mm
Brake Levers
Shimano CUES
Cockpit
Stem
Ergotec Sepia XL, alu. adjustable 100 mm
Handlebar
Aluminium 31,8/660 mm
Seat
Saddle
Selle Royal Ariel Skingel Athletic
Seatpost
30,9 x 350 mm
Motor & Battery
Motor
Shimano
Battery
Shimano EN606
Charger
Shimano E8004
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 56cm |
|---|---|---|
| Stack Reach Ratio | 1.562 mm | 1.602 mm |
| Front Center | 666 mm | 683 mm |
| Rake | 42 mm | 42 mm |
| Trail | 79 mm | 79 mm |
| Stack | 645 mm | 673 mm |
| Reach | 413 mm | 420 mm |
| Top Tube Length | 598 mm | 614 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 520 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 150 mm | 180 mm |
| Chainstay Length | 475 mm | 475 mm |
| Wheelbase | 1133 mm | 1150 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Wheels | 700 | 700 |
