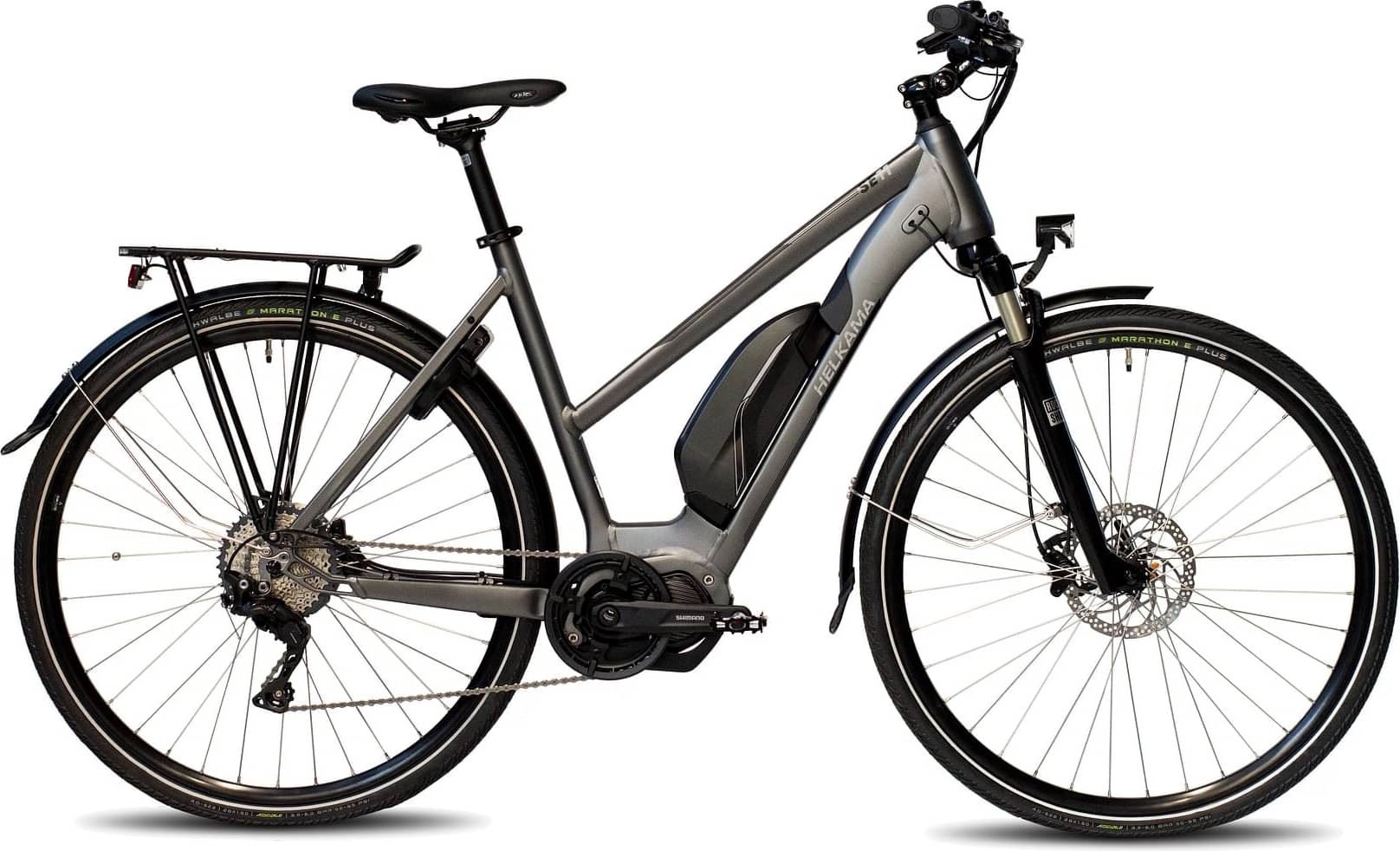

helkama SE11L 11sp 28” 2025
2025 E-bike
Estimate price |
4,769$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset SLX -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Shimano E8016 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Paragon Gold 65 mm
Drivetrain
Shift Levers
Shimano SLX SL-M7000
Crank
Shimano FC-EM600 musta 170 mm
Chain
Shimano
Wheels
Rims
Mach1 21-622 36R black
Tires
Schwalbe Marathon e-Plus
Brakes
Brakes
Shimano MT410 hydraulic disc brake
Brake Levers
Shimano
Cockpit
Stem
Adjustable 110 mm
Handlebar
Aluminium 31,8/660 mm
Seat
Saddle
Selle Royal Ariel Skingel Athletic
Seatpost
30,9 x 350 mm
Motor & Battery
Motor
Shimano
Battery
Shimano E8016
Charger
Shimano E6002
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm |
|---|---|---|
| Stack Reach Ratio | 1.499 mm | 1.484 mm |
| Front Center | 658 mm | 673 mm |
| Rake | 45 mm | 46 mm |
| Trail | 73 mm | 72 mm |
| Stack | 622 mm | 632 mm |
| Reach | 415 mm | 426 mm |
| Top Tube Length | 605 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° |
| Head Tube Length | 145 mm | 155 mm |
| Chainstay Length | 440 mm | 440 mm |
| Wheelbase | 1090 mm | 1105 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Wheels | 700 | 700 |
