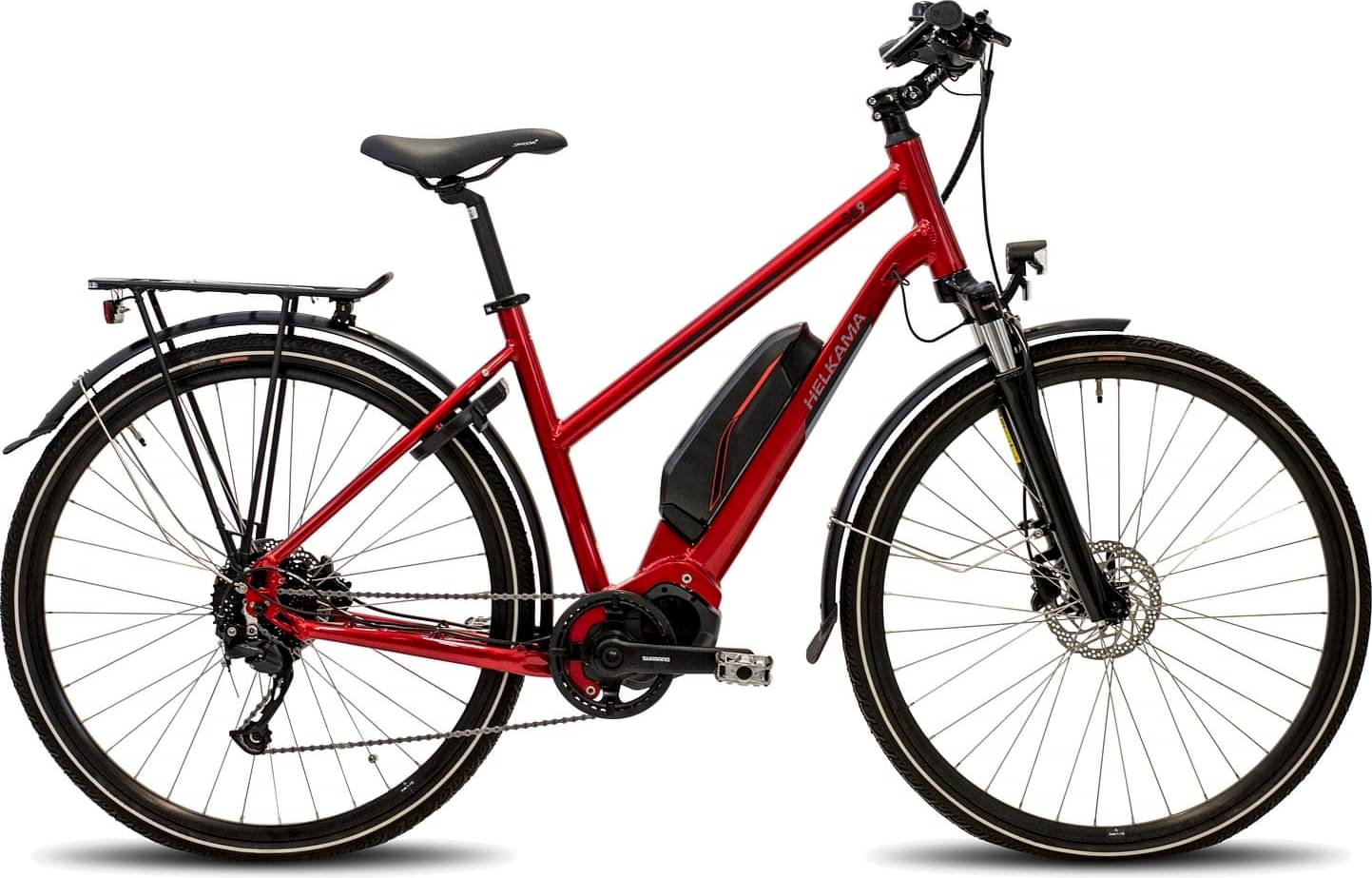

helkama SE9L 9sp 28” 2025
2025 E-bike
Estimate price |
3,024$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Shimano E8014 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntour NEX E25, 63 mm
Drivetrain
Shift Levers
Shimano Alivio 9s
Crank
Shimano FC-E6100 38H, 170 mm
Chain
KMC
Wheels
Rims
Mach1 21-622 36R black
Tires
Mitas Hook black
Brakes
Brakes
Clarks Clout hydraulic disc brake 160 mm
Brake Levers
Clarks
Cockpit
Stem
Adjustable 110 mm
Handlebar
Aluminium 31,8/640 mm
Seat
Saddle
Selle Royal Shadow Plus
Seatpost
27,2 x 300 mm
Motor & Battery
Motor
Shimano
Battery
Shimano E8014
Charger
Shimano E6002
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 54cm |
|---|---|---|
| Stack Reach Ratio | 1.759 mm | 1.67 mm |
| Front Center | 646 mm | 743 mm |
| Rake | 44 mm | mm |
| Trail | 80 mm | mm |
| Stack | 663 mm | 663 mm |
| Reach | 377 mm | 397 mm |
| Top Tube Length | 580 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 180 mm |
| Chainstay Length | 460 mm | 460 mm |
| Wheelbase | 1099 mm | 1197 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 700 | 700 |
