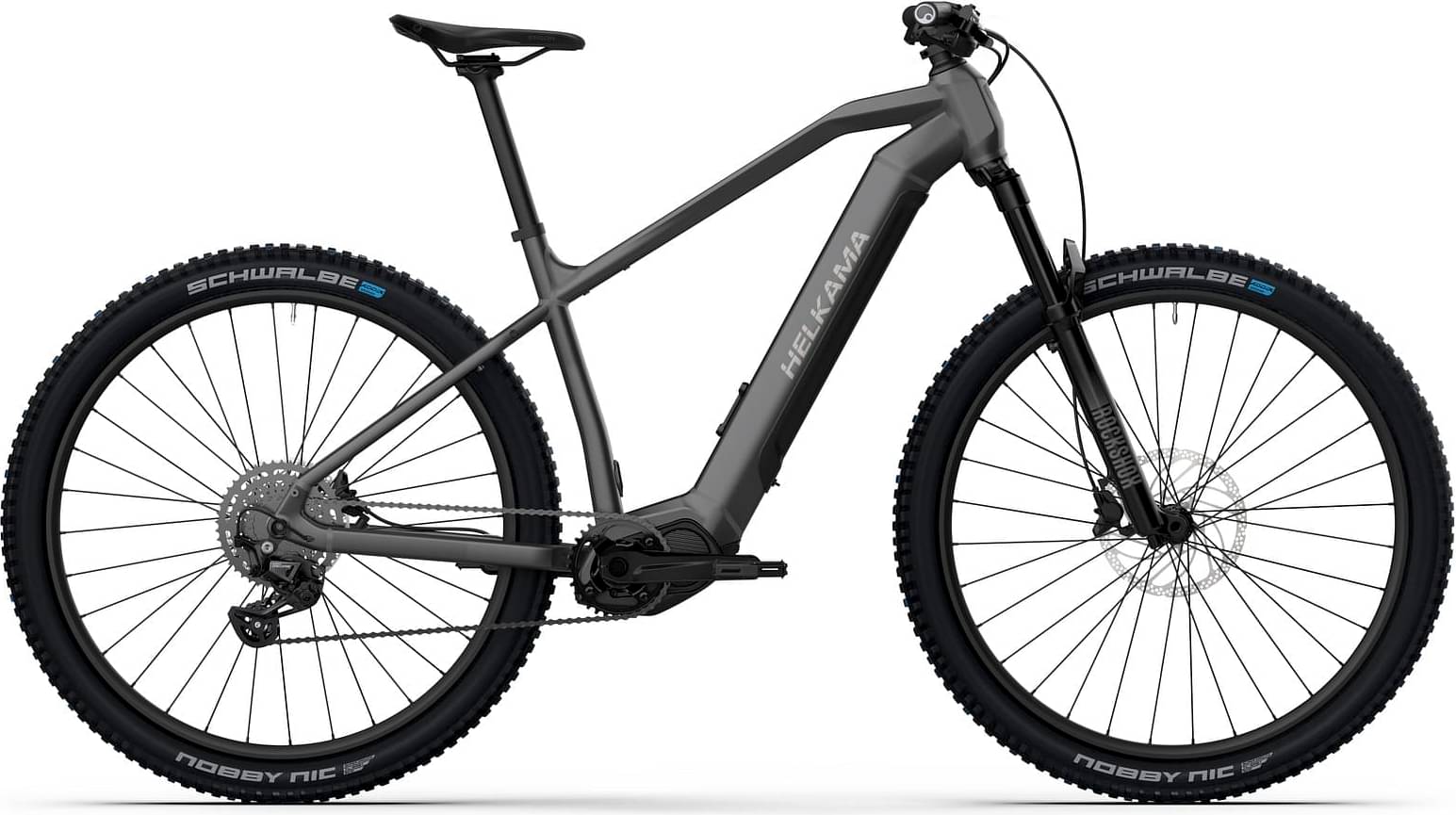

helkama X 10sp 29” 2025
2025 E-bike
Estimate price |
4,652$
Weight | 24 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 51mm -
Fork RockShox 35 Gold RL
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Shimano EN806 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox 35 Gold RL 29" 130 51mm MXL Stealth
Drivetrain
Shift Levers
Shimano Deore SL-M5130 10sp Linkglide
Crank
FSA CK-752 165mm, 34H Shimano CRE-70B
Chain
Shimano CN-LG500 Linkglide
Wheels
Rims
Mach1 Trucky 30-622 ETR / 32H, tubeless ready
Tires
Schwalbe Nobby Nic
Brakes
Brakes
Shimano MT410 CL hydraulic disc brake 203mm
Brake Levers
Shimano MT-401
Cockpit
Stem
Satori URSA 50 mm
Handlebar
Alumiini 780mm(17" 720mm)
Seat
Saddle
Ergon ST10 GEL
Seatpost
30,9 x 350 mm
Motor & Battery
Motor
Shimano
Battery
Shimano EN806
Charger
Shimano E6002
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.538 mm | 1.498 mm | 1.463 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm |
| Front Center | 734 mm | 755 mm | 776 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 100 mm | 100 mm | 100 mm |
| Stack | 657.4 mm | 666.6 mm | 675.8 mm |
| Reach | 427.5 mm | 445 mm | 462 mm |
| Top Tube Length | 609.8 mm | 630 mm | 649.4 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 470 mm | 515 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1188 mm | 1209 mm | 1230 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
