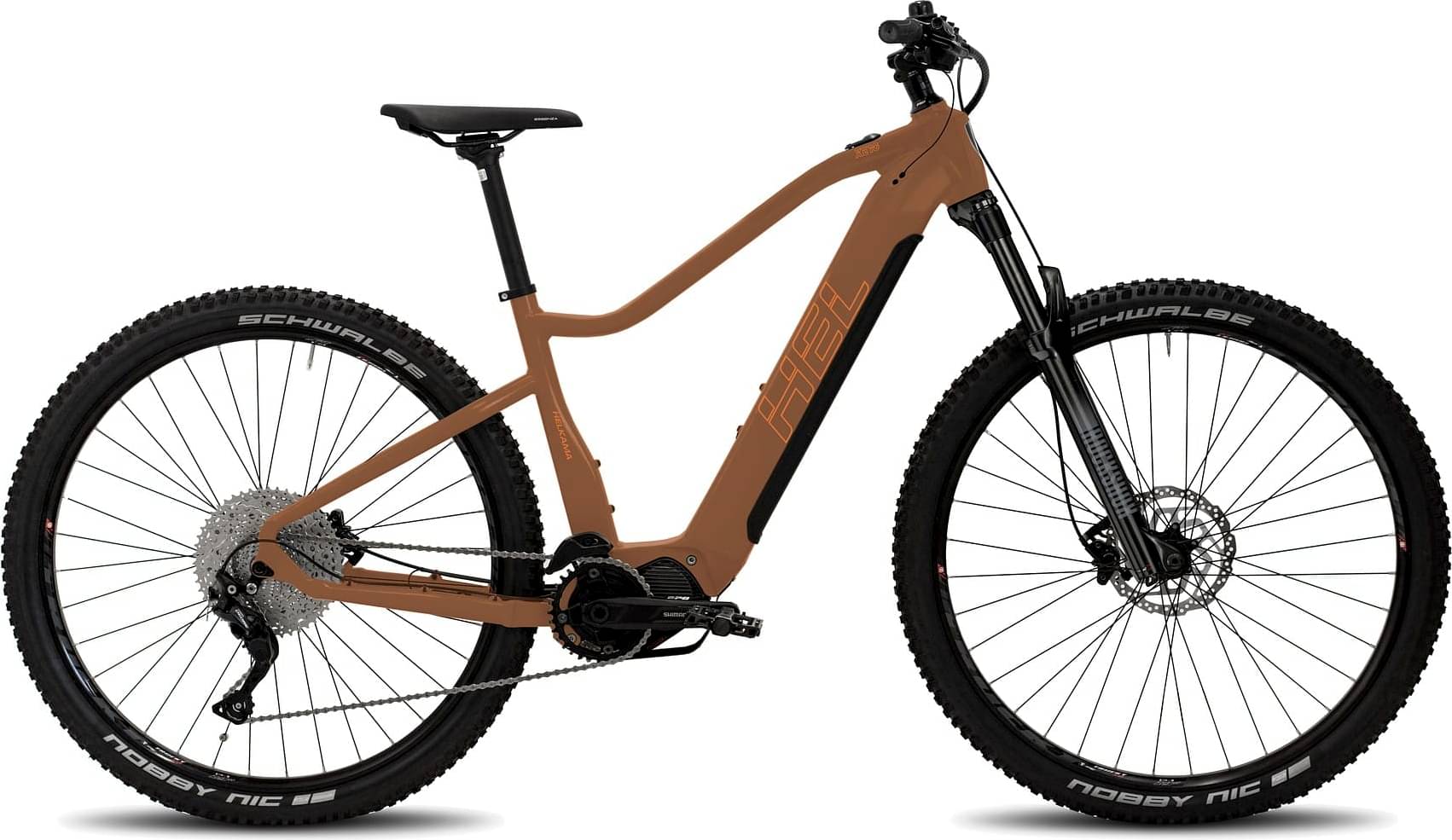

helkama XE10 10sp 29” EP6 2025
2025 E-bike
Estimate price |
4,071$
Weight | 23.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox Judy Silver TK
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Shimano EN805L -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RS Judy silver 120mm or Manitou Machete 29+, 120 mm
Drivetrain
Shift Levers
Shimano Deore SL- M5130
Crank
Shimano FC-EM600 34H, 170mm
Chain
KMC
Wheels
Rims
Mach1 Trucky 30-622 36R
Tires
Schwalbe Nobby Nic Performance
Brakes
Brakes
Shimano MT410 hydraulic disc brake 180mm
Brake Levers
Shimano
Cockpit
Stem
Fixed 50 mm
Handlebar
Aluminium 35/780 mm
Seat
Saddle
Selle Royal Essenza Athletic
Seatpost
30,9 x 350 mm
Motor & Battery
Motor
Shimano
Battery
Shimano EN805L
Charger
Shimano E8004
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 165 | 18" | 195 |
|---|---|---|---|
| Stack Reach Ratio | 1.615 mm | 1.58 mm | 1.547 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 731 mm | 750 mm | 769 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 105 mm | 105 mm | 105 mm |
| Stack | 670.2 mm | 679.4 mm | 688.6 mm |
| Reach | 415 mm | 430 mm | 445 mm |
| Top Tube Length | 594.6 mm | 612 mm | 629.5 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1179 mm | 1198 mm | 1217 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
