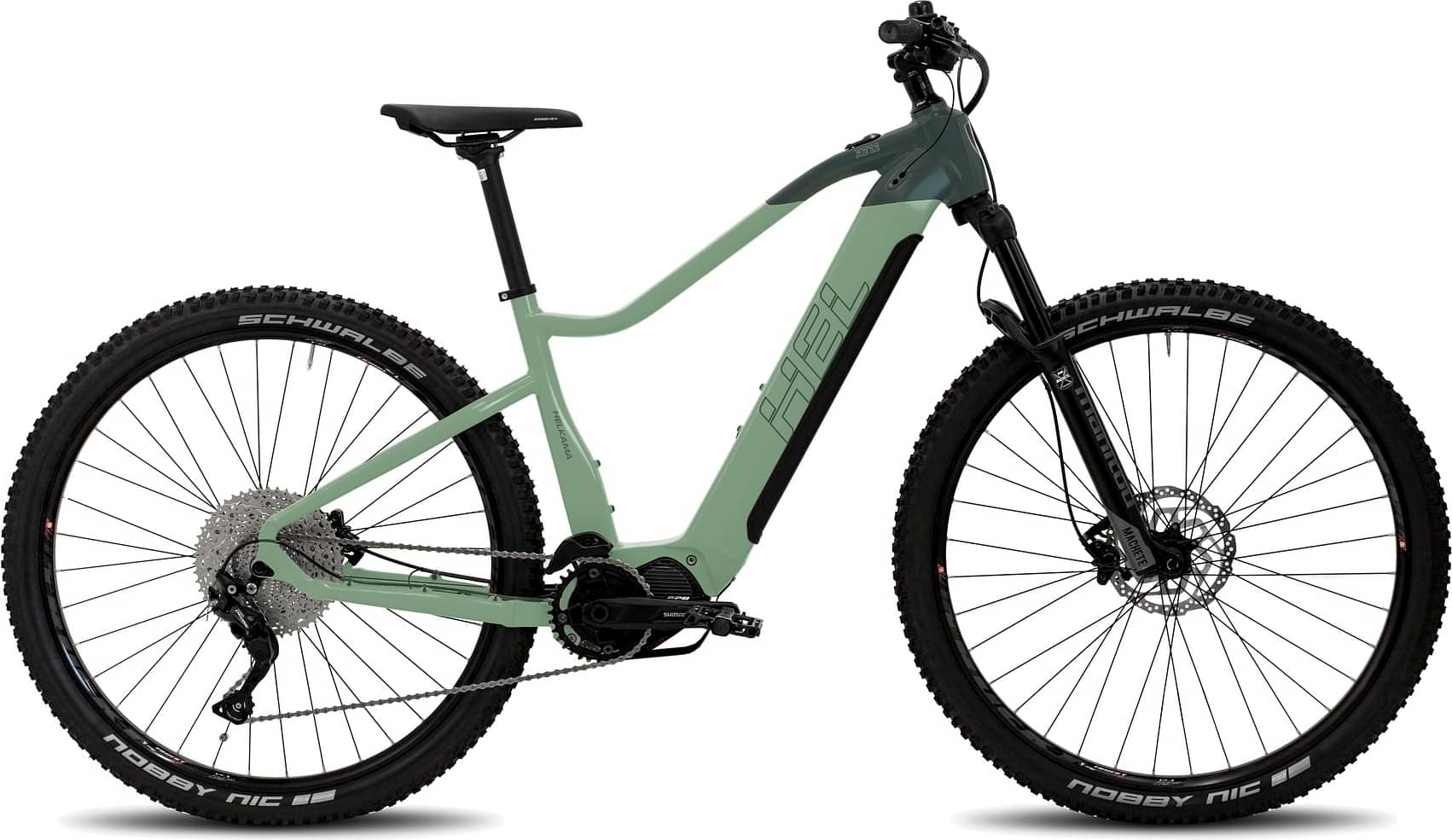

helkama XE12 11sp 29” EP6 2025
2025 E-bike
Estimate price |
4,478$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Manitou Machete
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano hub-drive -
Battery Shimano EN805L -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Manitou Machete 29+ 120 mm boost tapered
Drivetrain
Shift Levers
Shimano SL-M5100-11
Crank
FSA CK-752 165mm / 34H
Chain
Shimano CN-HG601
Wheels
Rims
Mach1 30-622 36R
Tires
Schwalbe Nobby Nic Performance
Brakes
Brakes
Shimano MT410 hydraulic disc brake 180 mm
Brake Levers
Shimano
Cockpit
Stem
Fixed 35 mm
Handlebar
Aluminium 35/780 mm
Seat
Saddle
Selle Royal Essenza Athletic
Seatpost
30,9 x 350 mm
Motor & Battery
Motor
Shimano
Battery
Shimano EN805L
Charger
Shimano E8004
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" |
|---|---|---|
| Stack Reach Ratio | 1.558 mm | 1.528 mm |
| Bottom Bracket Height | 314 mm | 314 mm |
| Front Center | 746 mm | 764 mm |
| Rake | 51 mm | 50 mm |
| Trail | 104 mm | 105 mm |
| Stack | 670 mm | 680 mm |
| Reach | 430 mm | 445 mm |
| Top Tube Length | 610 mm | 627 mm |
| Seat Tube Angle | 75 ° | 75 ° |
| Seat Tube Length | 440 mm | 490 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 140 mm |
| Chainstay Length | 455 mm | 455 mm |
| Wheelbase | 1195 mm | 1213 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
