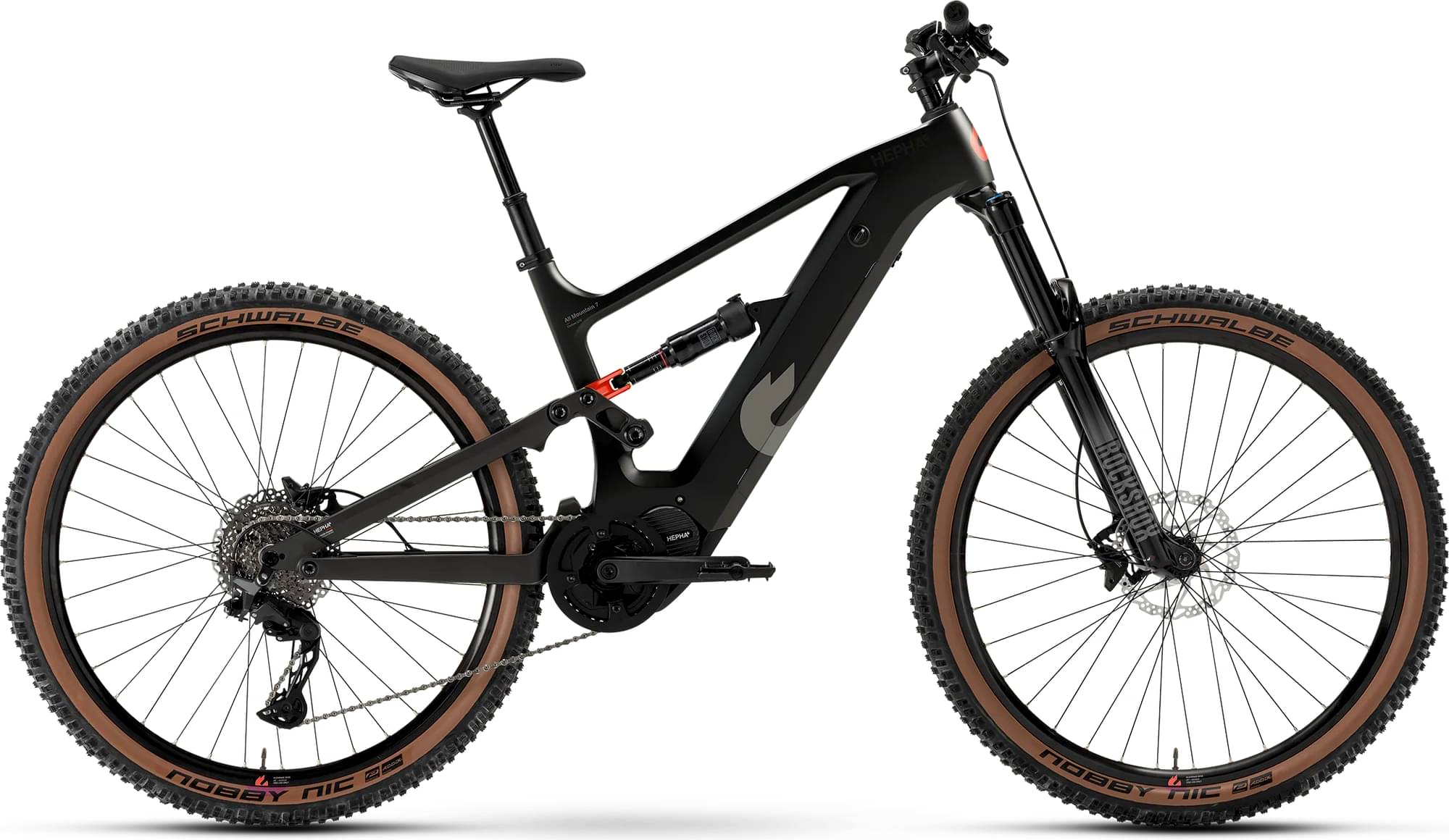

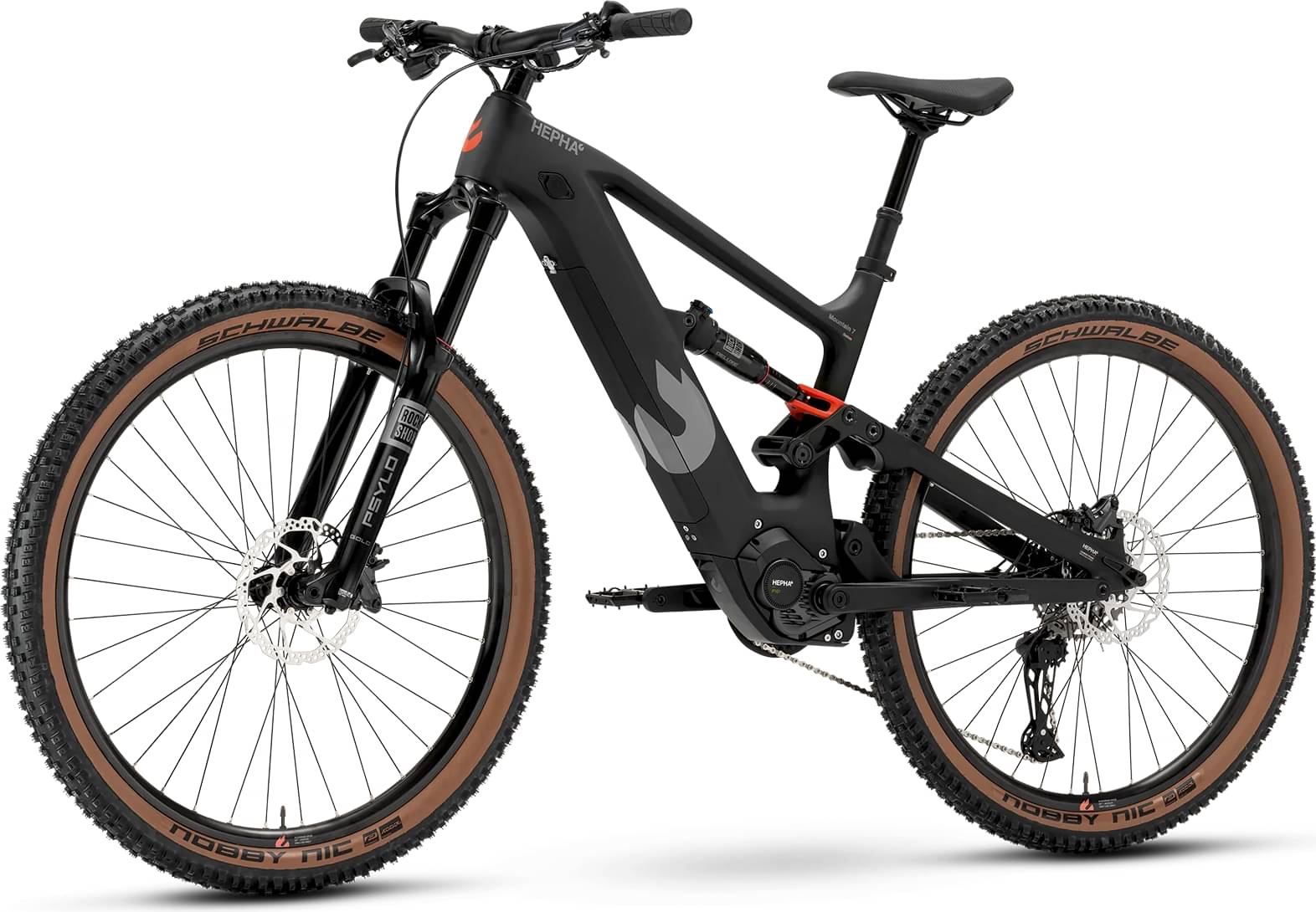

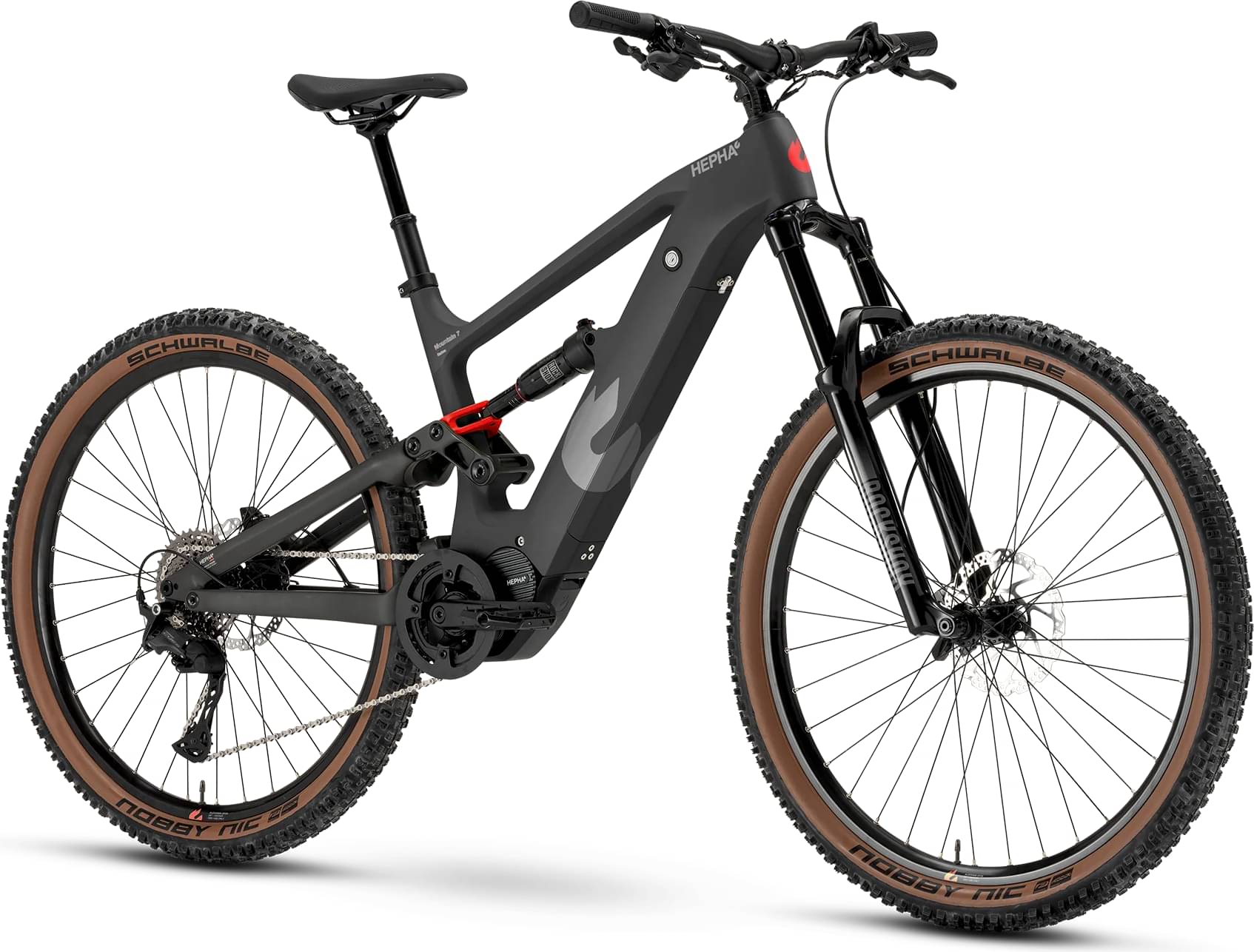

hepha All Mountain 7 Carbon LTD 2024
2024 E-bike
Estimate price |
5,504$
Weight | 23.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Fork RockShox Psylo -
Groupset CUES -
Suspension Full -
Motor 250W 100Nm hub-drive -
Battery HEPHA BT-100B (804Wh) -
Drivetrain 1 × 11 -
Brakes Tektro Gemini Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hepha Monocoque Full Carbon Frame, 4-Link Virtual Pivot
Suspension Fork
Rock Shox Psylo Silver RC
Rear Shock
Rock Shox Deluxe Select R 210X55 LINEAR AIR
Drivetrain
Rear Derailleur
Shimano / RD-U6000 / CUES / 10/11-Speed
Shift Levers
Shimano / SL-U6000-10R / CUES
Cassette
Alloy BCD104, 36T,CL=50MM
Wheels
Front Hub
KT-T50F / KT-DCR1S5
Rims
Alex Rims / R25-1R 29" / 622×25
Tires
Schwalbe / Nobby Nic / 29” x 2.4”
Brakes
Brakes
Tektro HD-M535
Brake Levers
Tektro HD-M535
Cockpit
Stem
3D-Forged SAND BLAST R 7d / E 50mm / C 31.8mm
Handlebar
Alloy 6061 / Width 780mm / Barbore: 31.8mm
Grips
130L, CLOSE END, W/O END CAP
Seat
Saddle
Selle Royal Vivo 7823 BLACK COREL
Seatpost
KS / 900i / Dropper / Travel: 150mm
Motor & Battery
Motor
HEPHA P101C (100 Nm / 250 W / 25 km/h)
Battery
HEPHA BT-100B (804Wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.358 mm | 1.32 mm |
| Bottom Bracket Height | 354 mm | 354 mm |
| Front Center | 768 mm | 792 mm |
| Rake | 66 mm | 66 mm |
| Trail | 121 mm | 121 mm |
| Stack | 618 mm | 627 mm |
| Reach | 455 mm | 475 mm |
| Top Tube Length | 632 mm | 655 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 124 mm |
| Chainstay Length | 458 mm | 458 mm |
| Wheelbase | 1225 mm | 1249 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Wheels | 29" | 29" |
