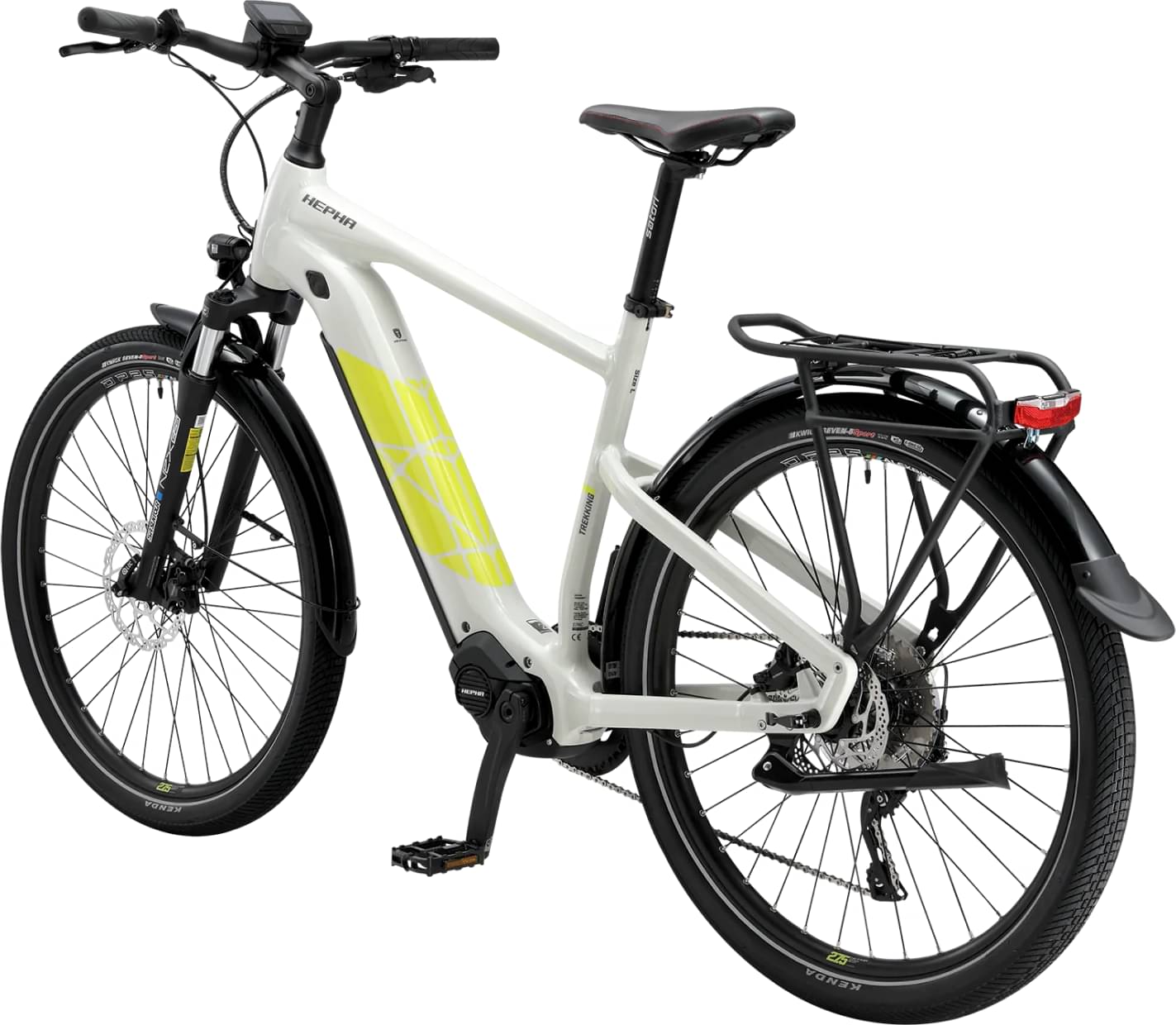

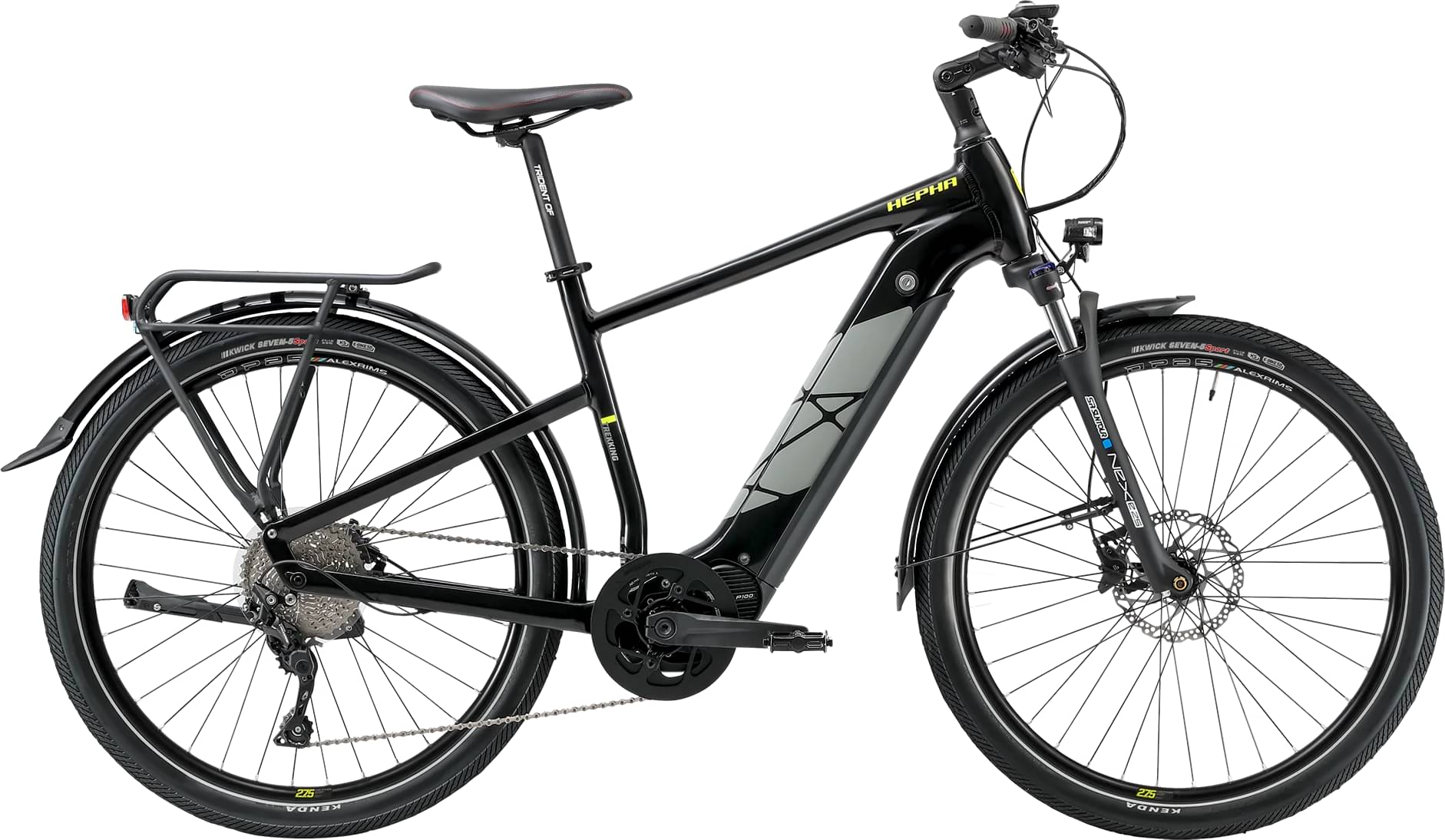

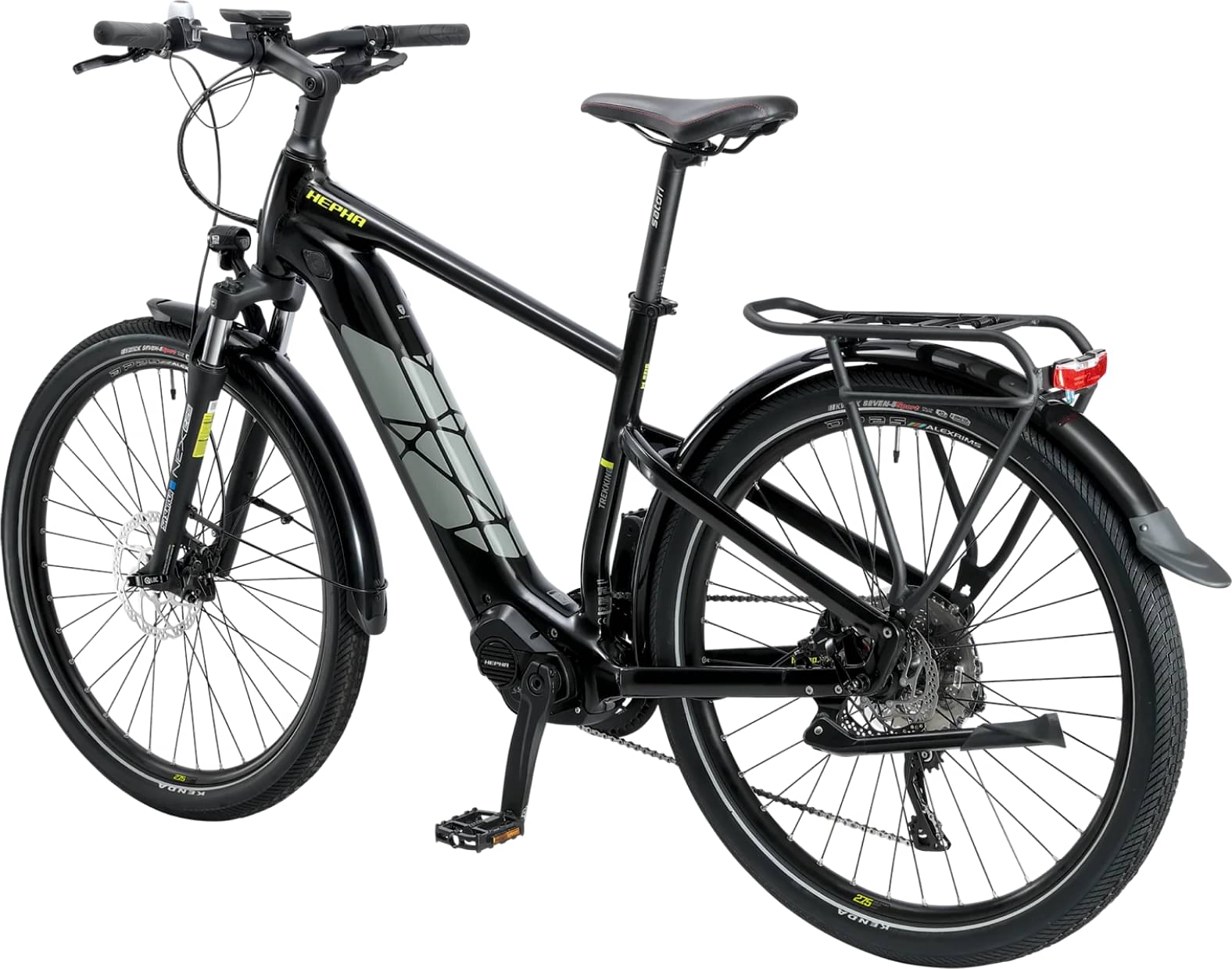

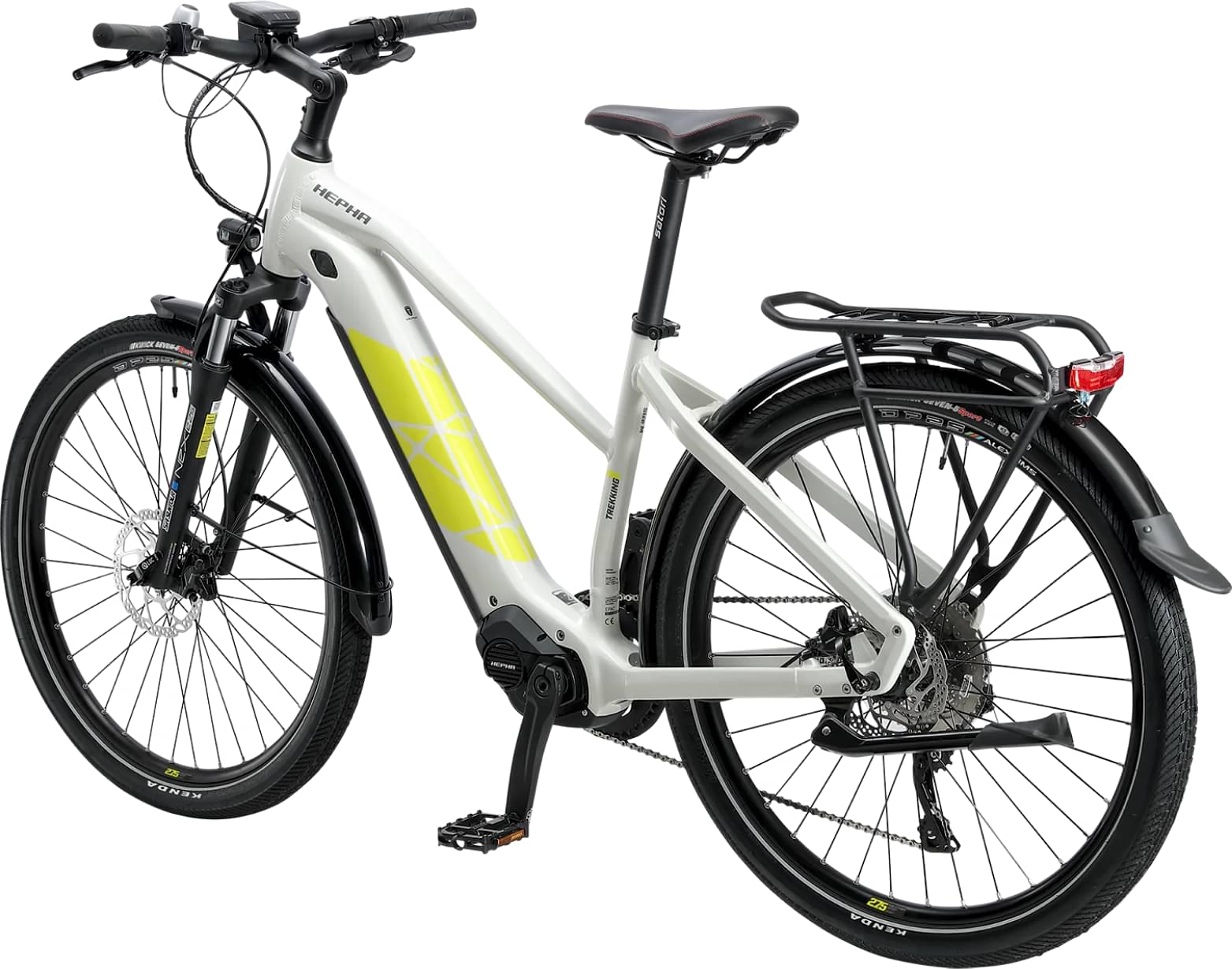

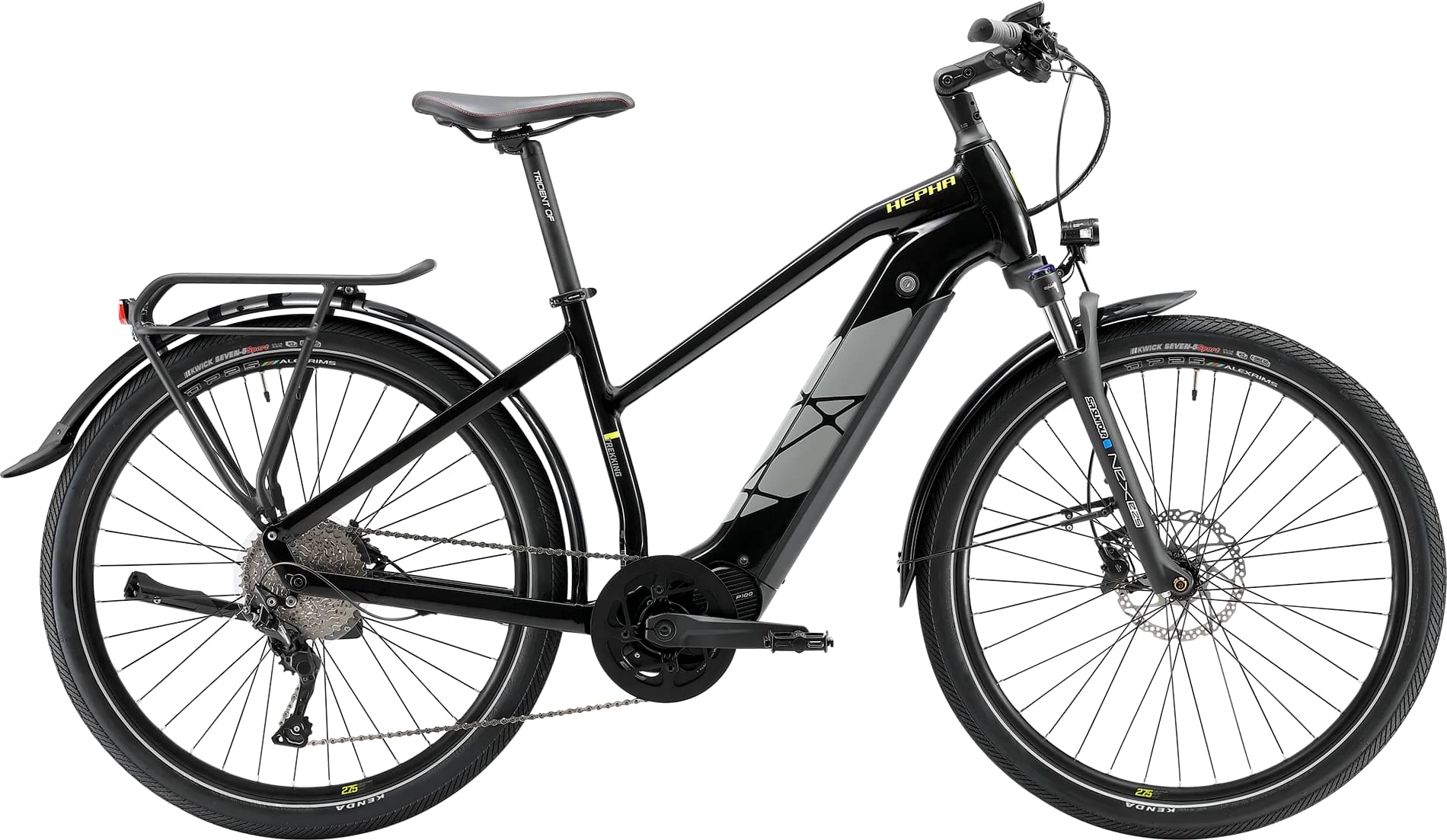

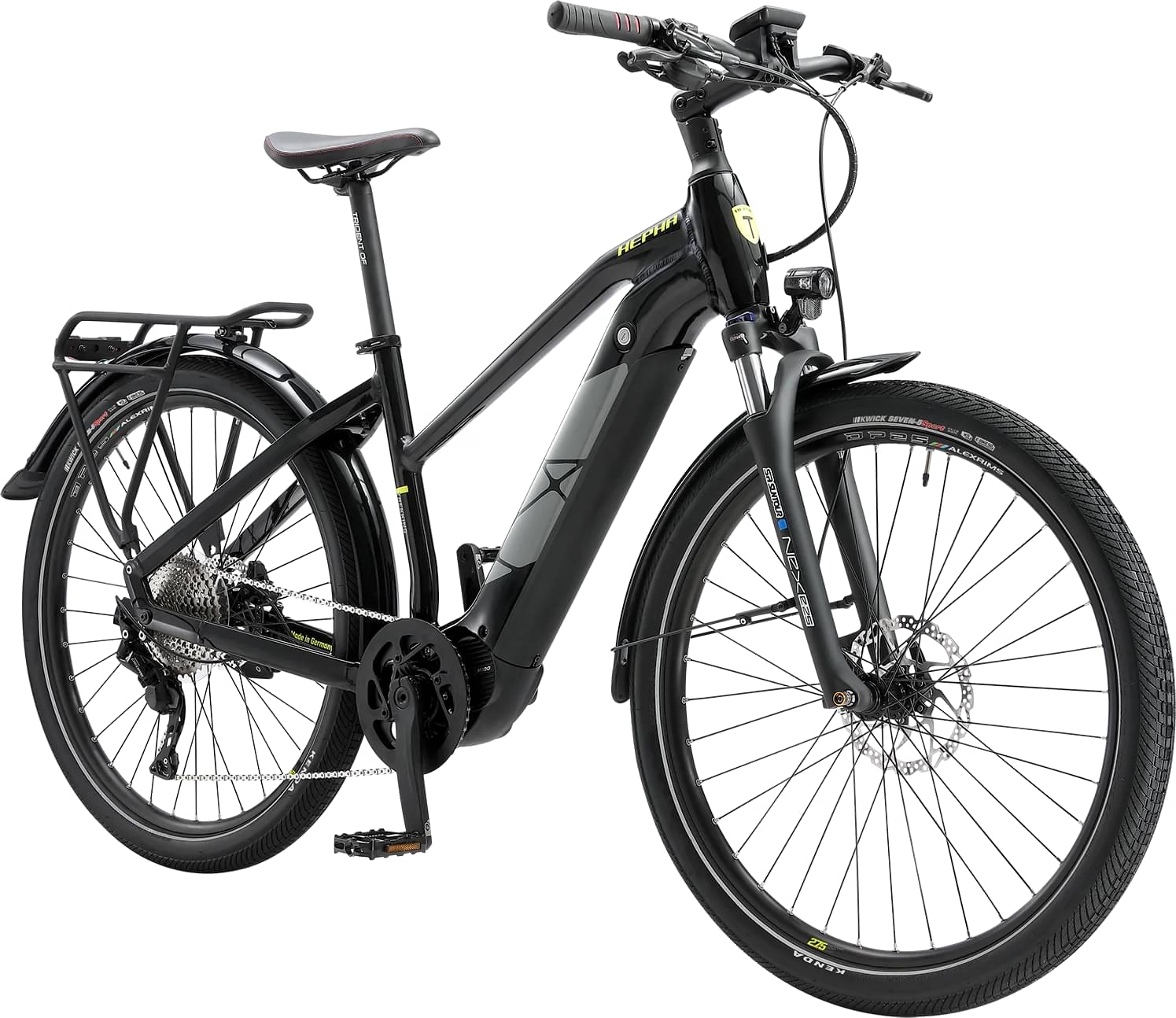

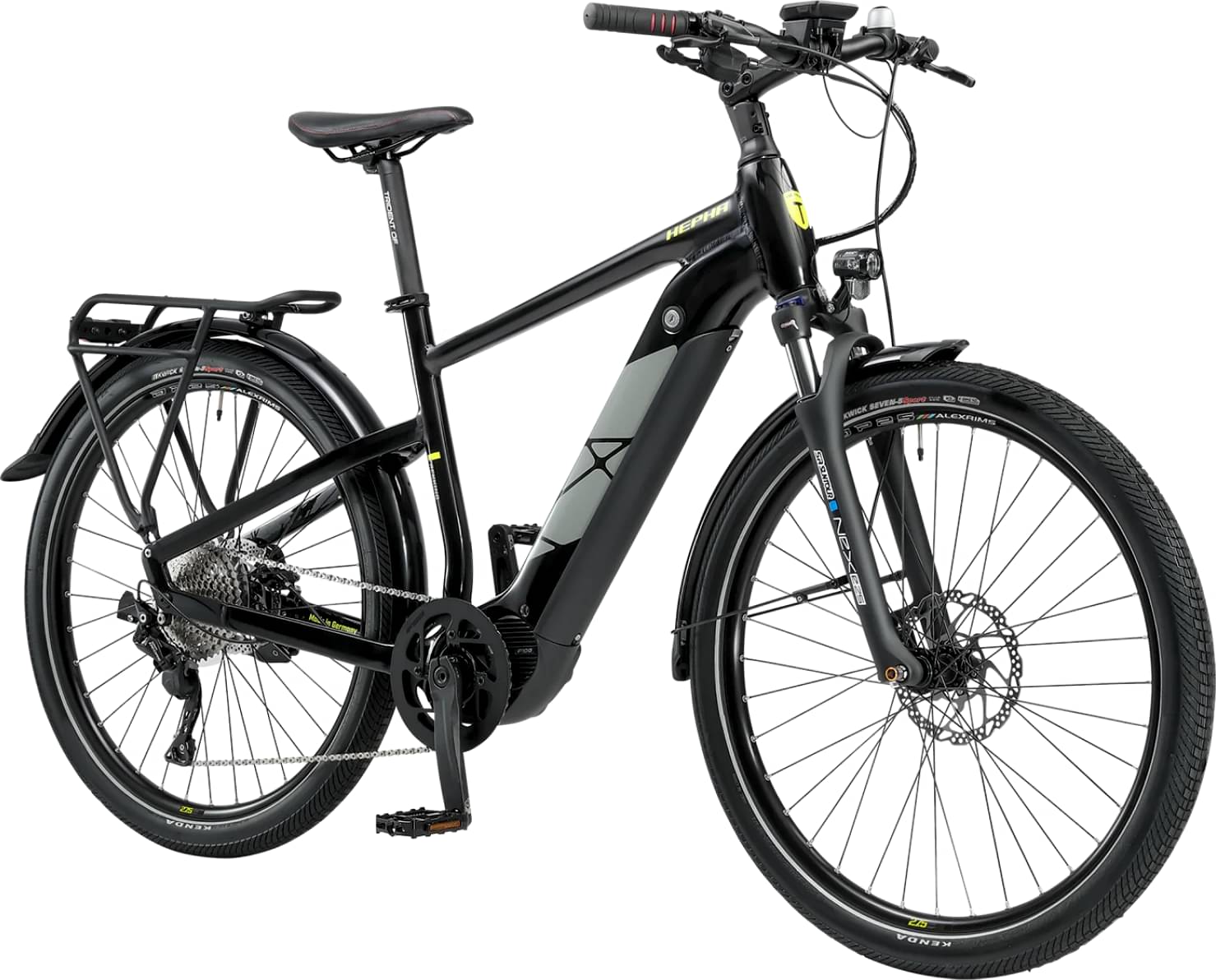

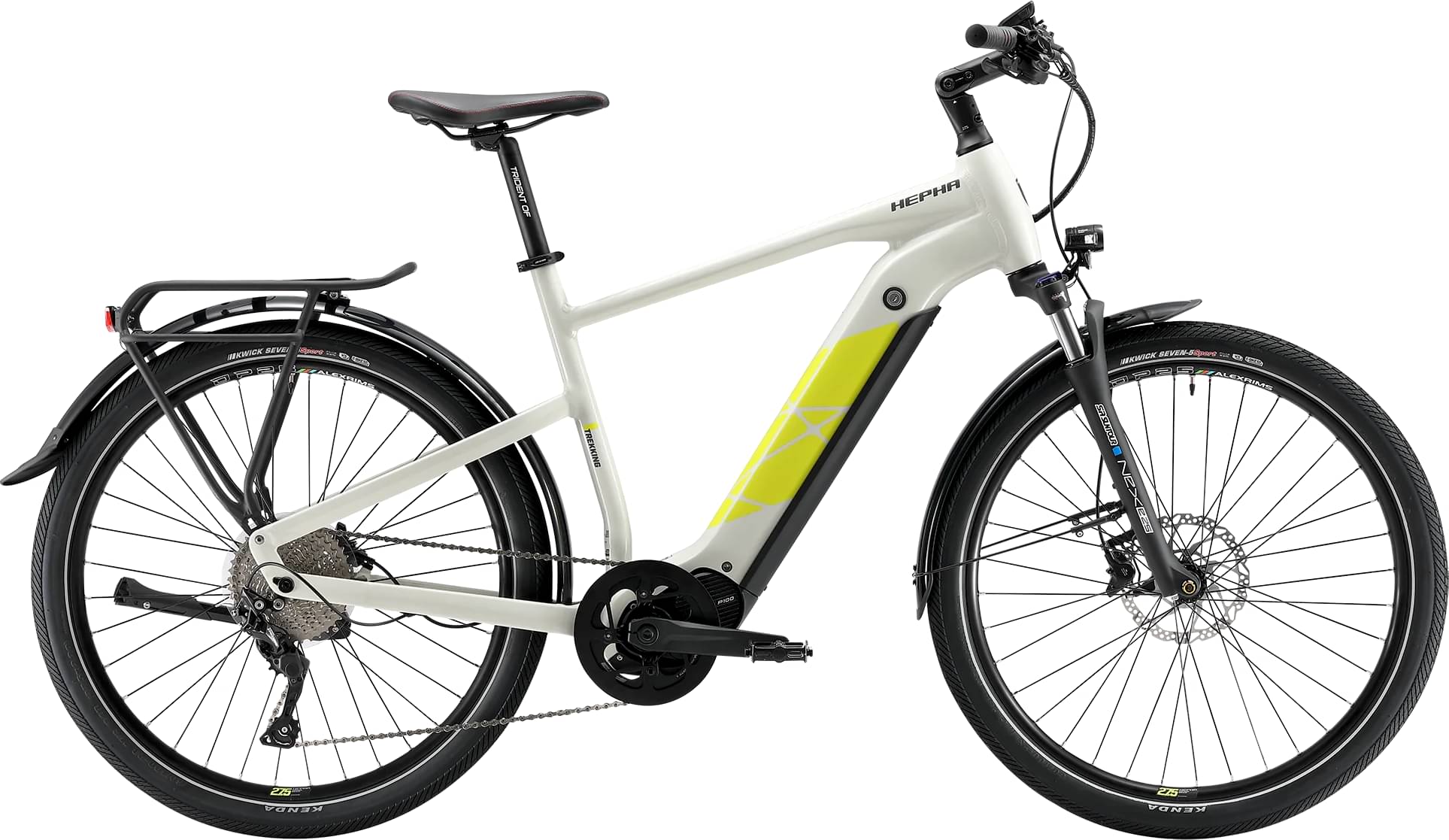

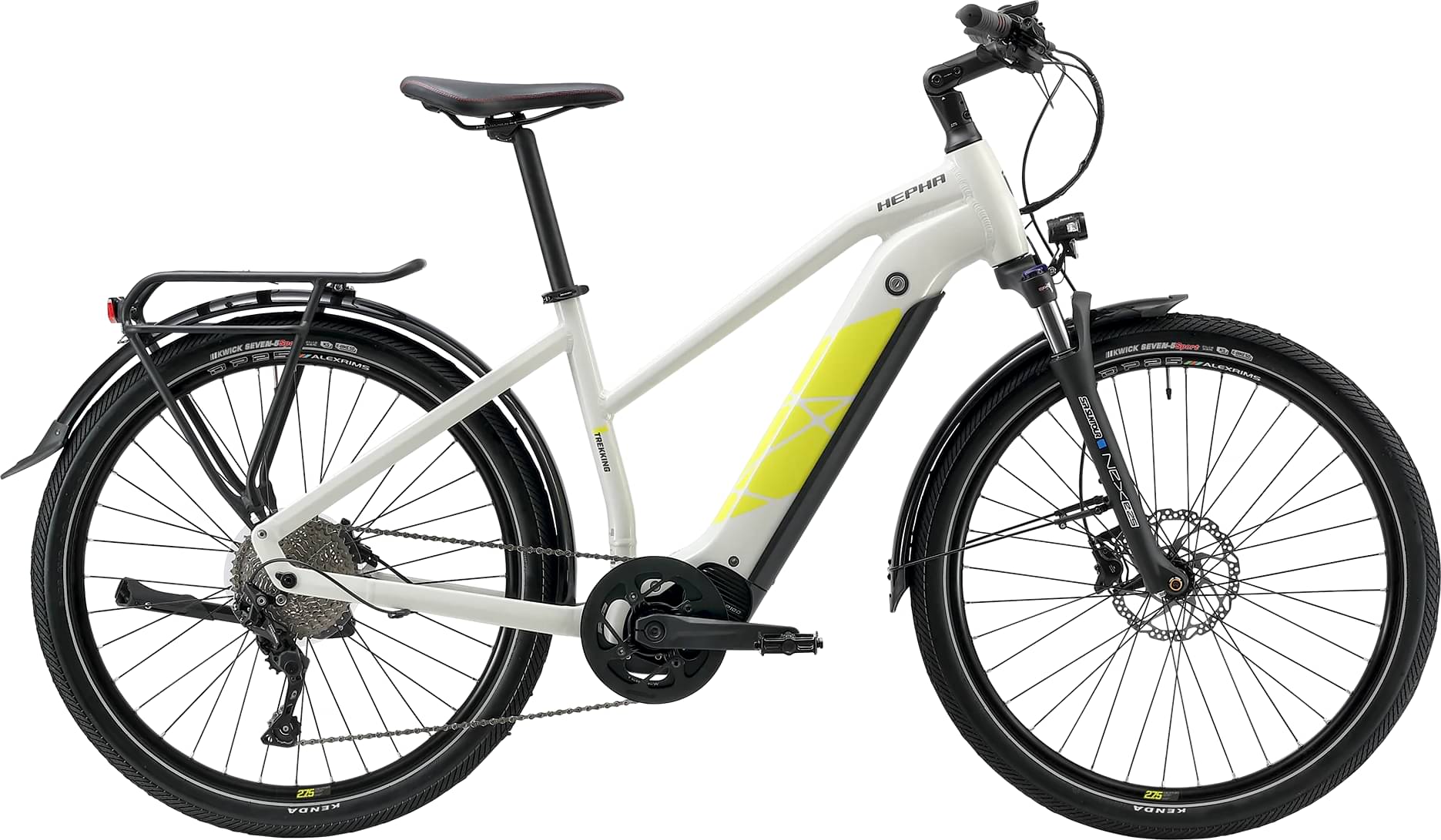

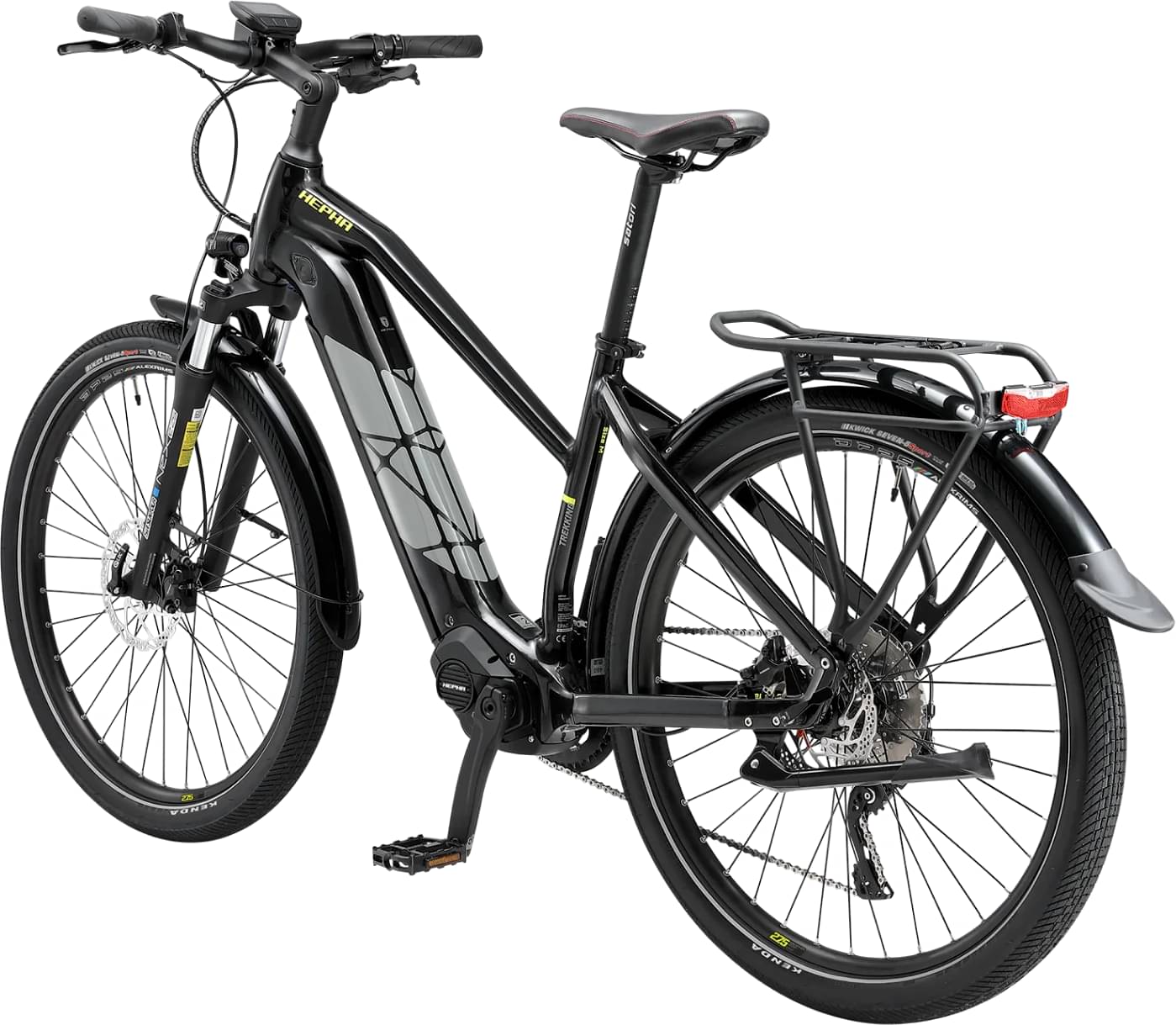

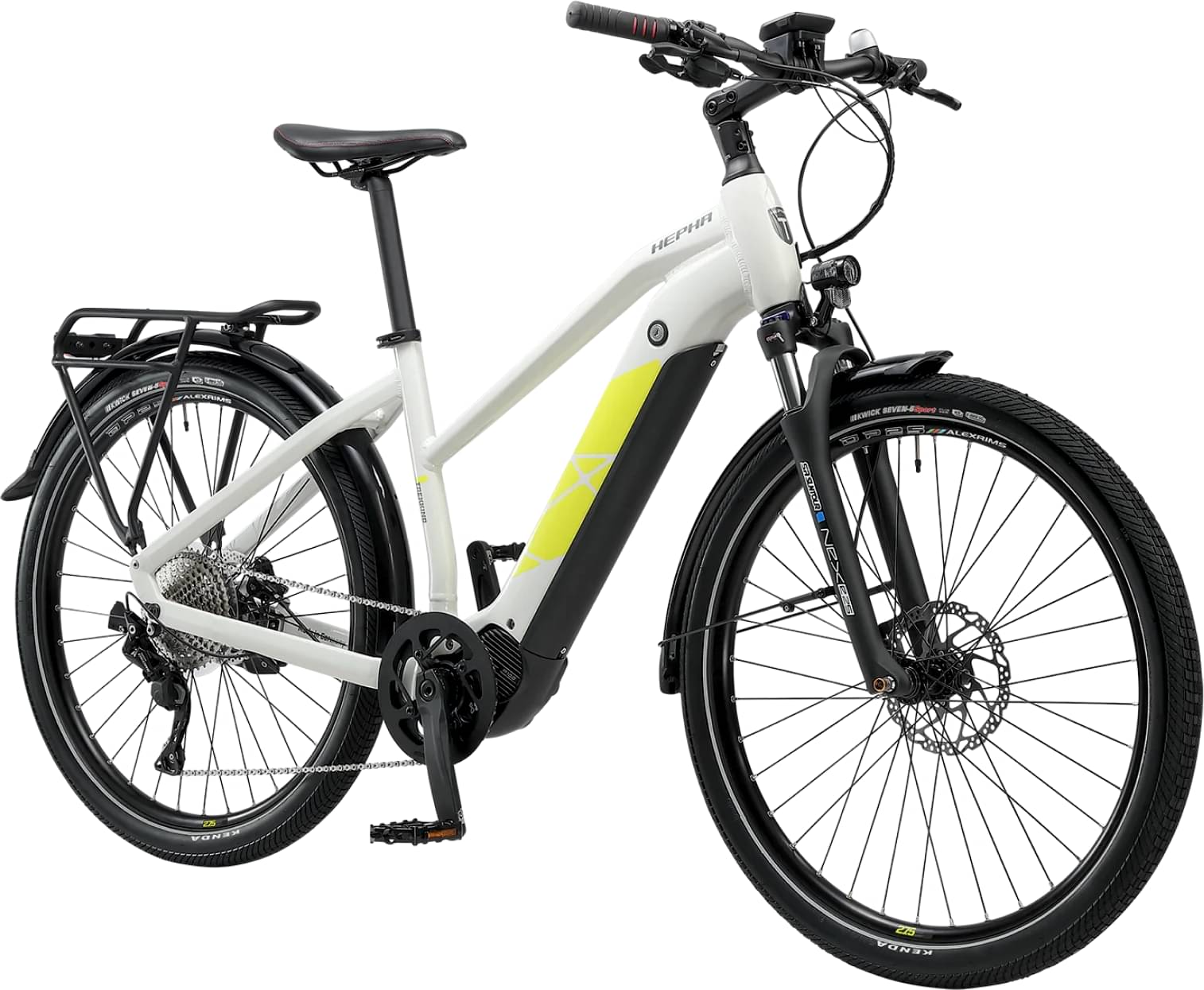

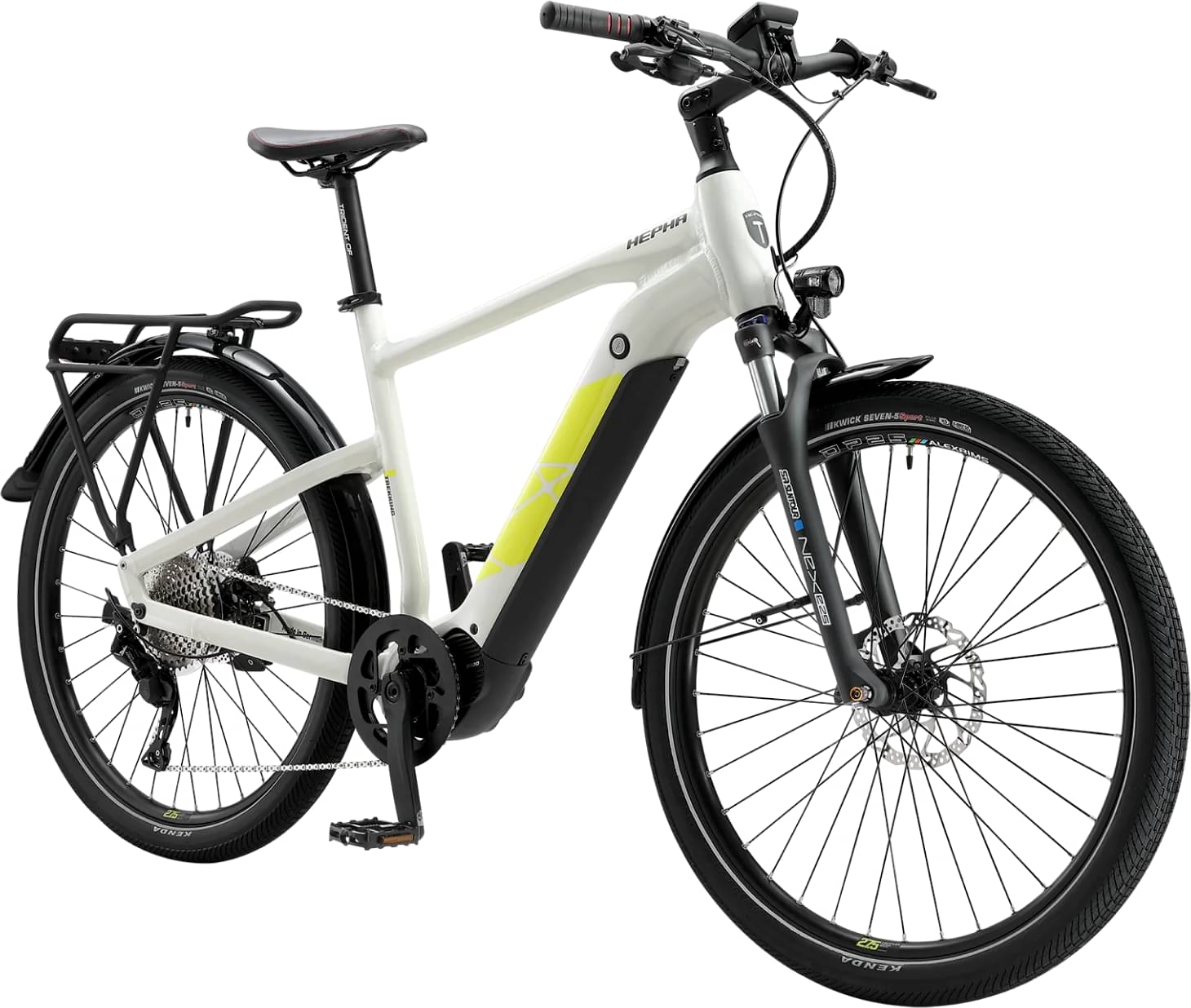

hepha Trekking 7 SE Long Range 2024
2024 E-bike
Estimate price |
3,210$
Weight | 27 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset microSHIFT -
Suspension Hardtail -
Motor 250W 80Nm hub-drive -
Battery HEPHA BT-700BH (708 Wh) -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy Classic
Suspension Fork
Suntour SF19 NEX-25-C NLO DS, TRAVEL:63mm
Drivetrain
Rear Derailleur
Microshift / RD-M665L / 10-Speed
Shift Levers
Microshift / SL-M850 / 10-Speed
Cassette
Alloy BCD104, 44T,CL=50MM
Wheels
Front Hub
KT-TZ0F / KT-TZYR
Rims
Alex Rims / R25-1R / 27.5" / 584×25
Tires
Kenda / K1052 / 27.5" x 2.2"
Brakes
Brakes
Tektro HD-M280
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Satori UP2+ / Adjustable Stem / 110mm
Handlebar
Alloy 6061 / Width 660mm / Barbore: 31.8mm
Grips
VELO VLG-1389D3 133mm
Motor & Battery
Motor
HEPHA P101C (80 Nm / 250 W / 25 km/h)
Battery
HEPHA BT-700BH (708 Wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.561 mm | 1.46 mm |
| Front Center | 684 mm | 723 mm |
| Rake | 43 mm | 43 mm |
| Trail | 84 mm | 84 mm |
| Stack | 637 mm | 647 mm |
| Reach | 408 mm | 443 mm |
| Top Tube Length | 591 mm | 629 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 490 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 160 mm | 170 mm |
| Chainstay Length | 484 mm | 484 mm |
| Wheelbase | 1162 mm | 1201 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Standover Height | 720 mm | 720 mm |
| Wheels | 650 | 650 |
