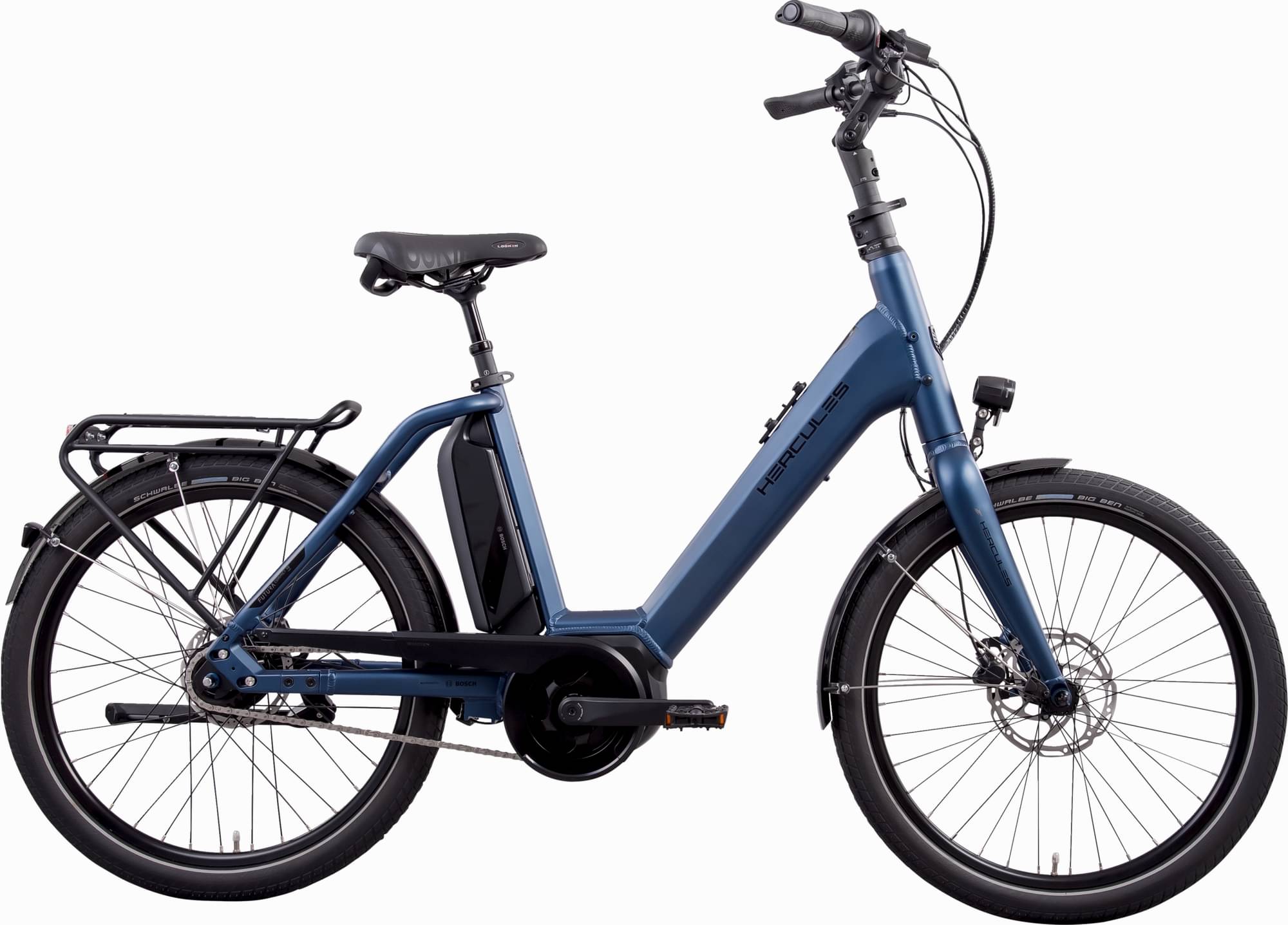

hercules Futura Compact R8 24 Zoll 2024
2024 E-bike
Estimate price |
3,954$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain Internally Geared Hub -
Brakes Coaster
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
AL, rigid, shaft 1.5”
Drivetrain
Shift Levers
SHIMANO SL-C6000-8
Cassette
SHIMANO 20T
Crank
FSA CK-220
Chain
KMC Z1eHX
Wheels
Front Hub
SHIMANO HB-RM35, QR, center lock
Rear Hub
SHIMANO Nexus 8-speed, coaster brake
Rims
DDM-1
Tires
SCHWALBE Big Ben Performance, RaceGuard, 55-507
Brakes
Brakes
TEKTRO HD-T280
Cockpit
Stem
ZECURE AllUp + Up2+, adjustable, 150 mm height adjustment
Handlebar
KALLOY HB-TR-2, 31.8 mm, 25° backsweep
Seat
Saddle
SELLE ROYAL Lookin Relaxed
Seatpost
LIMOTEC S1, 400 mm, Ø27.2 mm, 50 mm travel
Motor & Battery
Motor
up to 25 km/h
Battery
Bosch PowerPack 400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 47cm |
|---|---|---|
| Stack Reach Ratio | 1.483 mm | 1.483 mm |
| Front Center | 661 mm | 661 mm |
| Rake | 45 mm | 45 mm |
| Stack | 623 mm | 623 mm |
| Reach | 420 mm | 420 mm |
| Top Tube Length | 610 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 460 mm |
| Head Tube Angle | 72 ° | 72 ° |
| Chainstay Length | 485 mm | 485 mm |
| Wheelbase | 1144 mm | 1144 mm |
| Bottom Bracket Drop | 30 mm | 30 mm |
| Wheels | 24" | 24" |
