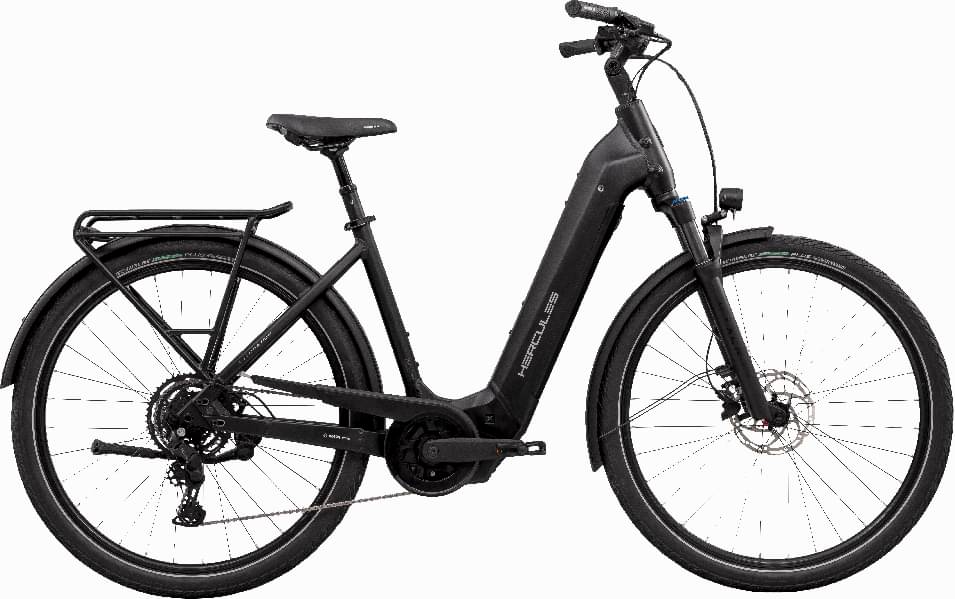

hercules Futura HD I-9 2025
2025 E-bike
Estimate price |
4,652$
Weight | 27 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour XCR -
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Suntour XCR34, Stahlfeder, Schaft 1.1/8” - 1.5”
Drivetrain
Rear Derailleur
Shimano CUES RD-U4000-9
Shift Levers
Shimano SL-U4000-9
Cassette
Shimano CS-LG300-9, 11-46T
Crank
Hercules Strada, Isis
Chain
SHIMANO CN-LG500
Chain Guide
HORN Catena 18
Pedals
Marwi SP-180, rutschfest
Wheels
Rims
RODI Viper
Spokes
Niro, schwarz, 2 mm
Tires
28 x 2.15
Brakes
Brakes
Tektro HD T-390
Brake Levers
Tektro HD T-390
Cockpit
Stem
Zecure Hatchback, A-head, verstellbar, SP connect
Handlebar
Zecure City, AL, 31.8 mm, 35° backsweep
Grips
Herrmans Nucore Tour Wave
Headset
Acros AZF-579 ICR, semi integrated, 1.1/8” - 1.5”
Seat
Saddle
SELLE ROYAL Essenza Plus Moderate
Motor & Battery
Motor
Bosch Performance Line CX GEN5 (Smart System) 25/85 Nm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 49cm | 53cm | 57cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.662 mm | 1.692 mm | 1.652 mm | 1.578 mm | 1.567 mm |
| Front Center | 685 mm | 696 mm | 706 mm | 725 mm | 746 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 43 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm | 81 mm |
| Stack | 683 mm | 702 mm | 702 mm | 702 mm | 721 mm |
| Reach | 411 mm | 415 mm | 425 mm | 445 mm | 460 mm |
| Top Tube Length | 620 mm | 630 mm | 640 mm | 660 mm | 680 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Chainstay Length | 483 mm | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1159 mm | 1170 mm | 1180 mm | 1200 mm | 1221 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
