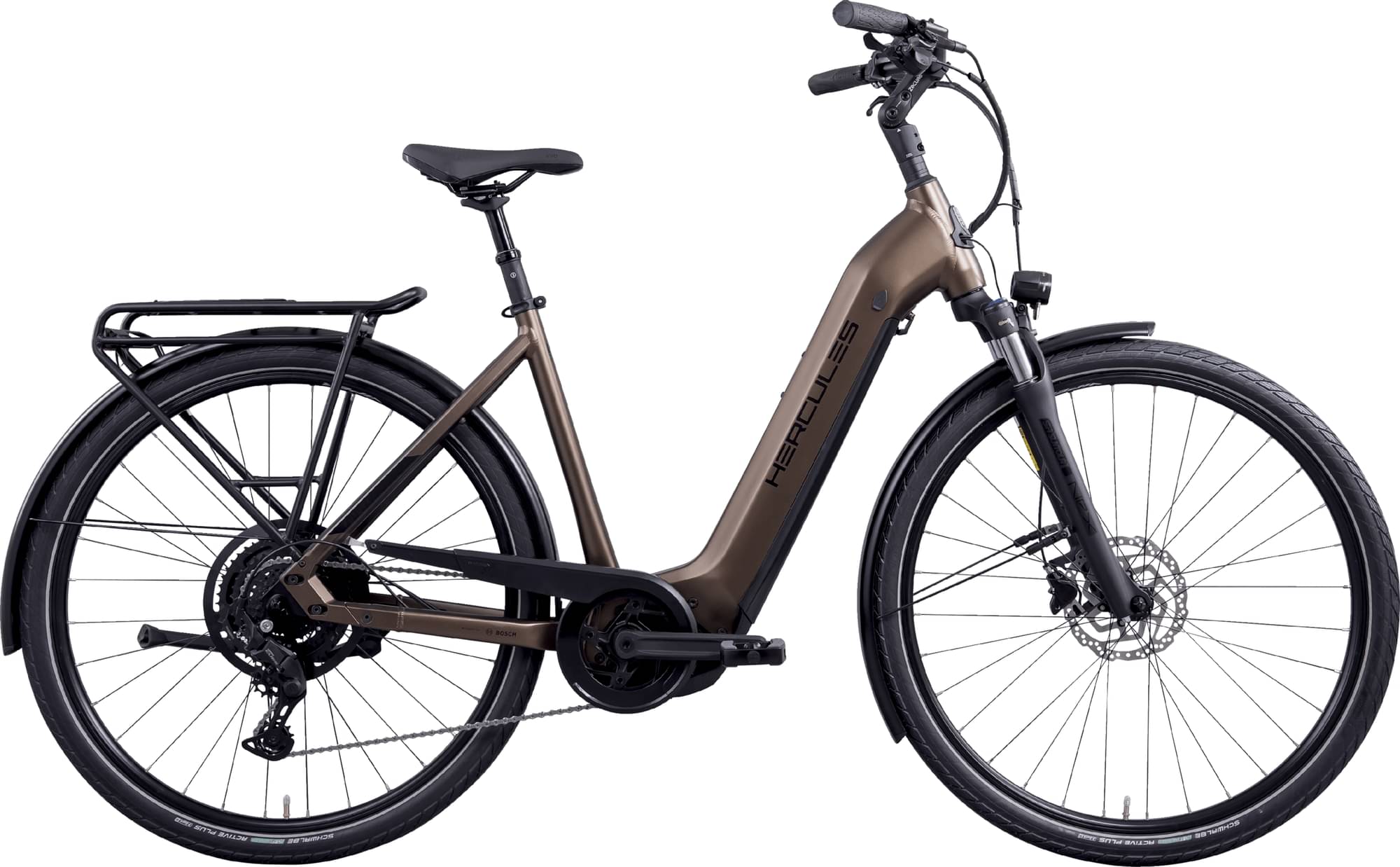

hercules Futura I-9 2024
2024 E-bike
Estimate price |
4,303$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 625 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR SUNTOUR NEX-E25, 63 mm Federweg, Lockout, einstellbar, Schaft 1.1/8”
Drivetrain
Rear Derailleur
SHIMANO Cues RD-U4000
Shift Levers
SHIMANO SL-U4000R
Cassette
SHIMANO CS-LG300, 11-46T
Crank
FSA CK-320
Chain
SHIMANO CN-LG500
Chain Guide
HORN Catena 18
Pedals
Marwi SP828, AL
Wheels
Front Hub
SHIMANO HB-QC300, 15x100 mm, Centerlock
Rear Hub
SHIMANO FH-QC300, 9x135 mm, Centerlock
Rims
Rodi Viper 19
Spokes
Niro, schwarz, 2 mm
Tires
28 x 2,00
Brakes
Brakes
SHIMANO BR-MT200
Brake Levers
SHIMANO BL-MT201
Cockpit
Stem
ZECURE UP2+, A-head, verstellbar
Handlebar
Trekking ZECURE, AL, 31.8 mm, 35° backsweep
Grips
Ergo, integrierte Klemmung
Headset
Acros AZF-642, semi integrated, reduziert 1.1/8” - 1.5”
Seat
Saddle
Selle Royal Vivo Ergo Sport Woman
Seatpost
Limotec S1, Ø30.9 mm, 350 mm, 50 mm travel
Motor & Battery
Motor
Bosch Performance Line CX (Smart System) 25/85 Nm
Battery
Bosch PowerTube 625
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 49cm | 53cm | 57cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.492 mm | 1.492 mm | 1.506 mm | 1.505 mm |
| Front Center | 681 mm | 681 mm | 686 mm | 697 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 101 mm | 101 mm | 101 mm | 101 mm |
| Stack | 625 mm | 625 mm | 634 mm | 644 mm |
| Reach | 419 mm | 419 mm | 421 mm | 428 mm |
| Top Tube Length | 610 mm | 610 mm | 615 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1145 mm | 1145 mm | 1150 mm | 1161 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
