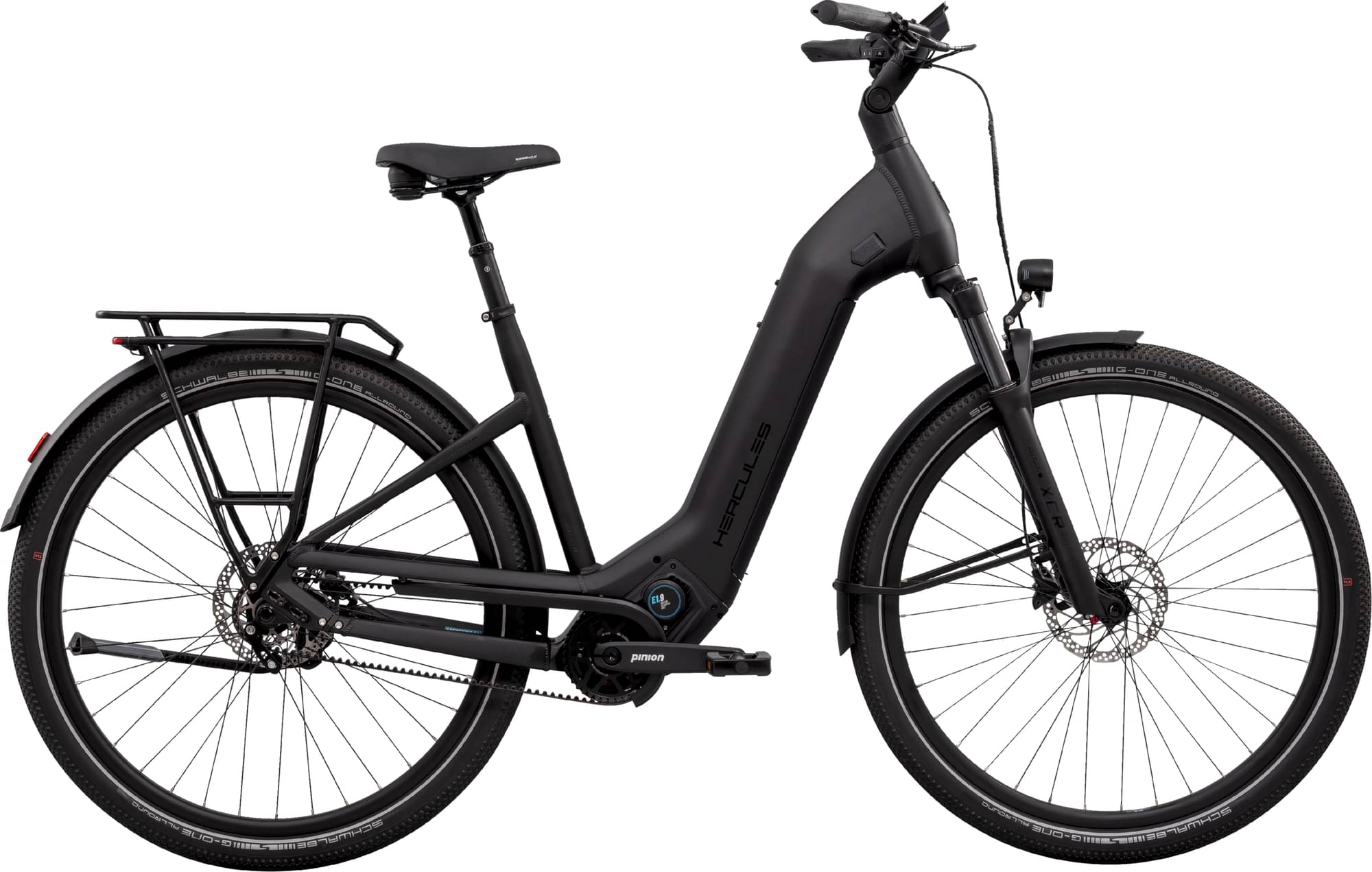

hercules Futura I-P9 2025
2025 E-bike
Estimate price |
6,979$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour XCR -
Groupset Pinion -
Suspension Hardtail -
Motor 85Nm hub-drive -
Drivetrain Belt Drive -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Suntour XCR34, luftgefedert, Schaft 1.1/8” - 1.5”
Drivetrain
Shift Levers
Pinion, elektronische Schalteinheit
Cassette
GATES ® CDX 24T
Crank
Pinion, P8534, boost
Bottom Bracket
Pinion, press-fit
Chain Guide
Horn Catena A08, AL
Pedals
Hercules C-111, rutschfest
Wheels
Rims
RYDE Andra 25
Spokes
VR: Niro, 2 mm / HR: 2.34 mm
Tires
29 x 2,25
Brakes
Brakes
SHIMANO BR-MT200
Brake Levers
SHIMANO BL-MT201
Cockpit
Stem
Hercules AS SUV-I2, A-head, verstellbar
Handlebar
Zecure City, AL, 31.8 mm, 35° backsweep
Grips
Hercules Ergo, mit integrierter Klemmung
Headset
FSA No. 55R, semi integrated, 1.1/8 - 1.5”
Seat
Saddle
SELLE ROYAL Essenza Plus Moderate
Motor & Battery
Motor
Pinion MGU E1.9 25/85Nm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.79 mm | 1.745 mm | 1.772 mm |
| Front Center | 684 mm | 694 mm | 705 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 698 mm | 698 mm | 716 mm |
| Reach | 390 mm | 400 mm | 404 mm |
| Top Tube Length | 610 mm | 620 mm | 630 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1148 mm | 1158 mm | 1169 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
