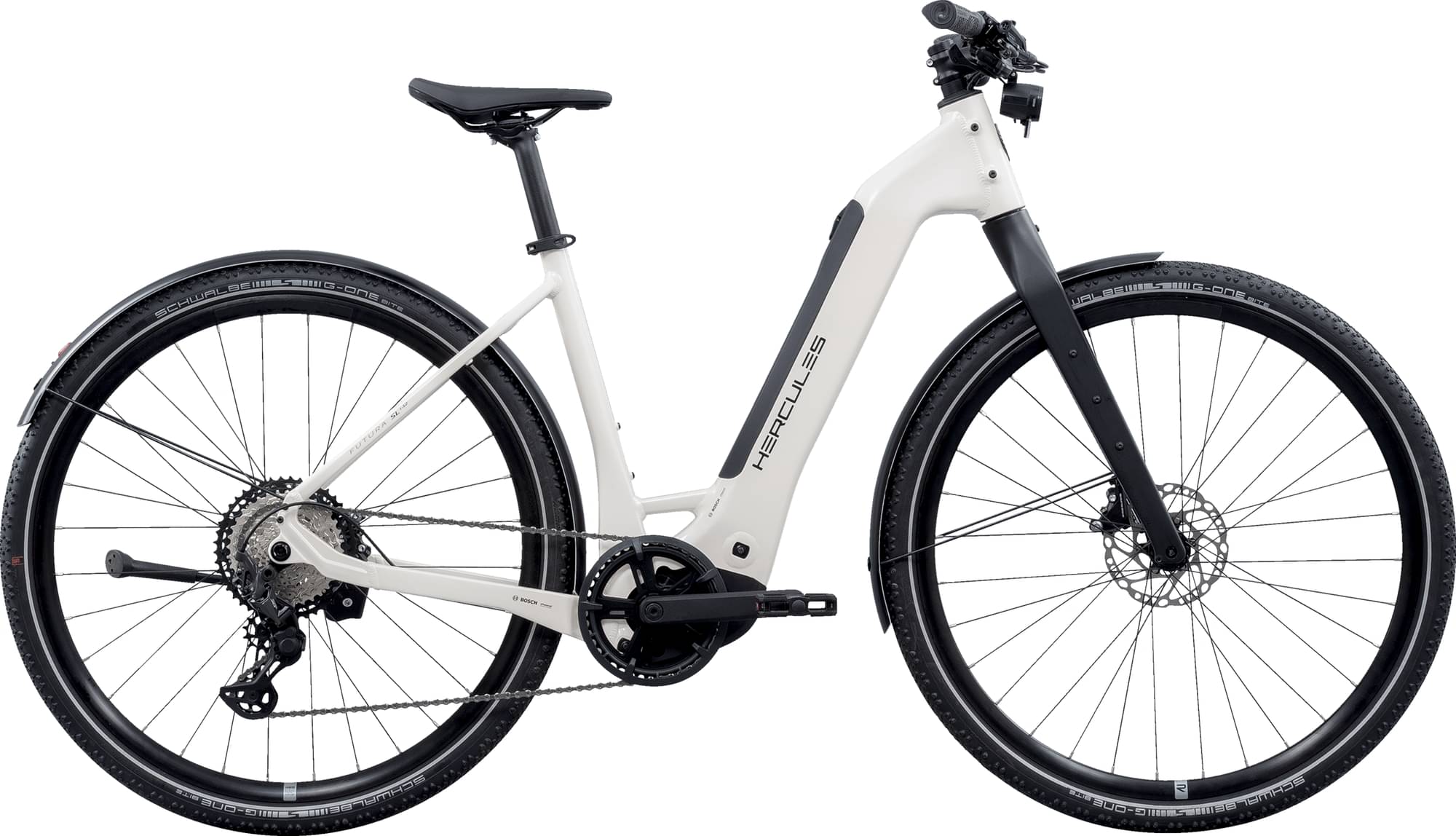

hercules Futura SL I-12 2025
2025 E-bike
Estimate price |
4,652$
Weight | 17.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT -
Suspension Rigid -
Motor Bosch 600W 55Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Carbon starr, R37-series, Schaft 1.1/8” - 1.5”
Drivetrain
Rear Derailleur
Shimano Deore XT RD-M8100-12
Shift Levers
Shimano SL-M8100-12
Cassette
Shimano CS-M8100-12, 10-51T
Crank
Hercules Classic, Isis
Chain
SHIMANO CN-M8100
Chain Guide
Kettenschutzscheibe
Pedals
Marwi SP-180, rutschfest
Wheels
Rims
Radiale G55
Spokes
Niro, schwarz, 2 mm
Tires
28 x 2,00
Brakes
Brakes
SHIMANO BR-RS405
Brake Levers
SHIMANO BL-RS600
Cockpit
Stem
Hercules AS007N, 7°, mit Adapter für Scheinwerfer
Handlebar
Hercules Trekking, AL, 31.8 mm, 15° backsweep
Grips
Hercules VLG-1777D2, mit integrierter Klemmung
Headset
Acros Headset 1.5” ICR
Seat
Saddle
Fizik Aidon
Motor & Battery
Motor
Bosch Performance Line SX (Smart System) 25/55 Nm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48cm | 53cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.655 mm | 1.636 mm | 1.62 mm | 1.588 mm |
| Front Center | 631 mm | 643 mm | 657 mm | 683 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 74 mm | 74 mm | 74 mm | 74 mm |
| Stack | 629 mm | 638 mm | 648 mm | 667 mm |
| Reach | 380 mm | 390 mm | 400 mm | 420 mm |
| Top Tube Length | 560 mm | 573 mm | 586 mm | 624 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73 ° |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1085 mm | 1098 mm | 1112 mm | 1138 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
