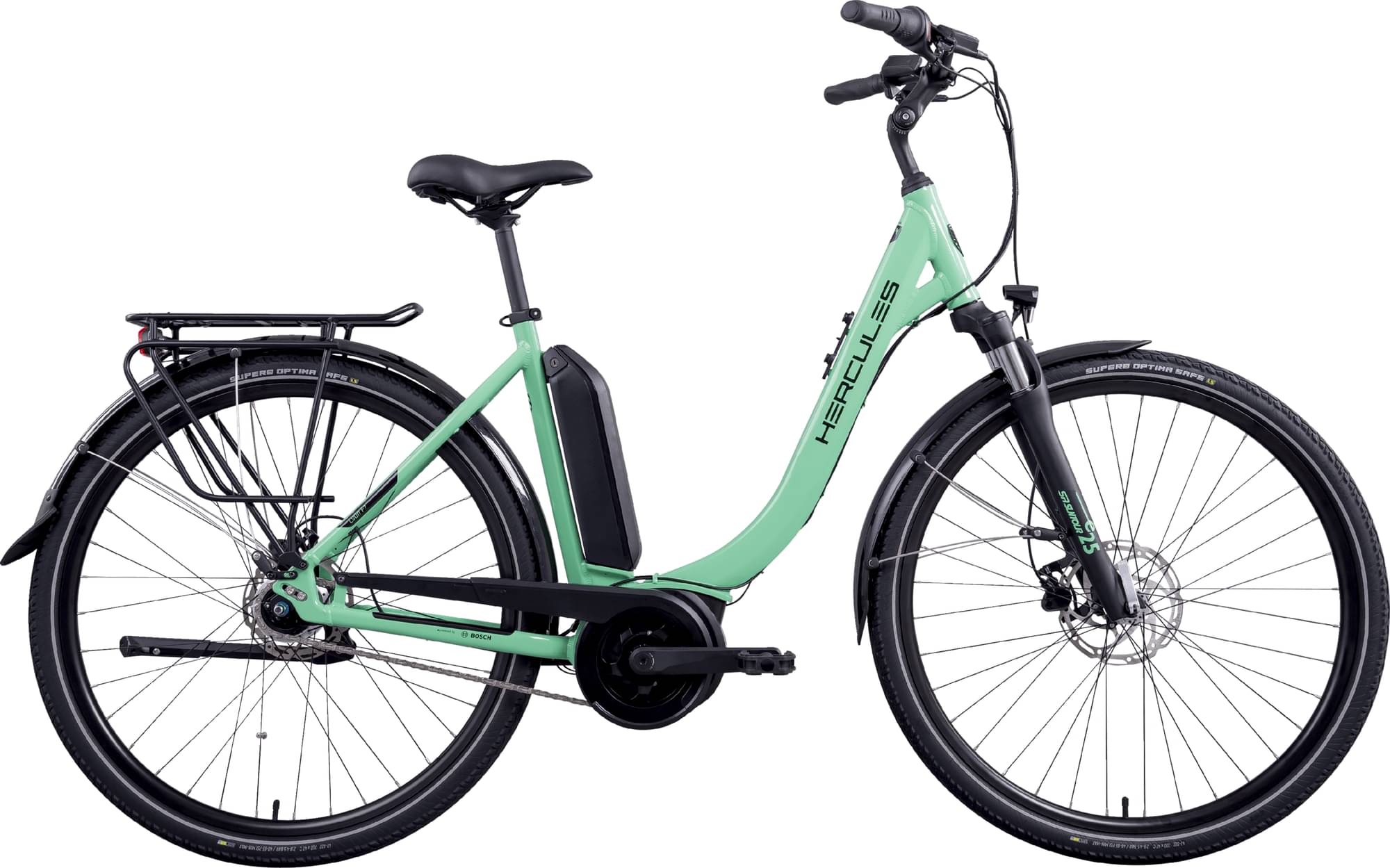

hercules Lyon F7 2024
2024 E-bike
Estimate price |
2,791$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour
-
Groupset Shimano, FSA -
Suspension Hardtail -
Motor Bosch 600W 40Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR SUNTOUR CR85, 63 mm Federweg, einstellbar, Schaft 1.1/8”
Drivetrain
Shift Levers
SHIMANO SG-C3001-7
Cassette
SHIMANO 19T
Crank
FSA CK-220
Chain
KMC Z610
Chain Guide
HORN Catena 18
Pedals
Wellgo C-157, Kunststoff 2K
Wheels
Front Hub
Formula CL-31, Centerlock QR
Rear Hub
SHIMANO SG-C3001-7D, 135 mm, Centerlock
Rims
DDM-2
Spokes
Stahl, schwarz, 2 mm, h: ED 2-2.34 mm
Tires
28 x 2,00
Brakes
Brakes
TEKTRO HD-T281
Brake Levers
TEKTRO HD-T281
Cockpit
Stem
Kalloy AL-822, 180 mm Schaft 1 1/8”, 120 mm, verstellbar
Handlebar
Tour, AL, 37° backsweep
Grips
Ergo 2K
Headset
FSA TH-806ST, semi integrated 1.1/8”
Seat
Saddle
City DDK-225A2 Foaming
Seatpost
Kalloy SP-F102, Ø27.2 mm, 350 mm, 7 mm offset
Motor & Battery
Motor
Bosch Active Line (Smart System) 25/40Nm
Battery
Bosch PowerPack 400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm |
|---|---|---|---|
| Stack Reach Ratio | 1.765 mm | 1.697 mm | 1.721 mm |
| Front Center | 663 mm | 678 mm | 694 mm |
| Rake | 41 mm | 41 mm | 41 mm |
| Trail | 97 mm | 97 mm | 97 mm |
| Stack | 662 mm | 662 mm | 685 mm |
| Reach | 375 mm | 390 mm | 398 mm |
| Top Tube Length | 590 mm | 605 mm | 620 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Chainstay Length | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1159 mm | 1174 mm | 1191 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
