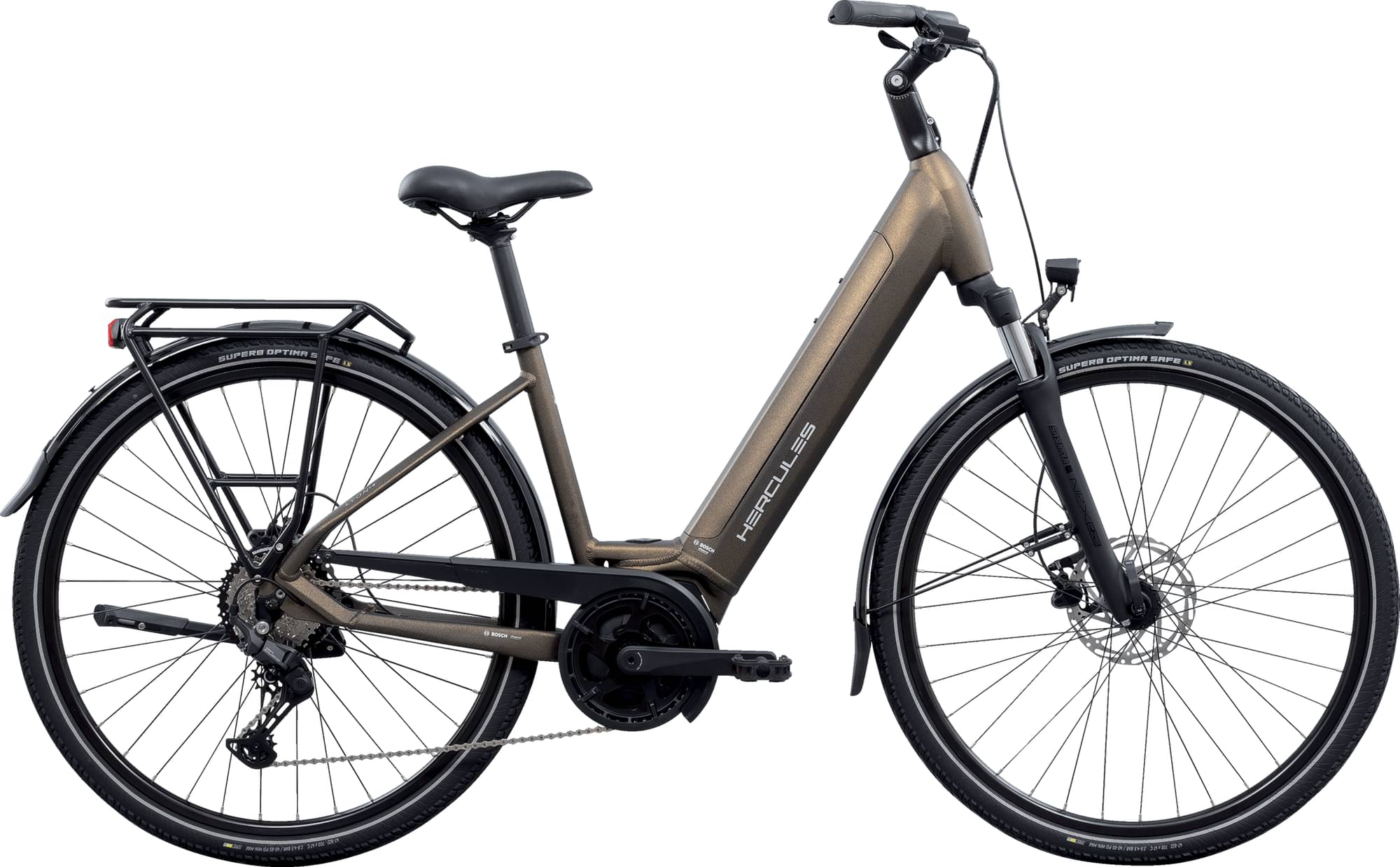

hercules Lyon I-8 2025
2025 E-bike
Estimate price |
3,489$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NEX -
Groupset Shimano, FSA -
Suspension Hardtail -
Motor Bosch 600W 75Nm mid-drive -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR Suntour NEX-E25, Schaft 1.1/8”
Drivetrain
Rear Derailleur
Shimano Essa RD-U2000-8
Shift Levers
Shimano SL-M315-8
Cassette
Shimano CS-HG400, 11-45T
Crank
FSA CK-220
Chain
KMC 8X
Chain Guide
HORN, Catena 17
Pedals
Hercules, C-157, rutschfest
Wheels
Rims
DDM-11
Spokes
Stahl, schwarz, v: 2 mm, h: 2.3 mm
Tires
28 x 1,75
Brakes
Brakes
TEKTRO HD-T281
Brake Levers
TEKTRO HD-T281
Cockpit
Stem
Hercules AS-ZGD10, A-head, verstellbar
Handlebar
Hercules Tour, AL-030S, AL, 31.8 mm, 34° backsweep
Grips
Hercules Ergo VLG-1551-AD3, mit integrierter Klemmung
Headset
FSA, 57SC, semi integrated, 1.1/8” - 1.5”
Seat
Saddle
Hercules City, mit Kantenschoner und Kloben
Motor & Battery
Motor
Bosch Performance Line (Smart System) 25/75 Nm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.726 mm | 1.683 mm | 1.642 mm |
| Front Center | 684 mm | 694 mm | 704 mm |
| Rake | 41 mm | 41 mm | 41 mm |
| Trail | 97 mm | 97 mm | 97 mm |
| Stack | 675 mm | 675 mm | 675 mm |
| Reach | 391 mm | 401 mm | 411 mm |
| Top Tube Length | 610 mm | 620 mm | 630 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Chainstay Length | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1155 mm | 1165 mm | 1175 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
