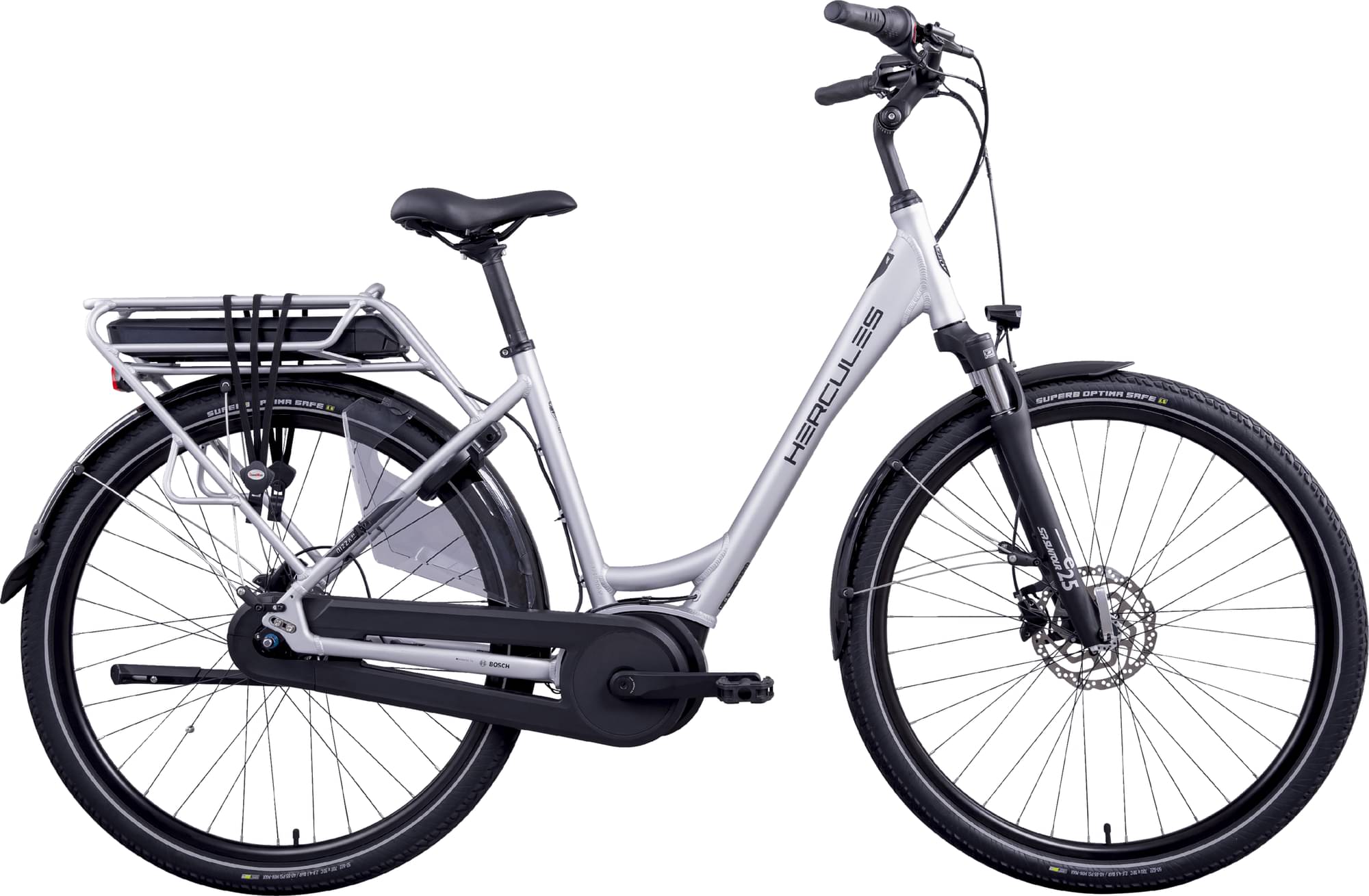

hercules Nizza F7 NL 2024
2024 E-bike
Estimate price |
2,981$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Shimano, FSA -
Suspension Hardtail -
Motor Bosch 600W 40Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR SUNTOUR NEX-E25, 63 mm Federweg, einstellbar, Schaft 1.1/8”
Drivetrain
Shift Levers
SHIMANO SG-C3001-7
Cassette
SHIMANO 18T
Crank
FSA CK-220
Chain
KMC Z610
Chain Guide
Hesling Ride 1.3, geschlossen
Pedals
Wellgo C-157, Kunststoff 2K
Wheels
Front Hub
Form CL-51QR, Centerlock, QR
Rear Hub
SHIMANO SG-C3001-7D, 135 mm, Centerlock
Rims
DDM-2
Spokes
Stahl, schwarz, 2 mm, h: ED 2-2.34 mm
Tires
28 x 2,00
Brakes
Brakes
SHIMANO BR-MT200
Brake Levers
SHIMANO MT201
Cockpit
Stem
Kalloy AL-822, 180 mm Schaft 1 1/8”, 100 mm, verstellbar
Handlebar
Tour, AL, 37° backsweep
Grips
Ergo 2K
Headset
FSA, TH-809ST, semi integrated, 1.1/8”, verschraubt
Seat
Saddle
City DDK-225A2 Foaming
Seatpost
Kalloy SP-F102, Ø30.9 mm, 350 mm, 7 mm offset
Motor & Battery
Motor
Bosch Active Line (Smart System) 25/40Nm
Battery
Bosch PowerPack 400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.747 mm | 1.745 mm | 1.715 mm |
| Front Center | 636 mm | 646 mm | 661 mm |
| Rake | 75 mm | 70 mm | 70 mm |
| Trail | 28 mm | 34 mm | 34 mm |
| Stack | 655 mm | 672 mm | 681 mm |
| Reach | 375 mm | 385 mm | 397 mm |
| Top Tube Length | 575 mm | 590 mm | 605 mm |
| Seat Tube Angle | 70 ° | 70 ° | 70 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° |
| Chainstay Length | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1094 mm | 1104 mm | 1119 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
