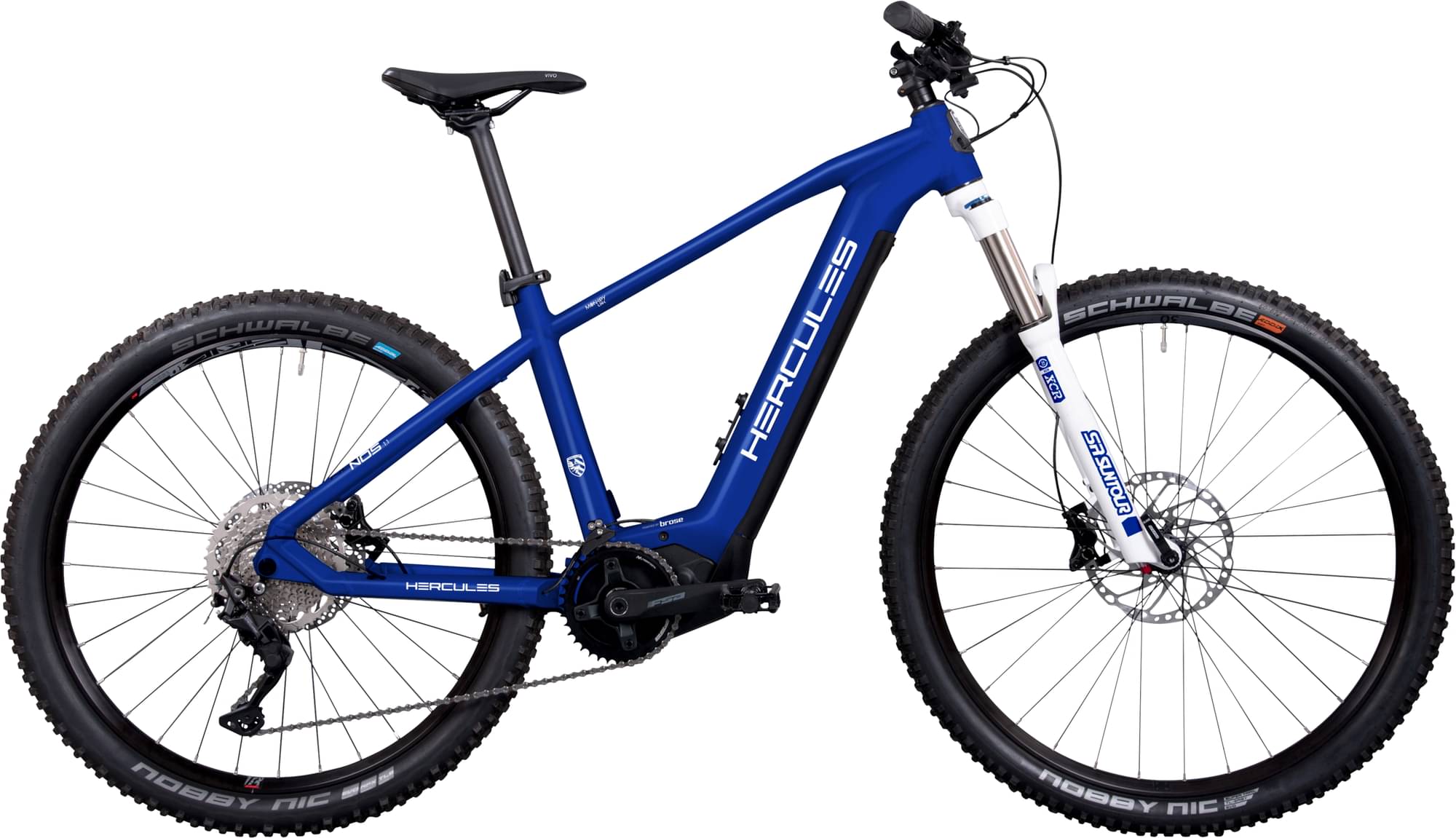

hercules Nos 1.1 2022
2022 E-bike
Estimate price |
4,187$
Weight | 23 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour XCR -
Groupset Deore -
Suspension Hardtail -
Motor Brose 90Nm mid-drive -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR Suntour XCR 34, Lockout, 15 mm Steckachse
Drivetrain
Rear Derailleur
SHIMANO Deore RD-M5120
Shift Levers
SHIMANO Deore SL-M4100
Cassette
SHIMANO Deore, CS-M4100 11-46T
Crank
FSA CK-220
Chain
SHIMANO CN-HG54
Pedals
VP-469 MTB
Wheels
Rims
TRYP35
Spokes
Niro, schwarz, 2 mm
Tires
27.5
Brakes
Brakes
SHIMANO MT420
Brake Levers
SHIMANO BL-M4100
Cockpit
Stem
A-Head, AL, MonkeyLink ready
Handlebar
MTB Riser, AL, 31.8 mm
Grips
MTB 1670D3, mit Klemmring
Headset
integrated tapered
Seat
Saddle
SELLE ROYAL Vivo
Motor & Battery
Motor
BROSE FIT S-Mag PRO 25/90Nm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 49cm | 54cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.603 mm | 1.545 mm | 1.457 mm | 1.482 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 693 mm | 708 mm | 732 mm | 756 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 97 mm | 97 mm | 97 mm | 97 mm |
| Stack | 641 mm | 641 mm | 641 mm | 670 mm |
| Reach | 400 mm | 415 mm | 440 mm | 452 mm |
| Top Tube Length | 590 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1136 mm | 1151 mm | 1176 mm | 1200 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 27" | 27" |
