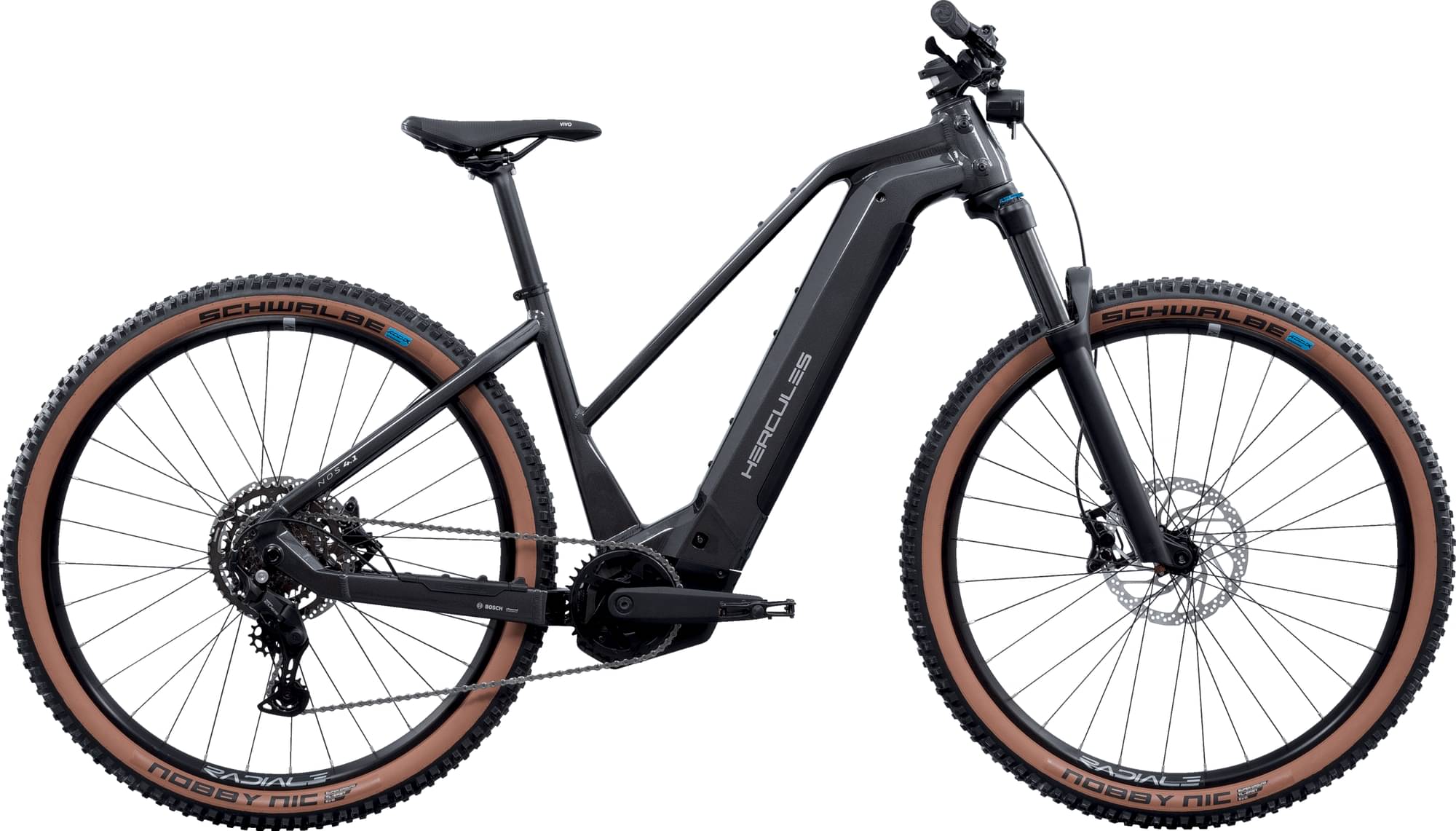

hercules Nos 4.1 2025
2025 E-bike
Estimate price |
4,652$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour XCR -
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Suntour XCR34, luftgefedert, Schaft 1.1/8” - 1.8”
Drivetrain
Rear Derailleur
Shimano CUES RD-U4000-9
Shift Levers
Shimano SL-U4000-9
Cassette
Shimano CS-LG400-9, 11-46T
Crank
Hercules Strada, Isis
Chain Guide
Bash Guard
Pedals
Marwi SP-170, MTB Plattform
Wheels
Rims
Radiale X30-29
Spokes
Niro, schwarz, 2 mm
Tires
29 x 2,40
Brakes
Brakes
SHIMANO MT420
Brake Levers
SHIMANO BL-M4100
Cockpit
Stem
Hercules Ursa, 50mm/0°, 1.1/8”
Handlebar
Hercules MTB EVO 35, Ø35 mm, 7° backsweep
Grips
Herrmans Nucore Trail Peak
Headset
Acros AZF-667 ICR, semi integrated, 1.1/8” - 1.8”
Seat
Saddle
SELLE ROYAL Vivo
Motor & Battery
Motor
Bosch Performance Line CX GEN5 (Smart System) 25/85 Nm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 48cm | 52cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.551 mm | 1.499 mm | 1.478 mm | 1.432 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 729 mm | 743 mm | 764 mm | 778 mm |
| Rake | 39 mm | 38 mm | 38 mm | 38 mm |
| Trail | 117 mm | 118 mm | 118 mm | 118 mm |
| Stack | 667 mm | 667 mm | 680 mm | 680 mm |
| Reach | 430 mm | 445 mm | 460 mm | 475 mm |
| Top Tube Length | 636 mm | 636 mm | 655 mm | 670 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1185 mm | 1199 mm | 1220 mm | 1235 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" |
