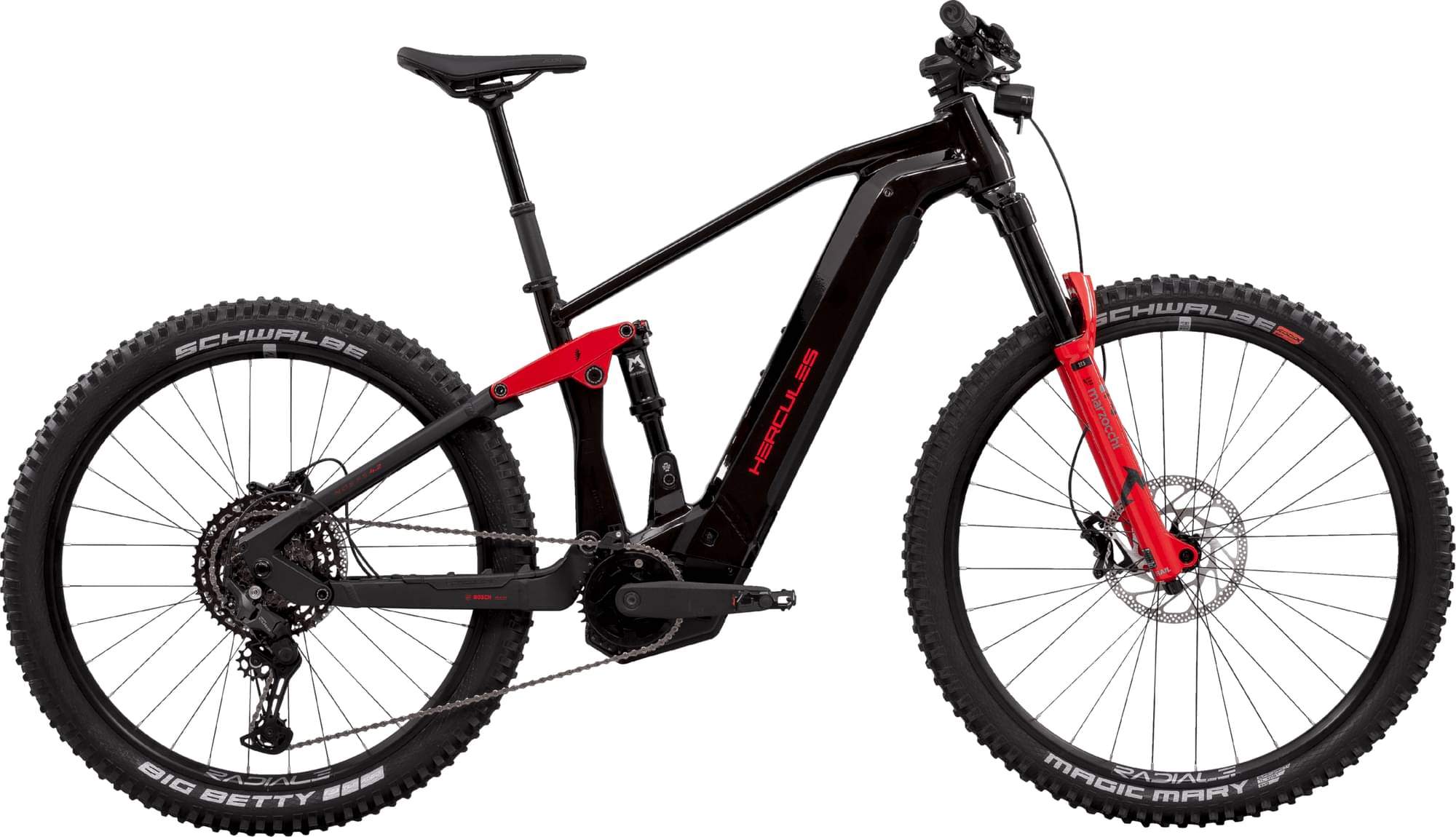

hercules Nos FS 4.2 2025
2025 E-bike
Estimate price |
6,536$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Fox AWL -
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Drivetrain 1 × 11 -
Brakes TRP Trail EVO Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
FOX AWL HD, luftgefedert, Schaft 1.1/8” - 1.5”
Drivetrain
Rear Derailleur
Shimano CUES RD-U6000-11
Shift Levers
Shimano SL-U6000-11
Cassette
SHIMANO CS-LG700-11 11-50T
Crank
Hercules Strada, Isis
Chain Guide
Bash Guard
Pedals
Marwi SP-170, MTB Plattform
Wheels
Rims
Radiale X30-29
Spokes
Niro, schwarz, 2 mm
Tires
29 x 2,40 / 27,5 x 2,60
Brakes
Brakes
TRP Trail Evo HD-M843
Brake Levers
TRP Trail Evo
Cockpit
Stem
Hercules Ursa, 50mm/0°, 1.1/8”
Handlebar
Hercules MTB EVO 35, Ø35 mm, 7° backsweep
Grips
Herrmans Nucore Trail Peak
Headset
Acros AZX-262 ICR, semi integrated, 1.1/8” - 1.8” (ID 1.5”)
Seat
Saddle
Fizik Aidon
Motor & Battery
Motor
Bosch Performance Line CX GEN5 (Smart System) 25/85 Nm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 44cm | 47cm | 50cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.535 mm | 1.483 mm | 1.446 mm | 1.419 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 730 mm | 745 mm | 762 mm | 781 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 95 mm | 95 mm | 95 mm | 95 mm |
| Stack | 660 mm | 660 mm | 665 mm | 674 mm |
| Reach | 430 mm | 445 mm | 460 mm | 475 mm |
| Top Tube Length | 608 mm | 623 mm | 640 mm | 657 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Chainstay Length | 481 mm | 481 mm | 481 mm | 481 mm |
| Wheelbase | 1208 mm | 1223 mm | 1240 mm | 1259 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 27" | 27" | 27" | 27" |
