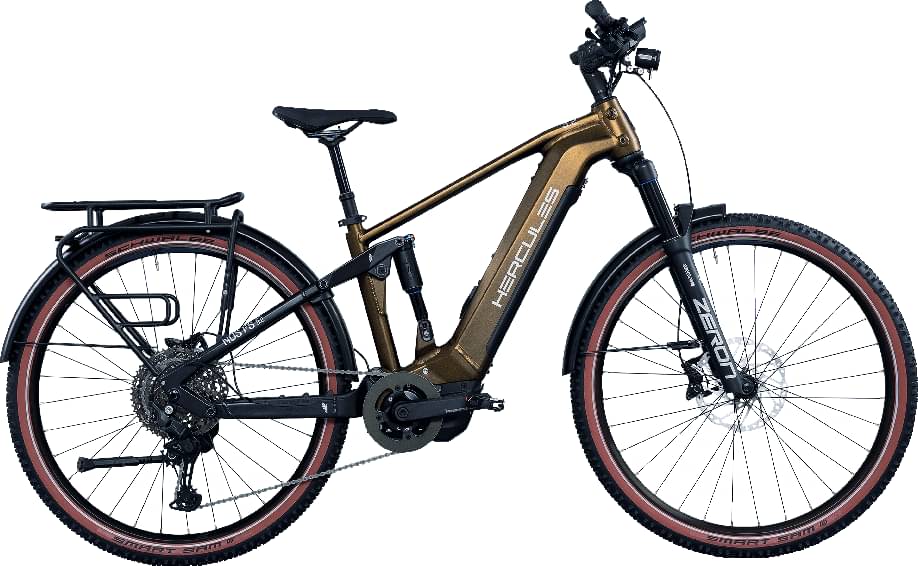

hercules Nos FS SUV 3.2 2025
2025 E-bike
Estimate price |
5,234$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour Zeron -
Groupset CUES -
Suspension Hardtail -
Motor Panasonic 95Nm mid-drive -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Suntour ZERON 36, luftgefedert, Schaft 1.1/8” - 1.8”
Drivetrain
Rear Derailleur
Shimano CUES RD-U6000-10
Shift Levers
Shimano SL-U6000-10
Cassette
SHIMANO CS-LG400-10 11-48T
Crank
Hercules Strada, Isis
Chain
SHIMANO CN-LG500
Chain Guide
Bash Guard
Pedals
Hercules MTB VP-469, AL
Wheels
Rims
RODI Tryp30
Spokes
Niro, schwarz, 2 mm
Tires
29 x 2,25
Brakes
Brakes
SHIMANO MT420
Brake Levers
SHIMANO BL-M4100
Cockpit
Stem
Zecure Hatchback, 1.1/8”, mit Adapter für Scheinwerfer und SP connect
Handlebar
Hercules MTB, AL, 31.8 mm, 9° backsweep
Grips
Hercules VLG-1670D3, small wing, mit integrierter Klemmung
Headset
Acros AZX-262 ICR, semi integrated, 1.1/8” - 1.8”
Seat
Saddle
SELLE ROYAL Vivo Ergo Sport
Motor & Battery
Motor
Panasonic GX Ultimate Pro FIT 25/95Nm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 44cm | 47cm | 50cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.472 mm | 1.424 mm | 1.387 mm | 1.363 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 723 mm | 738 mm | 755 mm | 773 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 652 mm | 652 mm | 656 mm | 665 mm |
| Reach | 443 mm | 458 mm | 473 mm | 488 mm |
| Top Tube Length | 608 mm | 623 mm | 637 mm | 654 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1200 mm | 1215 mm | 1232 mm | 1250 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Wheels | 29" | 29" | 29" | 29" |
