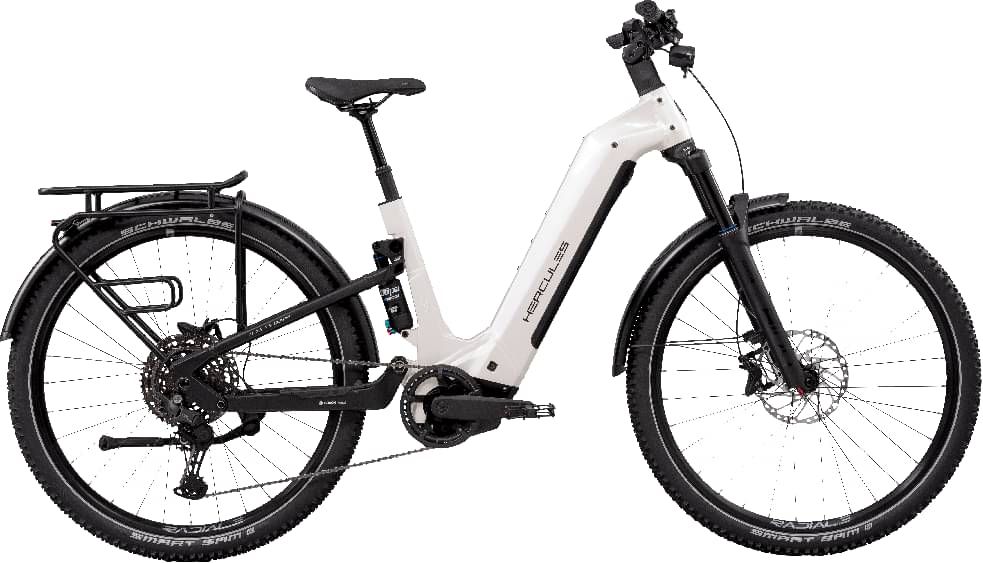

hercules Nos FS SUV 4.2 2025
2025 E-bike
Estimate price |
6,979$
Weight | 28 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour AION -
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Suntour AION36, luftgefedert, Schaft 1.1/8” - 1.8”
Drivetrain
Rear Derailleur
Shimano CUES RD-U6000-10
Shift Levers
Shimano SL-U6000-10
Cassette
SHIMANO CS-LG400-10 11-48T
Crank
Hercules Strada, Isis
Chain Guide
Bash Guard
Pedals
Marwi SP-170, MTB Plattform
Wheels
Rims
Radiale X30-29
Spokes
Niro, schwarz, 2 mm
Tires
29 x 2,25
Brakes
Brakes
SHIMANO BR-M6120
Brake Levers
SHIMANO BL-M6100
Cockpit
Stem
Zecure Python, 1.1/8”, mit Adapter für Scheinwerfer und SP connect
Handlebar
Hercules MTB HB-RB12W, AL, 31.8, 9° backsweep
Grips
Herrmans Nucore Tour Wave
Headset
Acros AZX-262 ICR, semi integrated, 1.1/8” - 1.8” (ID 1.5”)
Seat
Saddle
SELLE ROYAL Vivo
Motor & Battery
Motor
Bosch Performance Line CX GEN5 (Smart System) 25/85 Nm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 44cm | 47cm | 50cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.461 mm | 1.429 mm | 1.428 mm | 1.369 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 745 mm | 755 mm | 771 mm | 791 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 643 mm | 643 mm | 657 mm | 657 mm |
| Reach | 440 mm | 450 mm | 460 mm | 480 mm |
| Top Tube Length | 607 mm | 617 mm | 632 mm | 651 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Chainstay Length | 517 mm | 517 mm | 517 mm | 517 mm |
| Wheelbase | 1259 mm | 1269 mm | 1285 mm | 1305 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
