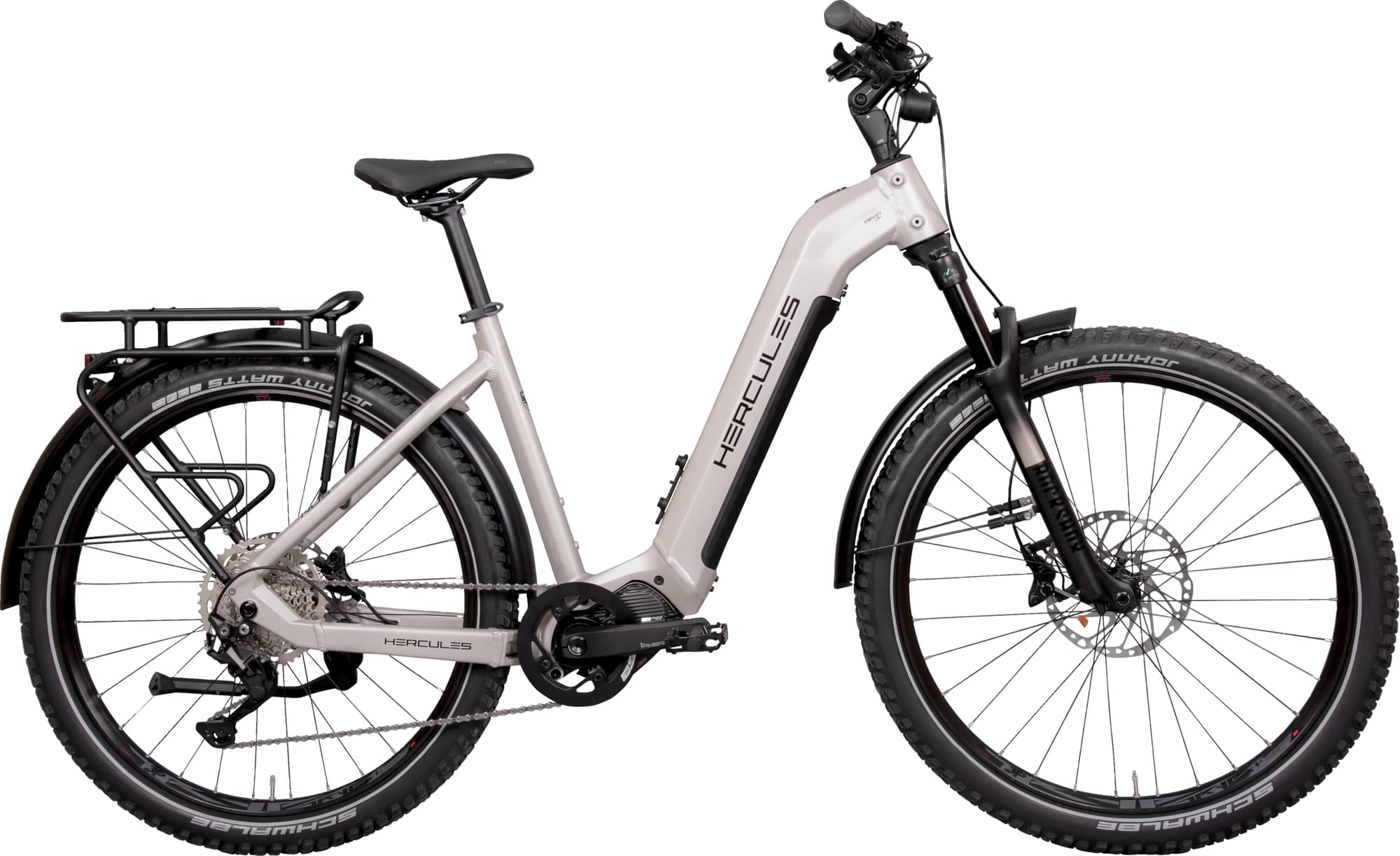

hercules Nos SUV 2.2 2024
2024 E-bike
Estimate price |
5,467$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox 35 Gold RL
-
Groupset Deore -
Suspension Hardtail -
Motor mid-drive -
Battery Simplo Intube 630 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox 35 Gold, 120 mm travel, Motion Control, shaft 1.1/8” - 1.8”
Drivetrain
Rear Derailleur
SHIMANO Deore RD-M5120
Shift Levers
SHIMANO Deore SL-M4100
Cassette
Sunrace, CSMS2 TAZ 11-46T
Crank
HERCULES EC40
Chain
SHIMANO CN-HG54
Wheels
Front Hub
SHIMANO HB-MT410-B, 15X110 mm, center lock
Rear Hub
SHIMANO FH-MT400-B, 12X148 mm, center lock
Rims
RODI Tryp30
Tires
SCHWALBE Johnny Watts Performance, 65-584
Brakes
Brakes
SHIMANO BR-MT420
Cockpit
Stem
ZECURE UP2+, A-head, adjustable
Handlebar
MTB riser, AL, 31.8 mm, 9° backsweep
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KALLOY SP-719, AL, 350 mm, Ø30.9 mm
Motor & Battery
Motor
up to 25 km/h
Battery
Simplo Intube 630
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 48cm | 52cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.724 mm | 1.66 mm | 1.595 mm | 1.516 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 691 mm | 706 mm | 730 mm | 754 mm |
| Rake | 50 mm | 50 mm | 49 mm | 50 mm |
| Trail | 90 mm | 90 mm | 91 mm | 90 mm |
| Stack | 669 mm | 669 mm | 678 mm | 679 mm |
| Reach | 388 mm | 403 mm | 425 mm | 448 mm |
| Top Tube Length | 599 mm | 614 mm | 639 mm | 662 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1134 mm | 1149 mm | 1174 mm | 1198 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 27" | 27" |
