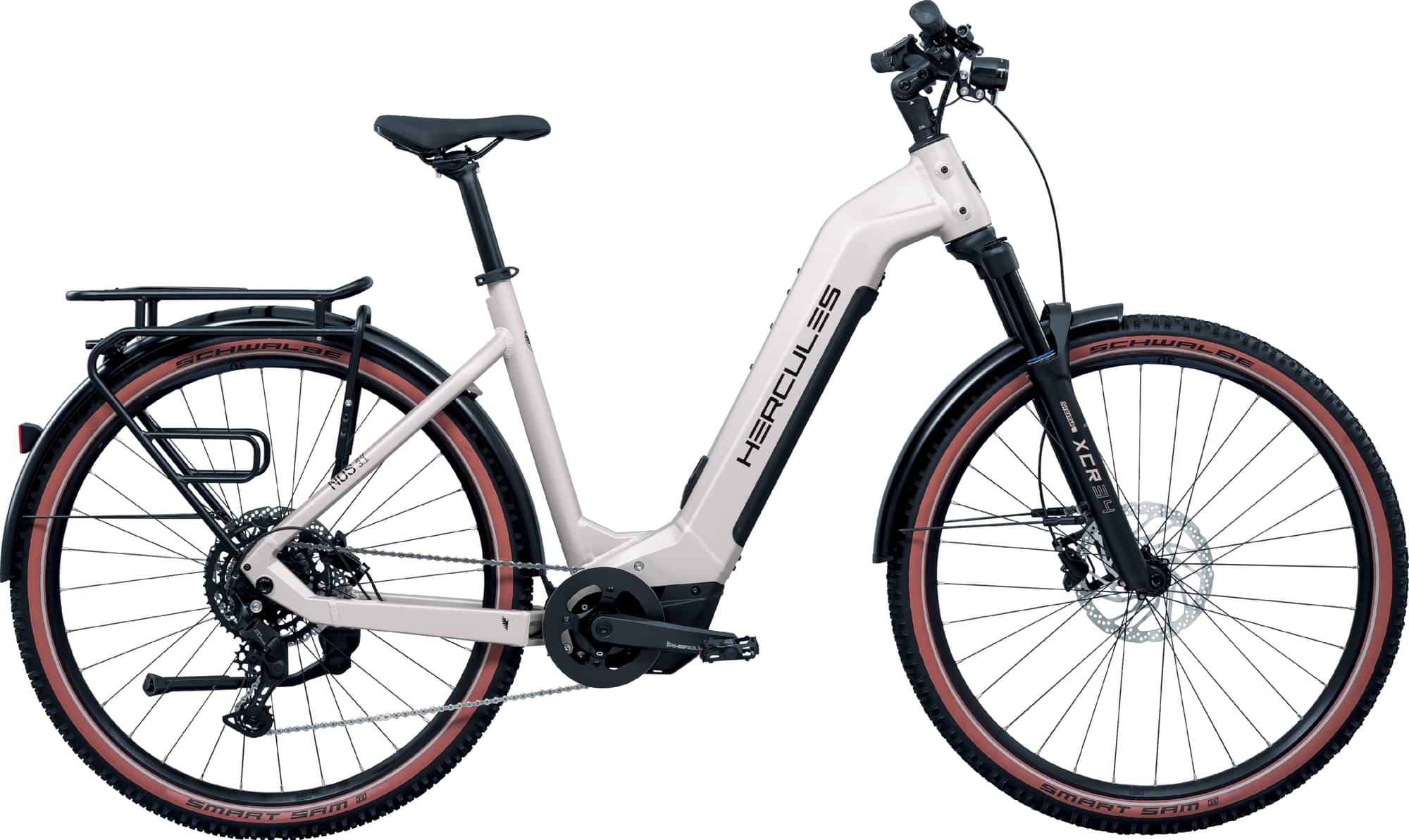

hercules Nos SUV 3.1 2025
2025 E-bike
Estimate price |
4,420$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour XCR -
Groupset CUES -
Suspension Hardtail -
Motor Panasonic 95Nm mid-drive -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Suntour XCR34, luftgefedert, Schaft 1.1/8” - 1.8”
Drivetrain
Rear Derailleur
Shimano CUES RD-U6000-10
Shift Levers
Shimano SL-U6000-10
Cassette
SHIMANO CS-LG400-10 11-48T
Crank
Hercules Strada, Isis
Chain
SHIMANO CN-LG500
Chain Guide
Bash Guard
Pedals
Hercules MTB VP-469, AL
Wheels
Rims
RODI Tryp30
Spokes
Niro, schwarz, 2 mm
Tires
29 x 2,25
Brakes
Brakes
SHIMANO MT420
Brake Levers
SHIMANO BL-M4100
Cockpit
Stem
Zecure Hatchback, 1.1/8”, mit Adapter für Scheinwerfer und SP connect
Handlebar
Hercules MTB, AL, 31.8 mm, 9° backsweep
Grips
Hercules VLG-1670D3, small wing, mit integrierter Klemmung
Headset
Acros AZX-262 ICR, semi integrated, 1.1/8” - 1.8”
Seat
Saddle
SELLE ROYAL Vivo Ergo Sport
Motor & Battery
Motor
Panasonic GX Ultimate Pro FIT 25/95Nm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 48cm | 52cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.514 mm | 1.463 mm | 1.415 mm | 1.411 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 724 mm | 739 mm | 754 mm | 776 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 95 mm | 95 mm | 95 mm | 95 mm |
| Stack | 651 mm | 651 mm | 651 mm | 670 mm |
| Reach | 430 mm | 445 mm | 460 mm | 475 mm |
| Top Tube Length | 617 mm | 631 mm | 647 mm | 667 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1180 mm | 1195 mm | 1210 mm | 1233 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" |
