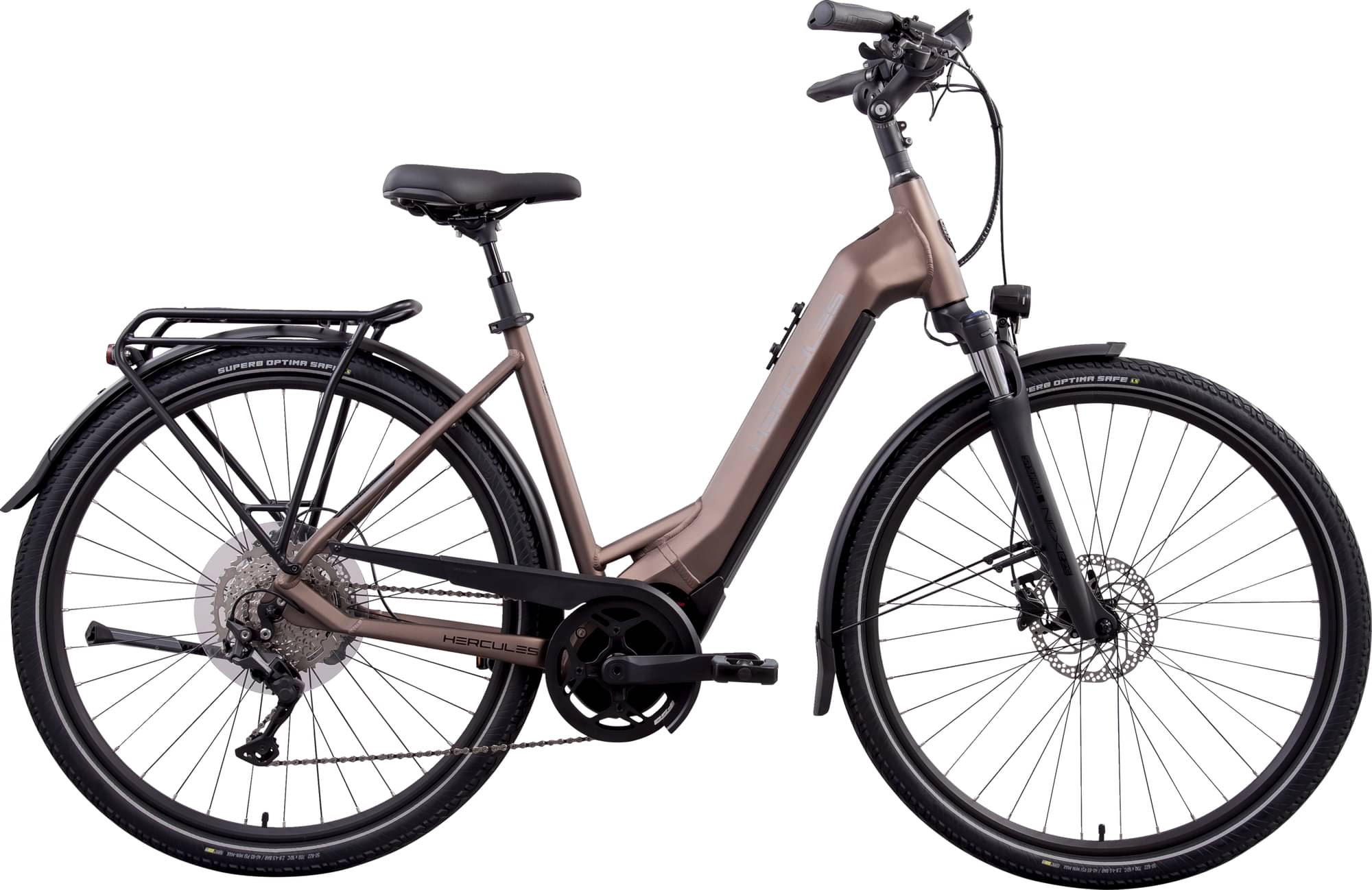

hercules Pasero Sport I-10 2024
2024 E-bike
Estimate price |
4,931$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor mid-drive -
Battery FIT SuperCore 750 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR SUNTOUR NEX-E25 HLO, 63 mm travel, adjustable, lockout, shaft 1.1/8”
Drivetrain
Rear Derailleur
SHIMANO Deore RD-M5120
Shift Levers
SHIMANO Deore SL-M4100
Cassette
SHIMANO Deore, CS-M4100 11-46T
Crank
FSA CK-745
Chain
KMC E10S
Wheels
Front Hub
SHIMANO HB-M3050, QR, center lock
Rear Hub
SHIMANO FH-M3050, QR, center lock
Rims
RYDE Taurus 2000
Tires
SUPERO Optima Safe, 50-622
Brakes
Brakes
SHIMANO MT200
Cockpit
Stem
A-Head, adjustable
Handlebar
Satori Vienna, AL, 31.8 mm, 15° backsweep
Seat
Saddle
Trekking Comodoro, Hydro Foam
Seatpost
KALLOY SP-383, 300 mm, Ø30.9 mm, 45 mm travel
Motor & Battery
Motor
up to 25 km/h
Battery
FIT SuperCore 750
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.616 mm | 1.673 mm | 1.666 mm |
| Front Center | 650 | 642 mm | 652 mm |
| Rake | 45 mm | 39 mm | 39 mm |
| Trail | 79 mm | 86 mm | 86 mm |
| Stack | 632 mm | 644 mm | 653 mm |
| Reach | 391 mm | 385 mm | 392 mm |
| Top Tube Length | 590 mm | 600 mm | 610 mm |
| Seat Tube Angle | 72 ° | 71 ° | 71 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1113 mm | 1105 mm | 1115 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
