hercules Pippa R3 2023

2023 Youth
Estimate price | 697$
Weight | 16 kg
Open compare Use advisor

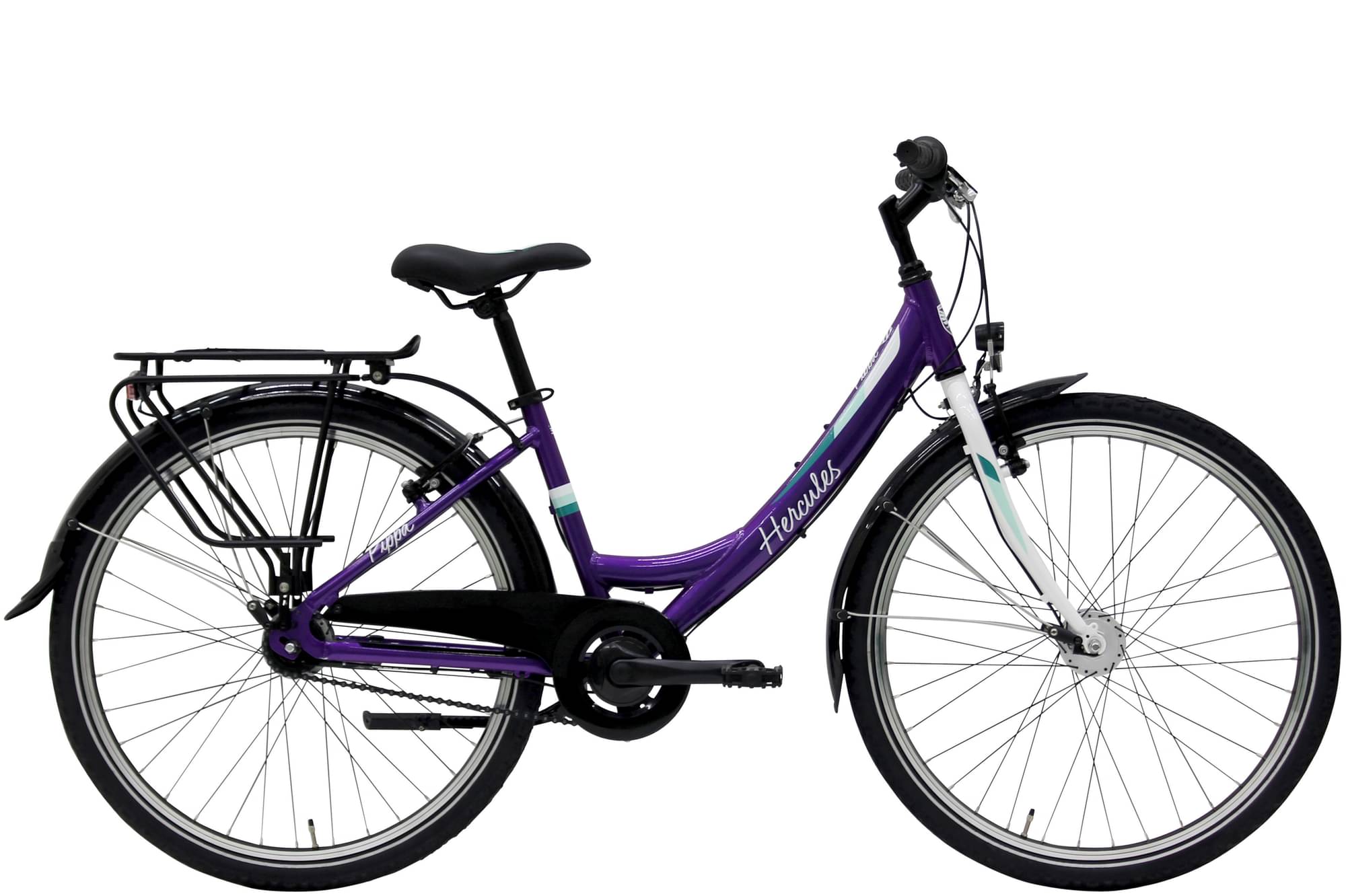

Hercules Pippa R3 2023

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Groupset Shimano
  • Suspension Rigid
  • Brakes Tektro Rim

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Aluminium

Suspension Fork

Stahlgabel, starr

Drivetrain

Rear Derailleur

SHIMANO SG-3C41

Shift Levers

SHIMANO Revoshifter

Cassette

SHIMANO 16T

Crank

PROWHEEL

Chain

KMC B1

Chain Guide

Kunststoff

Pedals

wellgo

Wheels

Rims

Aluminium

Spokes

Stahl, schwarz, 2 mm

Tires

24

Brakes

Brakes

TEKTRO 855AL-EN, V-Brake

Brake Levers

TEKTRO TS325A-EN, für V-Brake

Cockpit

Stem

Schaft 1 1/8”

Handlebar

Jugend Riser, 25.4 mm, 10° backsweep, 20 mm Raise

Grips

Velo, ATB

Headset

semi-integrated

Seat

Saddle

Jugend ATB

Fit data

Geometry

Numbers for sizing and ride feel.

Size34cm
Stack Reach Ratio
1.393 mm
Front Center
556 mm
Rake
35 mm
Stack
489 mm
Reach
351 mm
Top Tube Length
519 mm
Seat Tube Angle
71 °
Seat Tube Length
340 mm
Head Tube Angle
70 °
Chainstay Length
423 mm
Wheelbase
977 mm
Bottom Bracket Drop
30 mm
Wheels24"
