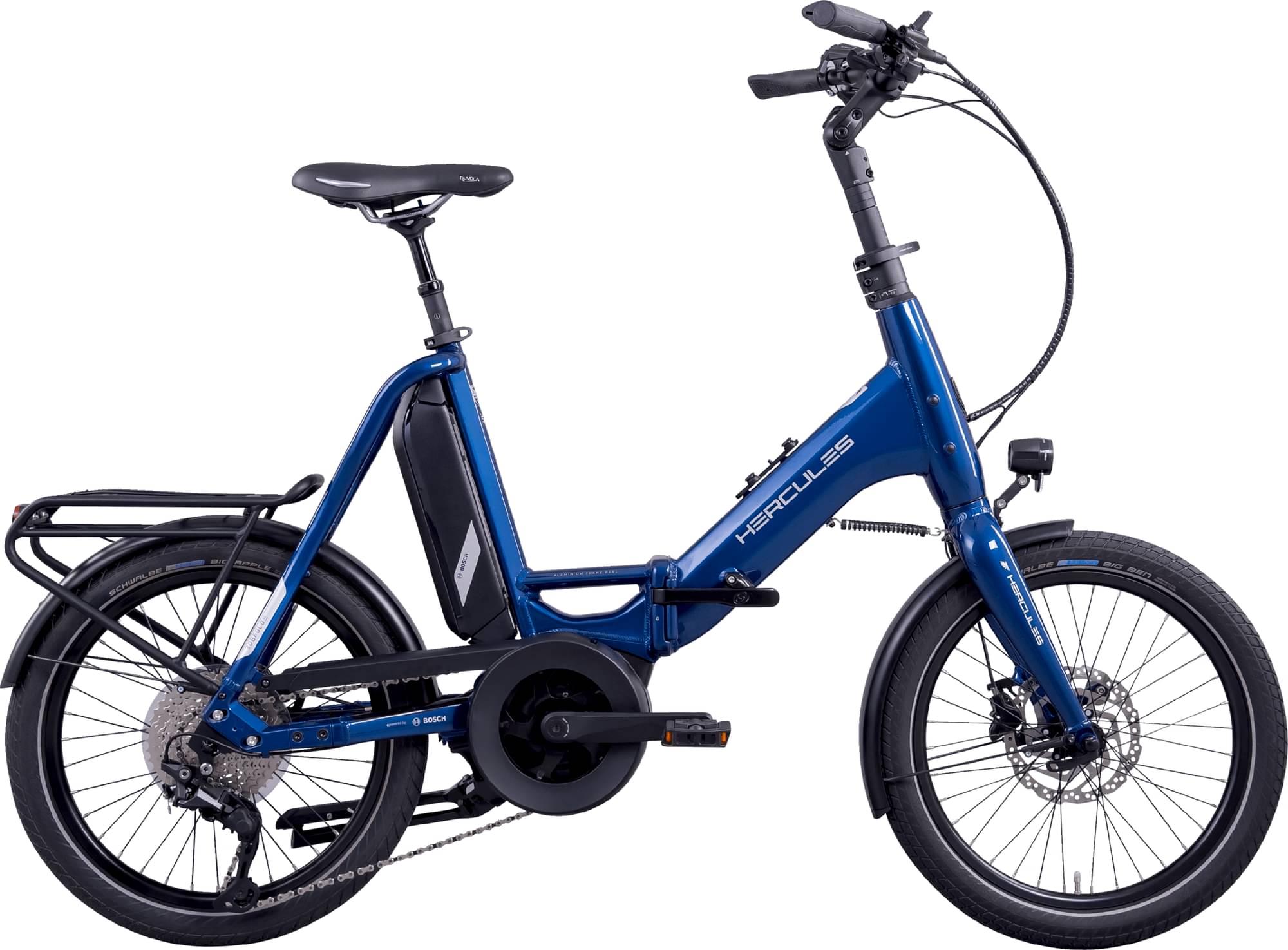

hercules Rob Fold 10 2024
2024 E-bike
Estimate price |
4,652$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Motor Bosch 600W 75Nm mid-drive -
Battery Bosch PowerPack 545 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
AL, starr, Schaft 1.5”
Drivetrain
Rear Derailleur
SHIMANO Deore RD-M5120
Shift Levers
SHIMANO SL-M4100-R
Cassette
SHIMANO CS-M4100, 11-42T
Crank
FSA CK-220
Chain
KMC X10E
Chain Guide
HERRMANS® SLYDE 42-44
Pedals
Wellgo F-367DU, Kunststoff, faltbar
Wheels
Front Hub
SHIMANO HB-QC400, Centerlock, QR
Rear Hub
SHIMANO FH-QC400-HM, 135 mm, Centerlock
Rims
DDM-1
Spokes
Niro, schwarz, v: 2 mm, h: 2.3 mm
Tires
20 x 2,15
Brakes
Brakes
SHIMANO BR-MT200
Brake Levers
SHIMANO MT201
Cockpit
Stem
SATORI UP2 A-Head verstellbar
Handlebar
Tour, AL, 37° backsweep
Grips
Ergo, integrierte Klemmung
Headset
FSA No. 83RO, semi integrated, 1.5”
Seat
Saddle
SELLE ROYAL Nuvola
Seatpost
Limotec S1, Ø27.2, 400 mm, 50 mm travel
Motor & Battery
Motor
Bosch Performance Line 25/75Nm
Battery
Bosch PowerPack 545
Fit data
Geometry
