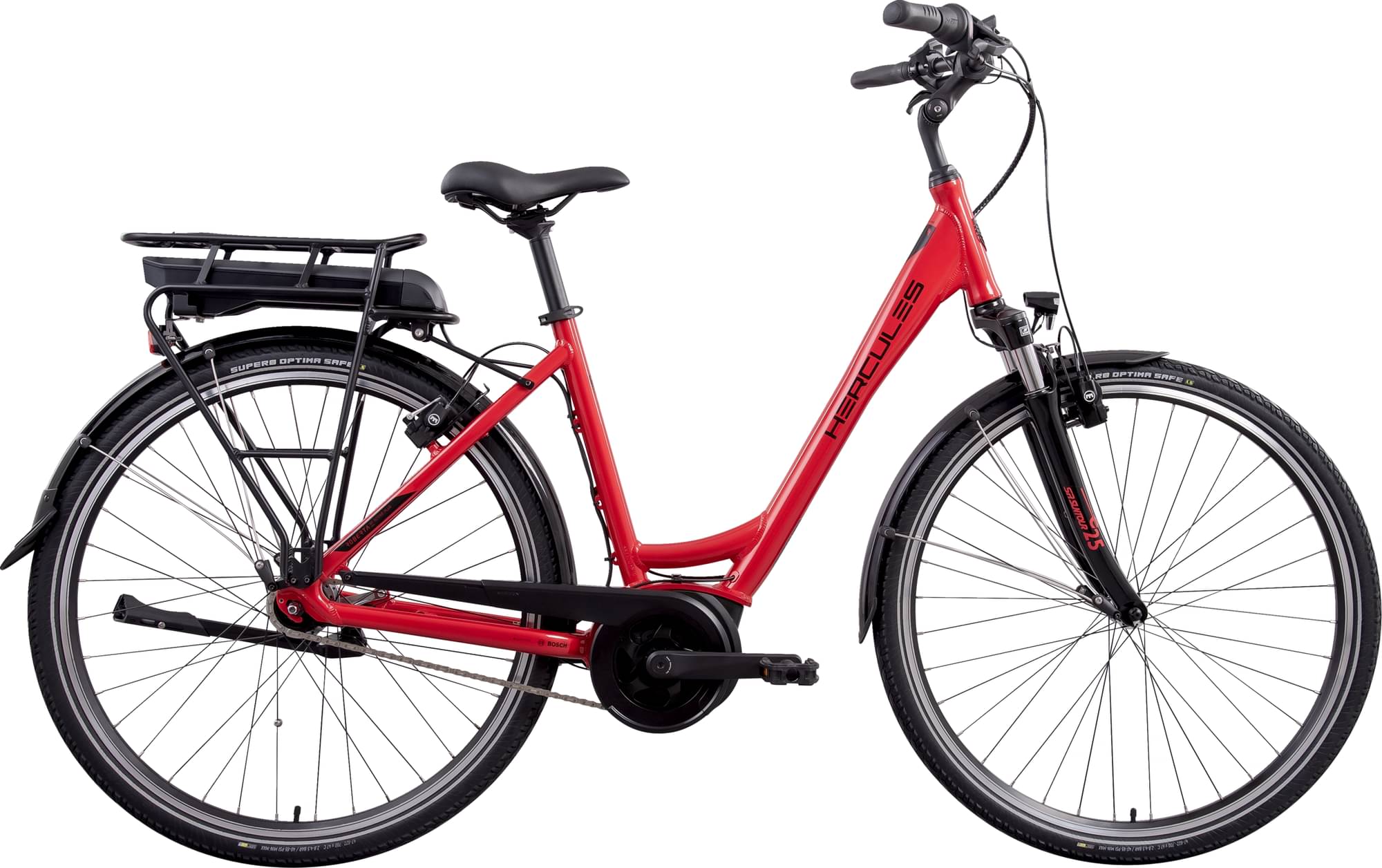

hercules Robert/a R7 Active Plus 2024
2024 E-bike
Estimate price |
3,140$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour CR85 E25
-
Groupset Shimano, FSA -
Suspension Hardtail -
Motor hub-drive -
Battery Bosch PowerPack 400 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR SUNTOUR CR85-E25 P, 63 mm travel, adjustable / 26”: NEX-P, shaft 1.1/8”
Drivetrain
Shift Levers
SHIMANO SG-C3001-7
Cassette
SHIMANO 18T
Crank
FSA CK-220
Chain
KMC Z1eHX
Wheels
Front Hub
FORMULA OV-31, QR
Rear Hub
SHIMANO Nexus 7-speed, coaster brake
Rims
DBM-2
Tires
SUPERO 50-622, Optima safe puncture protection
Brakes
Brakes
MAGURA HS11
Cockpit
Stem
Shaft 1 1/8, adjustable
Handlebar
Kalloy Tour, AL, 660 mm, 31.8 mm, 37° backsweep
Seat
Saddle
DDK City
Seatpost
KALLOY SP-F102, 350mm, Ø34.9mm
Motor & Battery
Motor
up to 25 km/h
Battery
Bosch PowerPack 400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.711 mm | 1.708 mm | 1.682 mm |
| Front Center | 646 mm | 656 mm | 673 mm |
| Rake | 42 mm | 48 mm | 49 mm |
| Trail | 82 mm | 69 mm | 68 mm |
| Stack | 657 mm | 673 mm | 683 mm |
| Reach | 384 mm | 394 mm | 406 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° |
| Chainstay Length | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1132 mm | 1142 mm | 1159 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
