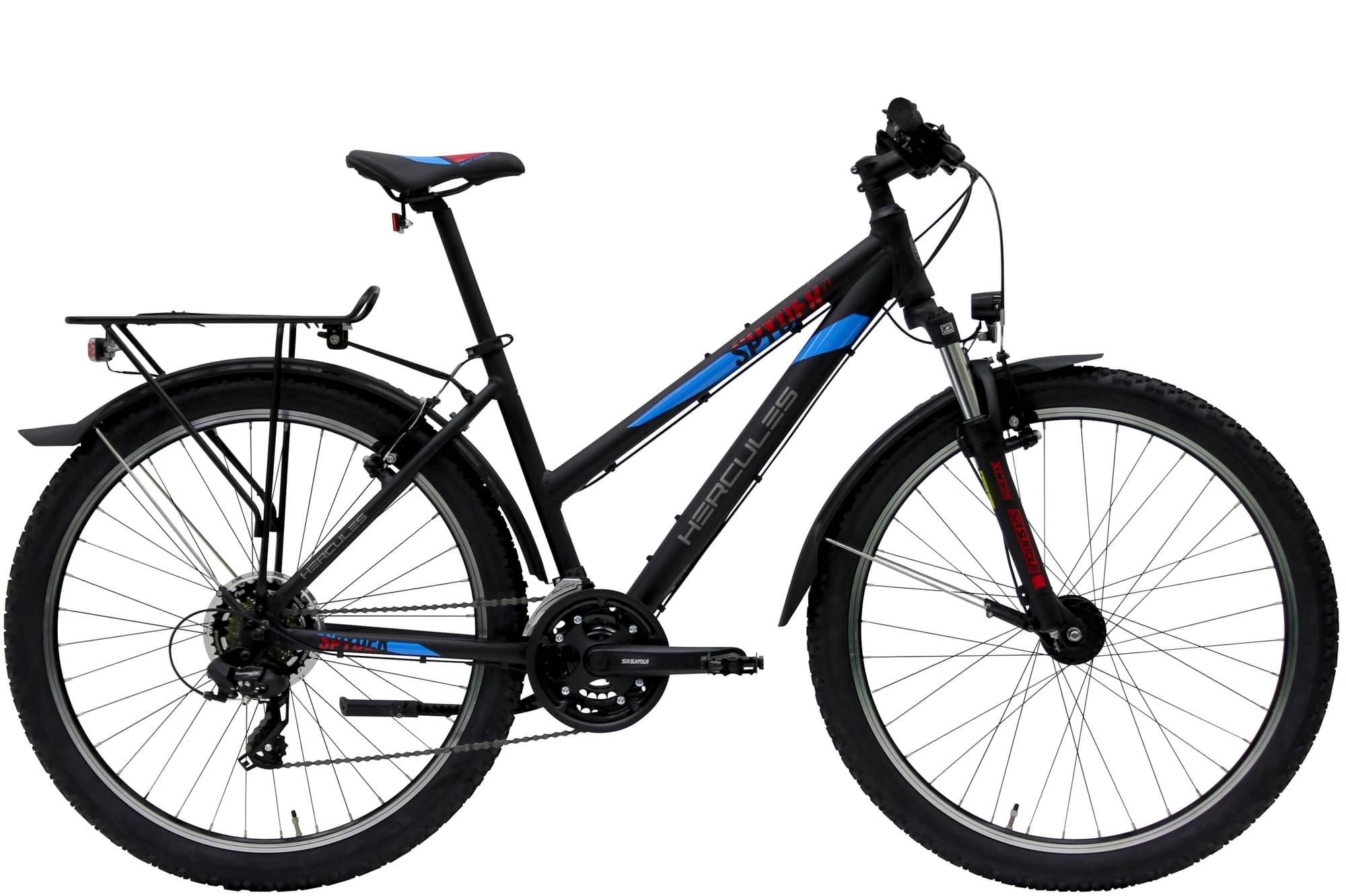

hercules Spyder 21 2023
2023 Youth
Estimate price |
755$
Weight | 17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour M 3010
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 2 × 7 -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
26”: SR SUNTOUR XCE-28P, 80 mm Federweg / 24”: SR SUNTOUR M-3010-P, 50 mm Federweg
Drivetrain
Rear Derailleur
SHIMANO TX800
Shift Levers
SHIMANO ST-EF41, EZ-fire
Cassette
SHIMANO, MT-TZ500-7, 14-34T
Crank
Hercules SAC26-536P
Chain
KMC Z7
Chain Guide
Kettenschutzscheibe
Pedals
wellgo
Wheels
Rims
DBM-1
Spokes
Stahl, schwarz, 2 mm
Tires
26
Brakes
Brakes
TEKTRO 855AL-EN, V-Brake
Brake Levers
SHIMANO ST-EF41, für V-Brake
Cockpit
Stem
A-Head
Handlebar
Trekking AL, 31.8 mm, 5° backsweep, 25 mm Raise
Grips
Velo, MTB
Headset
semi-integrated
Seat
Saddle
Jugend ATB
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 34cm | 38cm | 43cm | 48cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.379 mm | 1.489 mm | 1.489 mm | 1.484 mm |
| Front Center | 588 mm | 602 mm | 602 mm | 613 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 517 mm | 560 mm | 560 mm | 570 mm |
| Reach | 375 mm | 376 mm | 376 mm | 384 mm |
| Top Tube Length | 553 mm | 569 mm | 569 mm | 580 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 340 mm | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Chainstay Length | 410 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 996 mm | 1032 mm | 1032 mm | 1043 mm |
| Bottom Bracket Drop | 30 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 26" | 26" | 26" | 26" |
