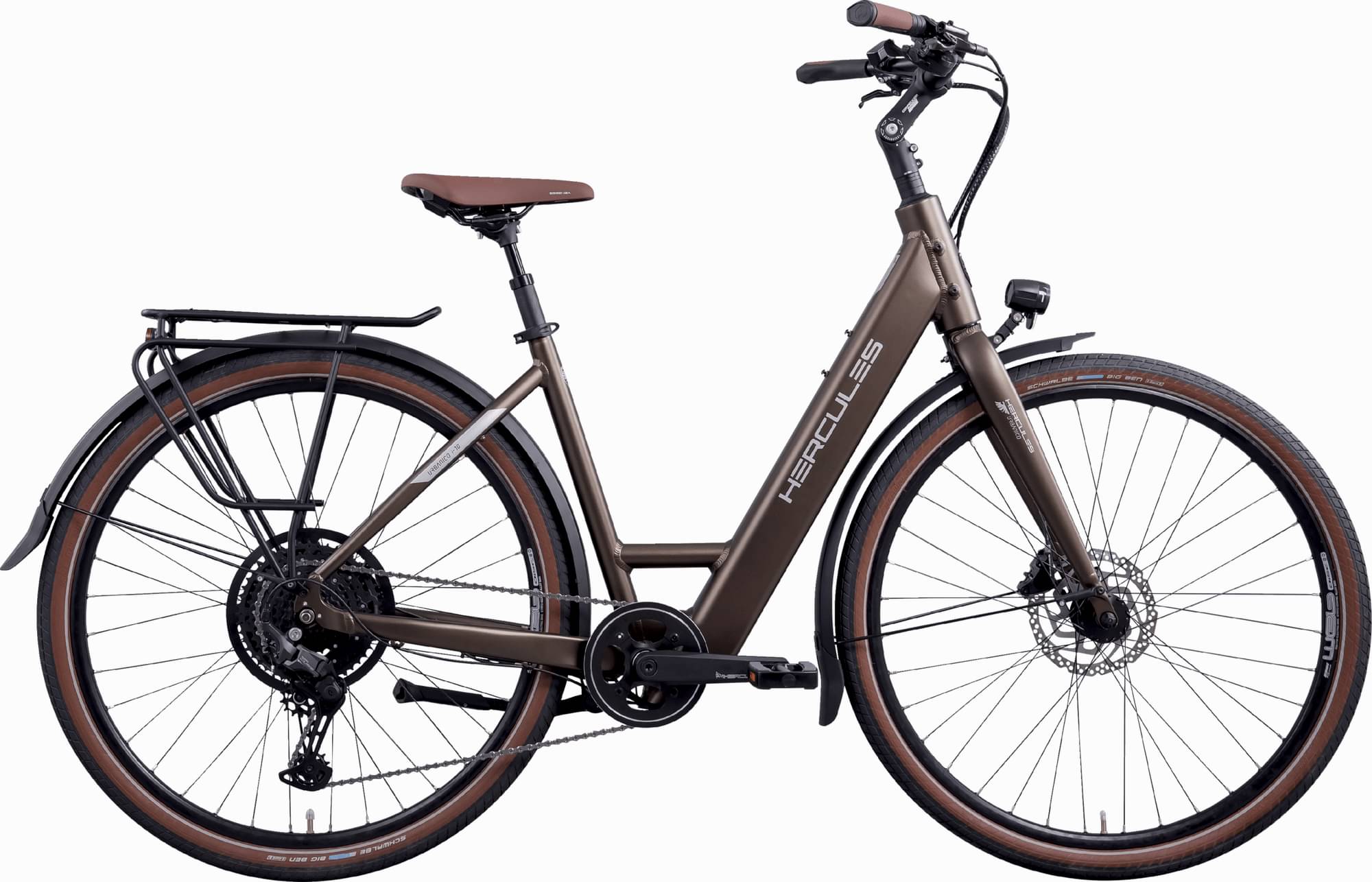

hercules Urbanico I-10 2024
2024 E-bike
Estimate price |
3,210$
Weight | 24 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Motor Bafang 30Nm hub-drive -
Battery BAFANG Intube 410 Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
AL, starr, Schaft 1.1/8” - 1.5”
Drivetrain
Rear Derailleur
SHIMANO Cues RD-U6000
Shift Levers
SHIMANO SL-U6000R
Cassette
SHIMANO CS-LG300, 11-48T
Crank
HERCULES EC40
Chain
SHIMANO CN-LG500
Chain Guide
Kettenschutzscheibe
Pedals
Marwi SP828, AL
Wheels
Front Hub
SHIMANO TX506, QR, 6-Bolt
Rear Hub
BAFANG H600
Rims
Rodi Web19
Spokes
Niro, schwarz, 2 mm
Tires
28 x 2,00
Brakes
Brakes
SHIMANO BR-U300
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
HL TDS-C-269-8FOV, A-head, verstellbar
Handlebar
Trekking, AL, 31.8 mm, 15° backsweep
Grips
Ergo, integrierte Klemmung
Headset
Acros AZF-579, semi integrated, 1.1/8” - 1.5”
Seat
Saddle
SELLE ROYAL Essenza
Seatpost
KALLOY SP-383, 350 mm, Ø30.9 mm, 45 mm travel
Motor & Battery
Motor
BAFANG H600 25/30Nm
Battery
BAFANG Intube 410 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 53cm | 58cm |
|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.567 mm | 1.599 mm |
| Front Center | 631 mm | 641 mm | 651 mm |
| Rake | 46 mm | 30 mm | 29 mm |
| Trail | 78 mm | 95 mm | 96 mm |
| Stack | 630 mm | 630 mm | 649 mm |
| Reach | 375 mm | 402 mm | 406 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1082 mm | 1092 mm | 1102 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
