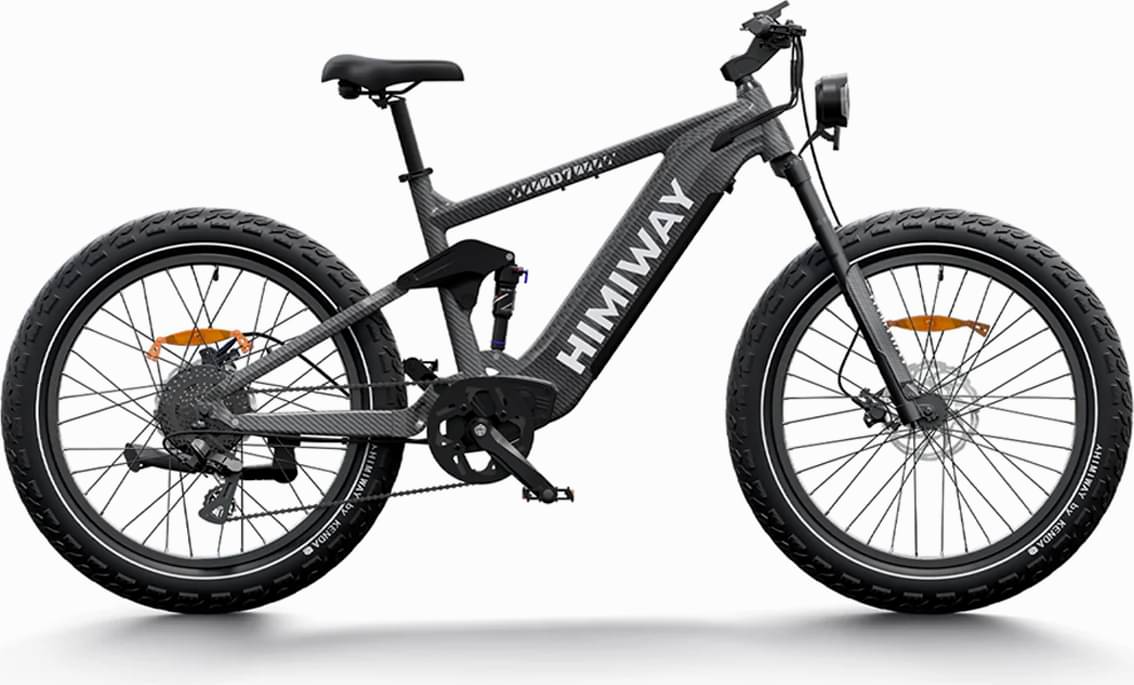

Himiway Cobra / D7 2024
2024 E-bike
Estimate price |
2,399$
Weight | 40.19 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Travel Rear 45mm -
Groupset Acera -
Suspension Full -
Motor 750W hub-drive -
Battery Samsung/LG 48V 20Ah -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum frame
Suspension Fork
DASH-AIR-20 Inverted Fork 120mm lockout & rebound adjustable 8 Cobra: Selle royal A054UE
Rear Shock
DNM A0-38RC rear shock 190*45mm 9 Cobra: EXA A5-RR1-KS 190*50mm
Drivetrain
Rear Derailleur
Shimano acera M3020 8s 16 Cobra: Shimano altus M310 7 speed
Cassette
Shimano CS-HG41.8 11-34T 15 Cobra: Shimano MF-TZ500-7 14-28T
Crank
Crank arm: EB-01-242A-S1 170mm | Chain ring: 40T 104BCD narrow wide chainring 14 Cobra: Crank arm: EB-01-242A-S1 170mm | Chain ring: 44T 104BCD CL55
Chain
KMC Z8.3 EPT 122L
Pedals
Aluminum pedal
Wheels
Rims
Front: M9CF-150 12G*150*15mm 26'' 36h 10 Cobra: MB016F-QR 13G*255*256m 26'' 36h, Rear: MD-147 12G 214L 48v 1000w Himiway hub motor 11 Cobra: MD-147 12G 214L 48v 750w Himiway hub motor
Tires
Kenda X Himiway 26*4.5 12 Cobra: CST roly poly 26*4.8
Brakes
Brakes
Hydraulic
Cockpit
Stem
XF-827 alloy Ext:50mm 18 Cobra: Promax MA-400 28.6*90*31.8mm
Handlebar
Promax HB-3188DB -W780 19 Cobra: Promax HB-3188 22.2*31.8*700mm
Headset
Neco H383AEM 28.6*44*56*39.8
Seat
Saddle
Selle royal A054UE 20 Cobra: Velo soft saddle
Seatpost
SP-2003 30.9*350mm
Motor & Battery
Motor
1000W brushless gear motor 13 Cobra: 750W brushless gear motor
Battery
Samsung/LG 48V 20Ah
Charger
US standard 3.0 A smart charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Wheels | 26" |
