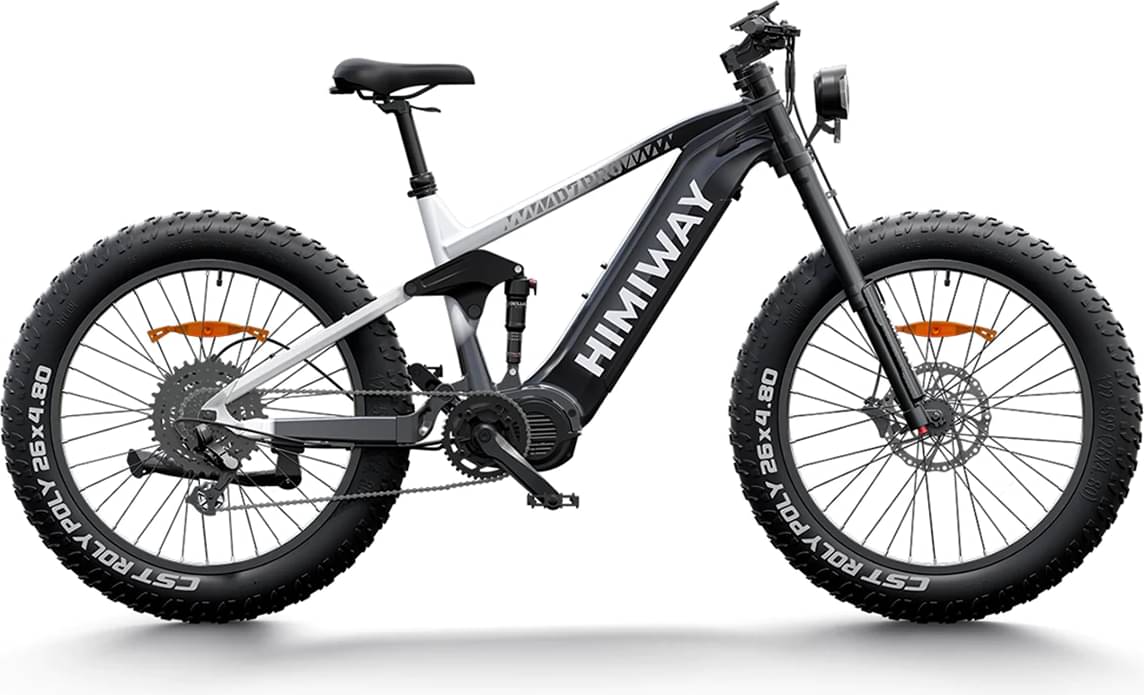

Himiway Cobra Pro / D7 Pro 2024
2024 E-bike
Estimate price |
3,999$
Weight | 40.19 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 220mm -
Travel Rear 45mm -
Groupset CUES -
Suspension Full -
Motor Bafang mid-drive -
Battery Samsung/LG 48V 20Ah -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum frame
Suspension Fork
KKE R150S coil spring fork compression/Rebound adjustable 220mm travel 15*150mm thru axle 10 Cobra Pro?DASH-AIR-20 inverted fork 120mm lockout & rebound adjustable
Rear Shock
ROCKSHOX deluxe select+ 190*45mm 11 Cobra Pro: DNM A0-38RC Rear Shock 190*45mm
Drivetrain
Rear Derailleur
Shimano cues U6000 10 speed 15 Cobra Pro: Shiminao deore M6000 10 speed
Cassette
Shimano cues CS-LG400-10 11-48T 13 Cobra Pro: Shimano CS-HG500-10 11-34T
Crank
Crank arm: M620 (Fat) 170mm | Chain ring: 38T 104BCD narrow wide chainring 12 Cobra Pro: Crank arm: M620 (Fat) 170mm | Chain ring: 44T BCD130
Chain
KMC eglide 130L 14 Cobra Pro: E10S-EPT 124L
Pedals
Wellgo B087B
Wheels
Rims
Front: M9CF-150 12G*150*15mm 26'' 36h, Rear: M9ZR-197 12G*197*12mm 26'' 36h
Tires
CST roly poly 26*4.8
Brakes
Brakes
Hydraulic
Cockpit
Stem
3D forged alloy Ext:50mm
Handlebar
Promax HB-3188DB -W780 16 Cobra Pro: MTB-AL330BTF0V 700*22.2*31.8
Headset
Neco H383AE 28.6×44*56×30mm 9 Cobra Pro: Neco H383AEM 28.6×44*56×39.8mm
Seat
Saddle
Selle royal vivo
Seatpost
Exa speed-up 30.9*500mm 150mm travel 17 Cobra Pro: Promax SP-C212(ISO-M) 30.9*350mm
Motor & Battery
Motor
BaFang M620 1000W mid-drive motor
Battery
Samsung/LG 48V 20Ah
Charger
US standard 3.0 A smart charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Wheels | 26" |
