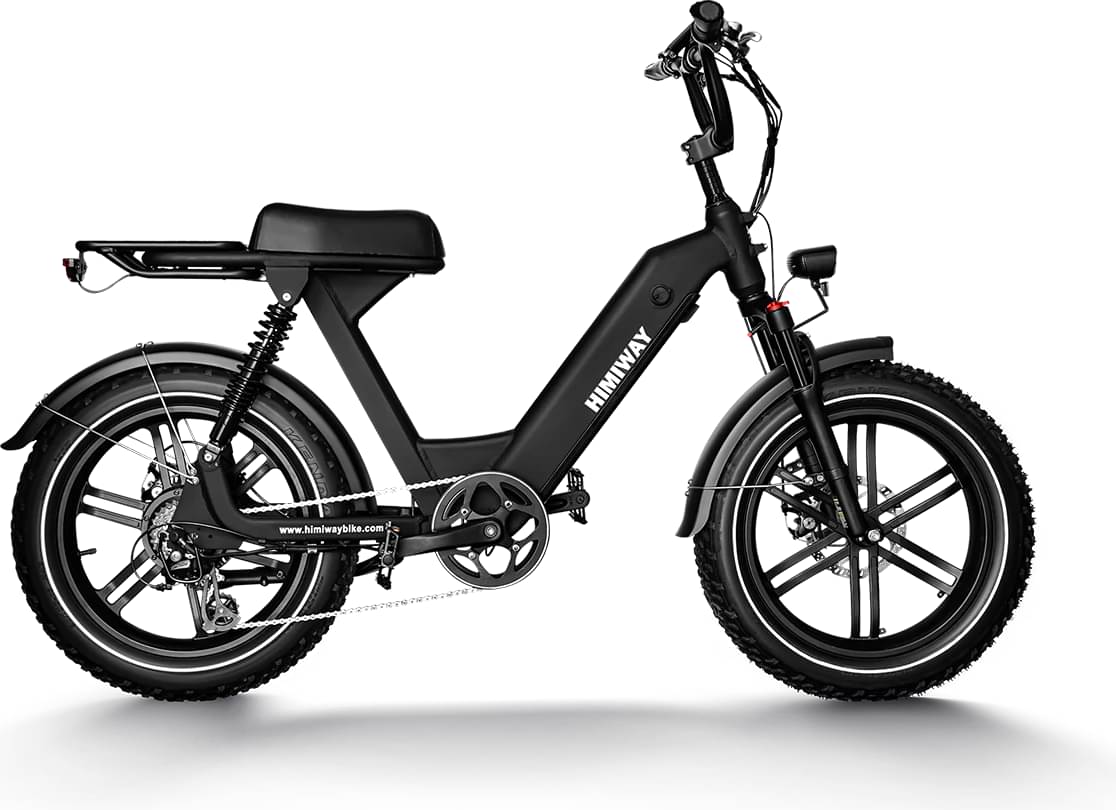

Himiway Escape Pro 2024
2024 E-bike
Estimate price |
2,326$
Weight | 41.73 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Travel Front 270mm -
Travel Rear 290mm -
Groupset Altus -
Suspension Full -
Motor 750W hub-drive -
Battery Samsung/LG 48V 17.5Ah -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
One Size
154cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum frame
Suspension Fork
WB800-HLO-20" 28.6*25.4*270mm lockout & preload adjustable
Rear Shock
Dual coil spring suspension 290mm
Drivetrain
Rear Derailleur
Shimano altus M310 7 speed
Cassette
Shimano MF-TZ500-7 14-28T
Crank
Crank arm: 4-jaw L/R forged alloy 170mm | Chain ring: 46T
Chain
KMC Z8.3-EPT 120L
Pedals
Aluminum pedal
Wheels
Rims
Front: Aluminum integrated wheel, Rear: Aluminum integrated wheel
Tires
Kenda K1188 Krusade 20x4.0
Brakes
Brakes
Front: Tektro ARIES MD-M300 mechanical disc brakes, Rear: Tektro ARIES MD-M300 mechanical disc brakes
Brake Levers
Aluminum alloy comfort grip levers with motor cutoff switch
Cockpit
Stem
MA-5040 28.6*31.8mm
Handlebar
HB-6001 22.2*31.8*710mm
Headset
Neco A16M 44*44*30
Seat
Saddle
Himwiay saddle
Motor & Battery
Motor
750W brushless gear motor
Battery
Samsung/LG 48V 17.5Ah
Charger
US standard 2.0 A smart charger
Fit data
Geometry
