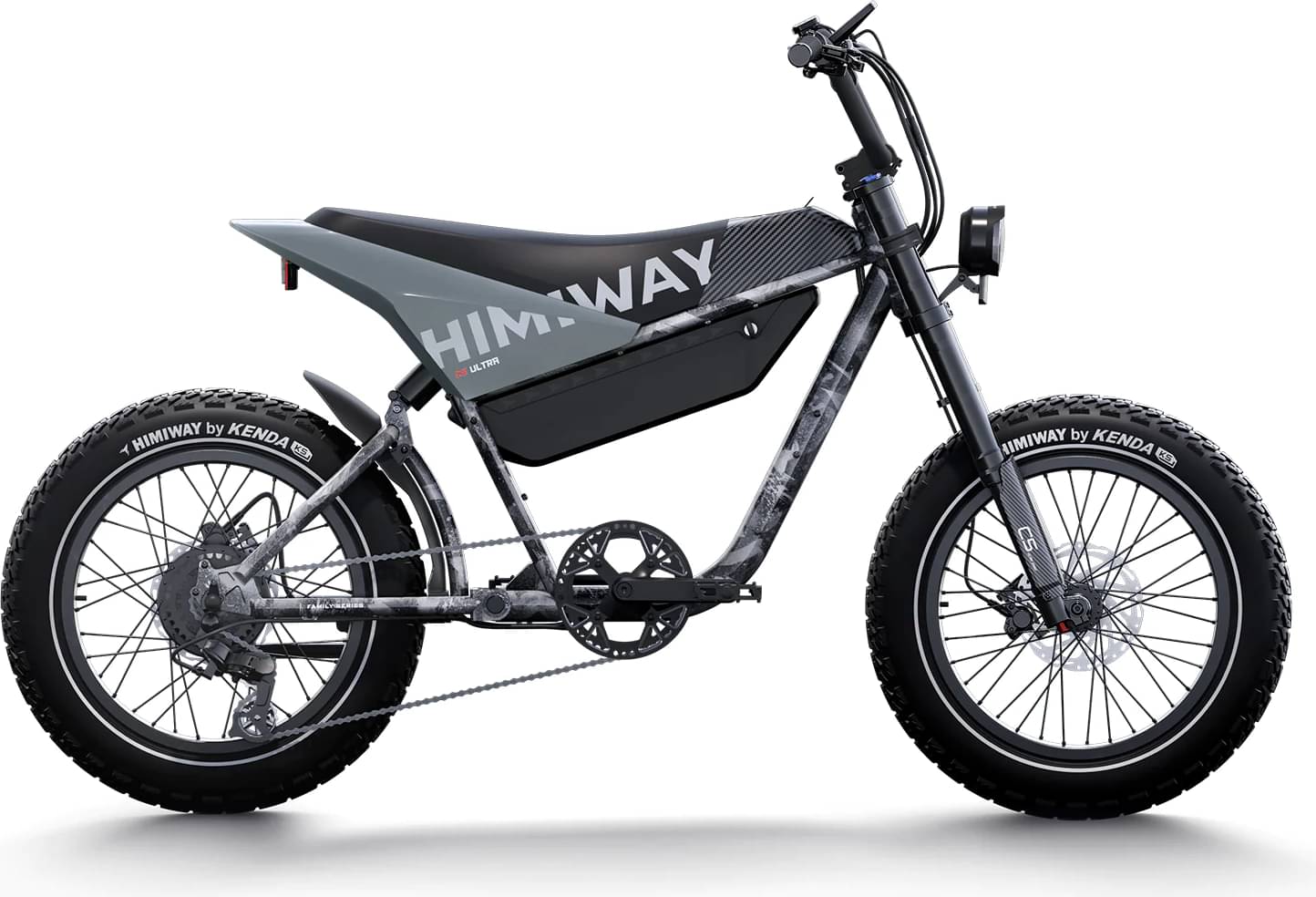

Himiway Motor C5 2024
2024 E-bike
Estimate price |
2,299$
Weight | 39.92 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Travel Front 140mm -
Travel Rear 47mm -
Groupset Altus -
Suspension Full -
Motor 750W hub-drive -
Battery Samsung/LG 48V 20Ah -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum frame
Suspension Fork
KKE R150S coil spring fork compression | Rebound adjustable 140mm travel 15*150mm axle
Rear Shock
EXA A5-RE 180*47mm
Drivetrain
Rear Derailleur
Shimano altus M310 7 speed
Cassette
Shimano MF-TZ500-7 14-28T
Crank
44T BCD104 6061-T6 145mm
Chain
KMC Z8.3 EPT 130L
Pedals
Aluminum pedal
Wheels
Rims
Front: "Rim: MD-147 20*4.0""*36H*12G A/V | Spoke: 12G 171mm/173mm | Hub: MB016F-92-T 15*135MM 12G*36H", Rear: Rim: MD-147 20*4.0""*36H*12G A/V | Spoke: 12G 126mm/127mm Hub: 48v 750w | Himiway Hub Motor
Tires
Kenda X Himiway 20*4.0
Brakes
Brakes
Hydraulic
Cockpit
Stem
3D forged alloy Ext:40mm
Handlebar
YC-B086 22.2*31.8*720mm
Headset
Neco H114 28.6*44*30
Seat
Saddle
Extended seat
Seatpost
/
Motor & Battery
Motor
750W brushless gear motor
Battery
Samsung/LG 48V 20Ah
Charger
US standard 3.0 A smart charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Wheels | 20" |
